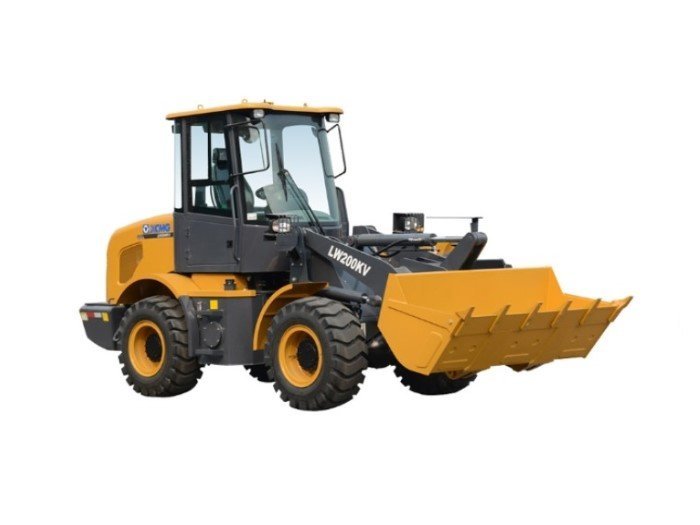

XCMG Official 2 ton mini front end loader LW200KV Chinese tractor front loader.
- The model features a long wheelbase (2300mm) design to adapt to all types of overweight conditions, leading the industry in stability.
- Digging force (LW200KV digging force ≥58kN), strong breaking force, light weight of various materials.
- Fast and efficient, driving speed up to 28km / h, the industry’s best.
- People-oriented design ensures safety, reduces fatigue and creates an excellent operating environment for you.
- Can be configured hydraulic pilot, FOPS and ROPS cab, air conditioning, audio, etc., comfortable operation, driving safety.
- International small package mainstream design, large arc cab glass, streamlined hood, fender, in line with the aesthetic appearance of high-end users.
- Engineering version of the small loader main engine, the national III emissions. The horsepower is strong and the torque reserve coefficient is large. It can meet the instantaneous overload requirements during the construction process and fully provide the power required for heavy-duty and heavy-duty operations.
XCMG front loader LW200KV Specification
| Description | Specification | Unit | |
| Rated operating load | 2000 | kg | |
| Bucket capacity | 1 | m³ | |
| Machine weight | 6400 | kg | |
| Dump clearance at maximum lift | 2580 | mm | |
| Reach at maximum lift | 960 | mm | |
| Wheel base | 2300 | mm | |
| Tread | 1490 | mm | |
| Max. breakout force | 56 | Kn | |
| Max. horse power | 45 | Kn | |
| Hydraulic cycle time-raise | 5 | s | |
| Total hydraulic cycle time | 9 | s | |
| Min. circle radius over outside bucket | 5100 | mm | |
| Min. turning radius over tyres | 4450 | mm | |
| Articulation angle | 35 | ° | |
| Gradeability | 28 | ° | |
| Tyre size | 16/70-20 | ||
| Overall machine dimension LxWxH | 5950x1960x2550 | mm | |
| Engine Model | LR4B3ZU-G73X3QR-U3 | ||
| Rated power/Speed | 66.2/2400 | Kw/rpm | |
| Travel speed | I-gear(F/R) | 10 | km/h |
| II-gear(F/R) | 28 | km/h | |
