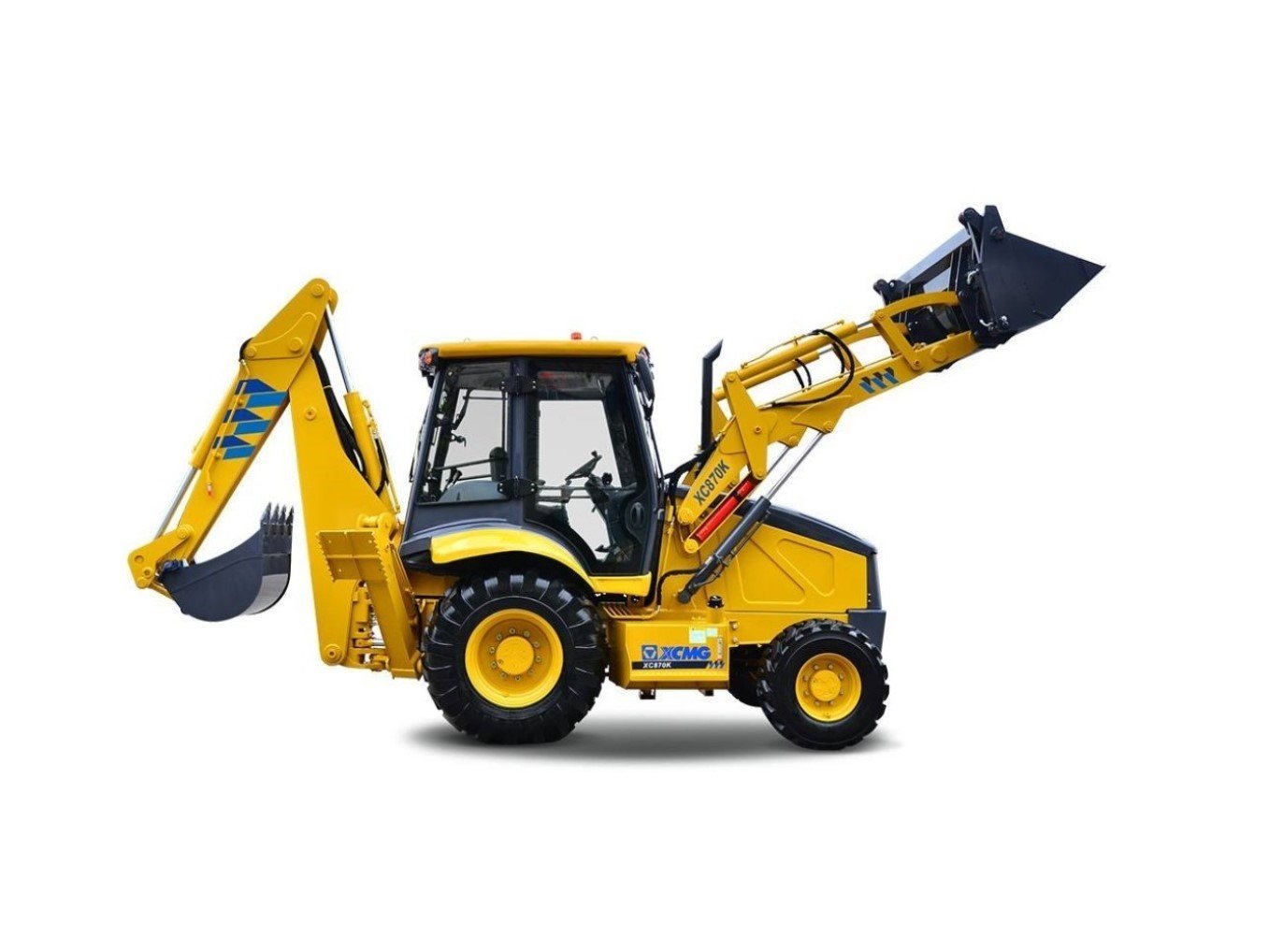

XCMG Backhoe Excavator Loader Machine 2.5ton with Hydraulic Hammer.
XCMG XT870 backhoe excavator loader machine is one kind of multifunctional construction machinery that integrates the digging and loading and is applicable for multiple operations, including digging, loadering, handing, and land grading.
Advantages:
1. Loading end the eight-link structure, breakout force, unloading, high efficiency.
2. excavating end use in the “H” type out-rigger, beautiful appearance, strong bearing capacity, with high stability.
3. Application of stable and reliable high-speed intelligent technology off the bridge, drive, energy efficient.
4. FOPS & ROPS cab, efficient air conditioning, driving safety, operating comfort.
5. Configurable independent cooling system and ultra-low temperature cold start system is more suitable for harsh environment operations.
Optional parts:
* 4 in 1 bucket, hydraulic hammer, clamping device, it can also be fitted with the attachments, including manhole cover planer, snow shovel, to meet multiple working needs.
XCMG XT870 Backhoe loader specifications
| Chassis type | integrated | Unit |
| Total weight | 8100 | kg |
| Overall dimensions (LxWxH) | 7400*2350*3450 | mm |
| Max. travel speed | 40 | Km/h |
| Max. gradient | 20 | ° |
| Wheel base | 2180 | mm |
| Turning radius | 3350 | mm |
| Max. traction force | 70 | kN |
| Power | 70 | Kw |
| Bucket capacity | 1 | m³ |
| Rated load | 2500 | kg |
| Max. breakout | 66 | kN |
| Max. discharge height | 2770 | mm |
| Max. discharge distance | 705 | mm |
| Boom lifting time | ≤5 | s |
| Total cycle time | ≤10 | s |
| System pressure | 24 | Mpa |
| Bucket capacity | 0.3 | m³ |
| Max. digging radius | 5500 | mm |
| Max. digging depth | 4250 | mm |
| Max. digging force | 51 | kN |
| System pressure | 24 | Mpa |
