We provide the XCMG brand Wheel loader,Competitive price and Fast delivery.

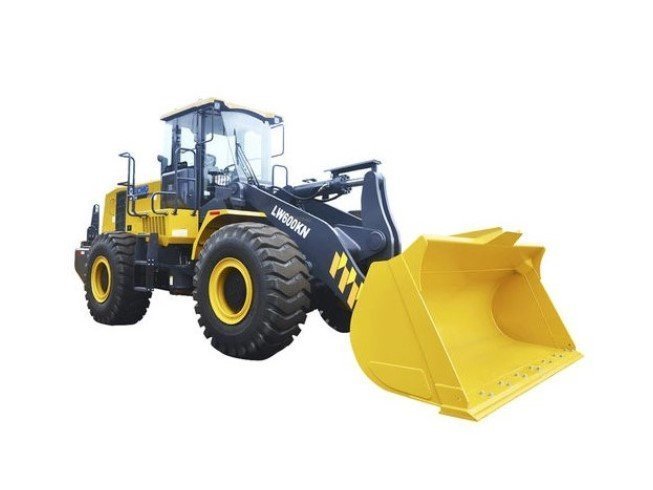

LW600KN front loader for sale | XCMG 178kw 4.5m3 6 ton wheel loader price
| Description | Unit | Parameter value |
| Rated operating load | kg | 6000 |
| Bucket capacity | m³ | 3.0～4.5 |
| Machine weight | kg | 20000±300 |
| Dump clearance at maximum lift | mm | 3170～3750 |
| Reach at maximum lift | mm | 1200～1360 |
| Wheel base | mm | 3350 |
| Tread | mm | 2265 |
| Max.breakout force | kN | 205 |
| Max.horse power | kN | 174 |
| Hydraulic cycle time-raise | s | ≤5.9 |
| Total hydraulic cycle time | s | ≤10.9 |
| Min. turning radius over tyres | mm | 6005 |
| Articulation angle | ° | 38 |
| Gradeability | ° | 28 |
| Tyre size | 23.5-25 | |
| Overall machine dimension L×W×H | mm | 8505×3220×3515 |
| Model | SC11CB240.1G2B | |
| Rated Power | kW | 178 |
| Fuel Tank | L | 250 |
| Hydraulic Tank | L | 210 |
1.The super-strong heavy-duty structural parts, enhanced drive system, andglobally supplied critical parts can carry the torsion and impact loads underdiversified working conditions.
2.The high energy-conservation and high-efficiency hydraulic system is applied to realize higher fuel utilization efficiencyand more powerful working capacity.
3.The strong breakout force of 205kn ensure that the machine could adapt to various tough condition. The high-efficiency linkage system features fast motions, high breakoutforce, and powerful lifting capacity.
4.Heavy load for the rocky condition; the working device and front and rear frame feature thick board of high strength, reasonable distribution and strong carrying capacity.
5.The large rock bucket with capacity of 3-4.5m³ is improved in terms of the work efficiency and adaptation. The cutting blade and bucket edge are equipped with protection device, featuring excellent abrasion resistance and shock resistance.
