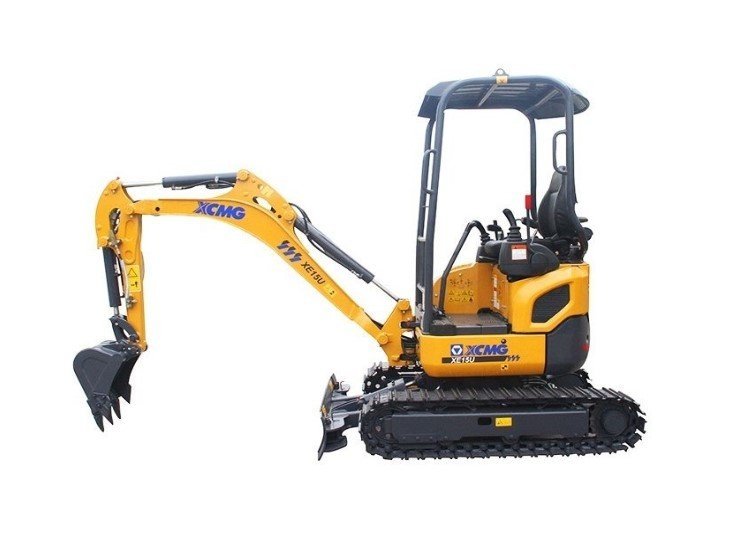

XCMG mini digger for garden XE15U has characteristics of strong power, energy conservation and environmental protection, high reliability and excellent performance.
Ecological and economical:
1, Engine compliant with Euro stage V Emission Standard
2, The excellent matching of hydraulic system and engine is more powerful and fuel saving
Multiple applications:
1, The stretchable undercarriage can ensure the stability, improve the loading perfor mance and meanwhile enhance the passing ability
2, Tailless design and short slewing radius can achieve flexible operation in confined space Multiple additional configurations meet with different operating requirements
Convenient maintenance:
1, Easymaintenance design,open the engine hood for no dead angle maintenance
Excellent after-sales service:
1, Global after-sales service system and quick response mechanism
2, Real-time technical consultation and maintenance
Improved durability:
1, Four point support cab,with piping and wiring harness built-in Strengthened boom and arm,stress dispersing
2, Upgrade undercarriage to improve load bearing performance
| Description | Unit | Parameter value | |
| Operating weight | Kg | 1795 | |
| Bucket capacity | m3 | 0.04 | |
| Engine | Model | / | D782-E3B-CBH-1 |
| No. of cylinders | / | 3 | |
| Output power | kw/rpm | 9.8/2300 | |
| torque/speed | N.m | 44.5/1800 | |
| Displacement | L | 0.778 | |
| Hydraulic system | Travel speed(H/L) | km/h | 4.3/2.2 |
| Gradeability | / | 30% | |
| Pressure of prime valve | MPa | 22 | |
| Pressure of travel system | MPa | 22 | |
| Pressure of swing system | MPa | 11 | |
| Pressure of pilot system | MPa | 3.9 | |
| Oil Capacity | Fuel tank capacity | L | 18 |
| Hydraulic tank capacity | L | 17 | |
| Engine oil capacity | L | 3.8 | |
| Appearance size | Overall length | mm | 3560 |
| Overall width | mm | 1240 | |
| Overall height | mm | 2348 | |
| Width of platform | mm | 990 | |
| Overall width of chassis | mm | 990/1240 | |
| Width of crawler | mm | 230 | |
| Working scope | Min. tail swing radius | mm | 620 |
| Max. digging height | mm | 3475 | |
| Max. dumping height | mm | 2415 | |
| Max. digging depth | mm | 2290 | |
| Standard | Length of boom | mm | 1690 |
| Length of arm | mm | 1100 | |
| Bucket capacity | m3 | 0.04 | |
