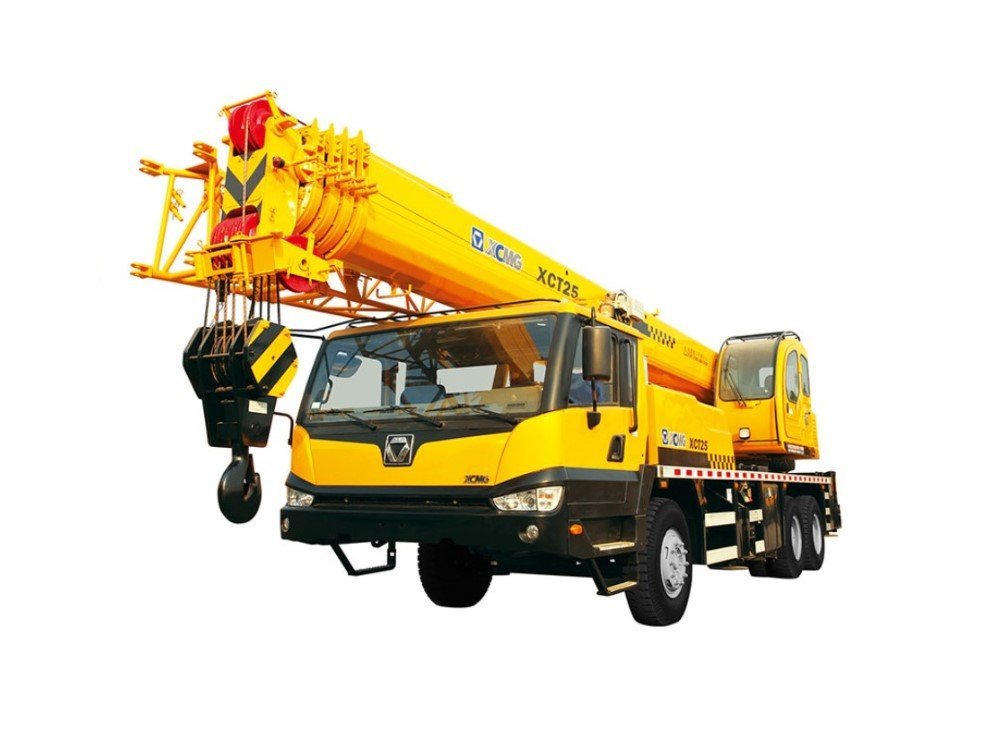

Construction crane for sale！XCT25 – XCMG manufacturer 25 ton mobile crane XCT25.
1. 4-section boom of 34 m with U-type profile is adopted; the max. lifting load is 25 t; the max. working radius is 30 m; the performance takes the lead comprehensively. the max. lifting height is 43.2m;
2. Various adaptation configurations for different working conditions meet the requirements of projects such as oil fields and municipal constructions.
3. The entire machine is designed to endure high temperature, it is allowed to work in ambient temperature up to 60℃. With dust-proof parts equipped, the crane is applicable to applications in deserts.
XCMG Construction MachineryXCMG 25 ton Truck Crane Specification
| Category | Item | Unit | Parameter | |
| Main performance | Max. total rated lifing capacity | t | 25 | |
| Min. rated working radius | m | 3 | ||
| Turning radius at turntable tail | Counterweight | mm | 3425 | |
| Max. load moment | Base boom | kN.m | 938 | |
| Fully extended boom | kN.m | 623 | ||
| Fully extended boom + Jib | kN.m | 370 | ||
| Outrigger span | Longitudinal | m | 5.23 | |
| Lateral | m | 6.4 | ||
| Hoist height | Base boom | m | 10.9 | |
| Fully extended boom | m | 34.5 | ||
| Fully cxtended boom + Jib | m | 43.2 | ||
| Base boom | Boom length | m | 10.6 | |
| Fully extended boom | m | 34 | ||
| Fully extended boom + Jib | m | 42.3 | ||
| Jib offset angle | 。 | 0, 15, 30 | ||
| Dimensions | Dimensions (length x width x height) | mm | 12535*2550*3420 | |
| Wheel base | mm | 4425+1350 | ||
| Track ( Front/ Rear ) | mm | 2027/1834 | ||
| Front/ Rear overhang | mm | 2442/2420 | ||
| Front Rear extension | mm | 1528/370 | ||
| Weight | Total vehicle mass in travel configuration | kg | 27500 | |
| Power | Engine model | SC7H260Q3 | ||
| Rated power/rpm | kW/(r/min) | 192/2200 | ||
| Max. net power/rpm | kW/(r/min) | 188/2200 | ||
| Max. output torque/rpm | N.m/(t/min) | 1000/1400 |
