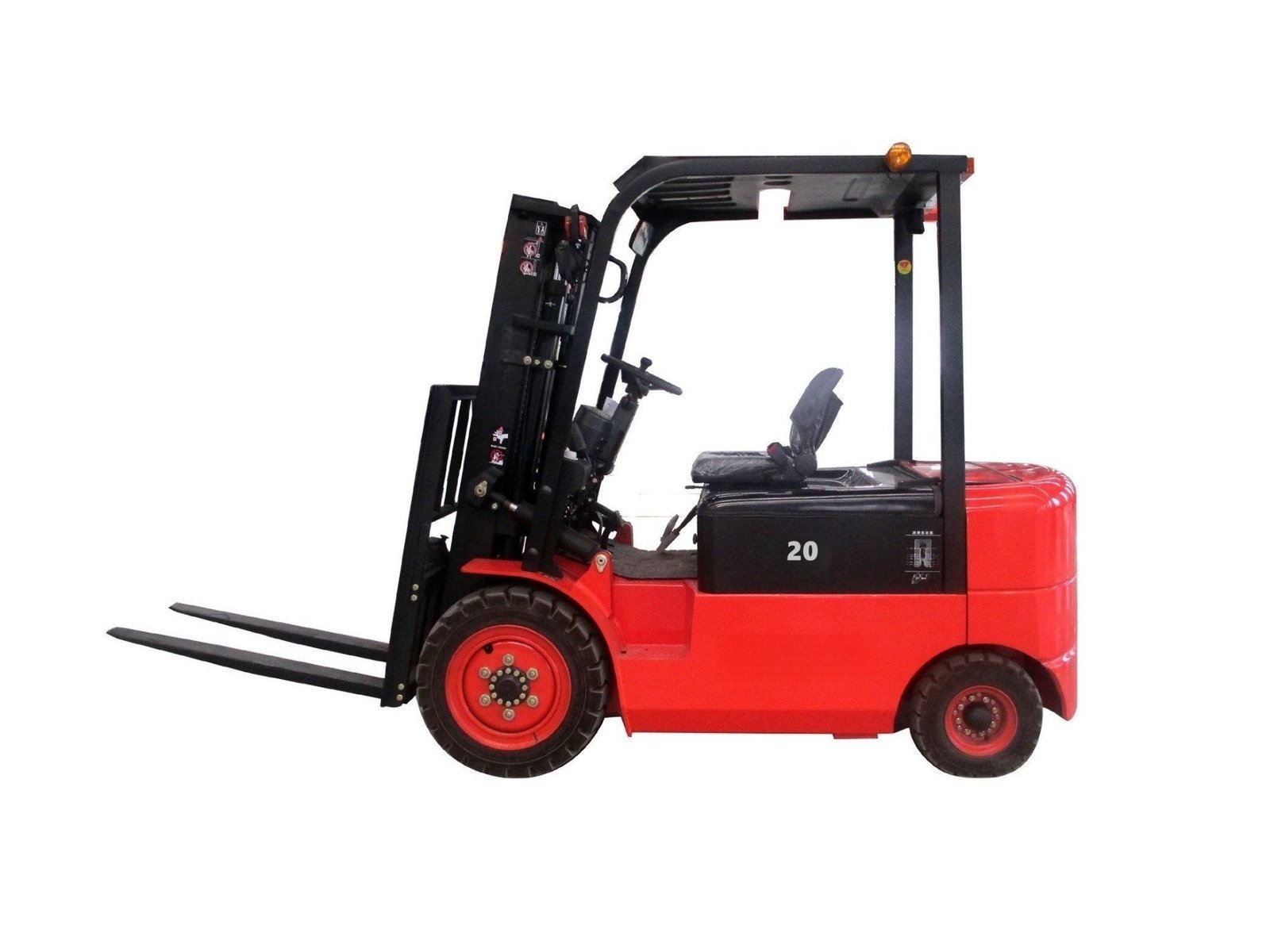

Our Small Electric Forklift – a compact, 2-ton powerhouse for efficient and eco-friendly material handling. Maneuver tight spaces with ease, enhance productivity, and enjoy quiet, emission-free operation.
Don’t miss out on our Forklift Equipment Sale – grab the best deals on top-quality forklifts and boost your material handling capabilities!
Standard configuration of wide view mast, compact structure of mast and tube pulley block;
Overhead guard with large arc and grid tray with optimized angle enlarge driver’s upper view.100% enlarged accelerator panel and 40% enlarged brake pedal improve driver’s foot operating comfort;
Ratchet hand brake has different brake force on slope and ground, reducing driver’s fatigue.
The use of electric truck dedicated tire with pattern saves more than 10% of the energy during travelling;
The professional matching design of the components prolongs the battery working time about 10%.
2 Ton Electric Forklift Specification
| General | 1 | Model | CPD20J | |
| 2 | Rated capacity | kg | 2000 | |
| 3 | Load center | mm | 500 | |
| 4 | Power type | Battery | ||
| Dimensions | 5 | Lifting height | mm | 3000 |
| 6 | Free lifting height | mm | 60 | |
| 7 | Turning radius | mm | 2200 | |
| 8 | Overall length | mm | 3350 | |
| 9 | Overall width | mm | 1160 | |
| 10 | Overall height (mast lowered) |
mm | 2130 | |
| 11 | Overall height (mast raised) |
mm | 4040 | |
| 12 | Overall height (overhead guard) |
mm | 2130 | |
| 13 | Fork length | mm | 1070 | |
| 14 | Fork width | mm | 100 | |
| 15 | Fork thickness | mm | 40 | |
| Performance | 16 | Max. driving speed (with/without load) |
km/h | 12.5/14 |
| 17 | Max. lifting speed (with load) |
mm/s | 250 | |
| 18 | Max. traction (with load) |
kn | 10 | |
| 19 | Gradeability (with load) |
% | 15 | |
| 20 | Tilting angles (forward/backward) |
° | 6/12 | |
| 21 | Service weight | kg | 3950 | |
| Motor | 22 | Traction motor | XQ-8 | |
| 23 | Lifting motor | XQD-10-3S | ||
| Battery | 24 | Battery type | D-600(700) | |
| 25 | Battery voltage/capacity | V/Ah | 48/600(700) | |
| Wheel | 26 | Front overhang | mm | 451 |
| 27 | Wheel base | mm | 1550 | |
| 28 | Front tread | mm | 970 | |
| 29 | Rear tread | mm | 950 | |
| 30 | Front tire | 7.00-12 | ||
| 31 | Rear tire | 18×7-8 |
