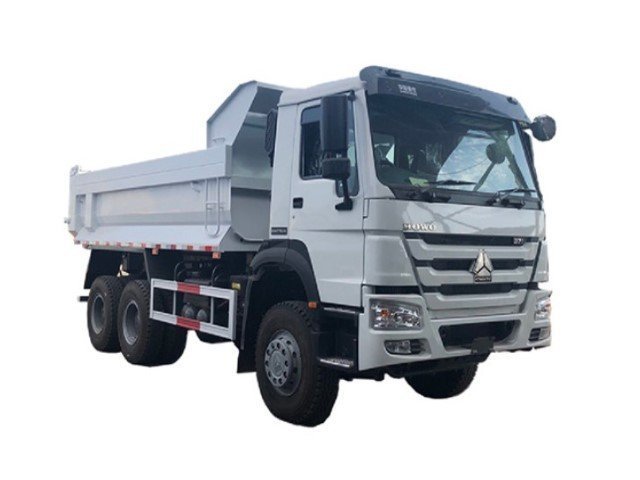

SINOTRUK HOWO U shape dump truck body is designed to optimize payload capacity using innovative solutions. The half-round shape allows for optimal flow of bulk material, and the sloped front wall and half-octagonal construction prevent material from getting stuck in the corners. This design also helps to distribute the weight of the material evenly and improves driving performance.
| SPECIFICATION | |
| Engine | Make: SINOTRUK
Disel:4-Stroke direct injection diesel engine Engine model: Euro II, WEICHAI BRAND WP12.400E201 6-cylinder in-line with water cooling, turbo-charging and intercooling Maximum output: 371hp at 2000 rpm Maximum torque: 1500Nm at 1100-1600 rpm Displacement:9.726L Bore:126mm Stroke:130mm Compression ratio:17.5:1 Twin cylinder air compressor |
| Clutch | Single-plate dry coil-spring clutch,
diameter 430mm, hydraulically operating with air assistance. |
| Transmission | HW19710, 10 forward, 2 reverse, manual. Ratio: 14.28, 10.62, 7.87, 5.88, 4.38, 3.27, 2.43, 1.8, 1.34, 1. R13.91, R3.18. |
| Propeller Shaft | Double universal joint propeller shaft with gear-shaped coupling flange |
| Front Axle | Steering with double T-cross section beam |
| Rear Axles | Pressed axle housing, central single reduction with planetary wheel reduction and with differential lock |
| Chassis | Frame: U-profile parallel ladder frame with section of 300×80×8mm and reinforced subframe, all cold riveted cross members Aluminum fuel tank: 300 L capacity with locking fuel cap, fitted to the off side of the chassis |
| Steering | ZF power steering, hydraulic steering with power assistance. |
| Braking System | Service brake: dual circuit compressed air brake Parking brake(emergency brake):spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust valve brake ABS is optional. |
| Tyres | 12R22.5/11.00R20/12.00R20/13R22.5/12.00R24 |
| Cab | HW76 Cab, one berth, right hand drive, air condition, all steel forward control, 55°hydraulically tiltable to the front, 2arm windscreen wiper system with three speeds, laminated windscreen with casted in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable codriver’s seat, with heating and ventilating system, exterior sun visor, adjustable roof flap, stereo radio/cassette recorder, safety belts,adjustable steering wheel, air horn, with 4point support fully floating suspension + shock absorbers |
| Electrical System | Operating voltage:24V, negative grounded Starter:24V.7.5Kw Alternator:3-phase,28V,1500W Batteries:2*12V,165Ah/180Ah Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light, backing alarm |
| Dimensions
(mm) |
Wheel base 3825+1350 Front wheel track 2022 Rear wheel track 1830 Front overhang 1500 Rear overhang 1870 Approach angle(°) 20 Departure angel(°) 24 Overall length 8545 Overall width 2500 Overall height 3450 |
| Cargo box | Dimension 5800 x 2300 x 1500mm Lifting type front lifting, rear tippingLifting cylinder HYVA Brand |
| Weight in kg | Dead weight 12300 Front axle loading capacity 9000 Rear axle loading capacity 16000*2（double axle） |
| Performance | Maximum driving speed(km/h) 80 |
