SHANTUI BRADN SD26 hexahedral cab provides super-large interior space and broad vision and the ROPS/FOPS can be installed depending on specific needs to ensure high safety and reliability.
The intelligent display and control terminal and the A/C and heating system are installed to provide more abundant personalized driving/riding experience and enable you to understand system status at any time, featuring high intelligence and convenience.
Also provide SHANTUI SPARE PARTS

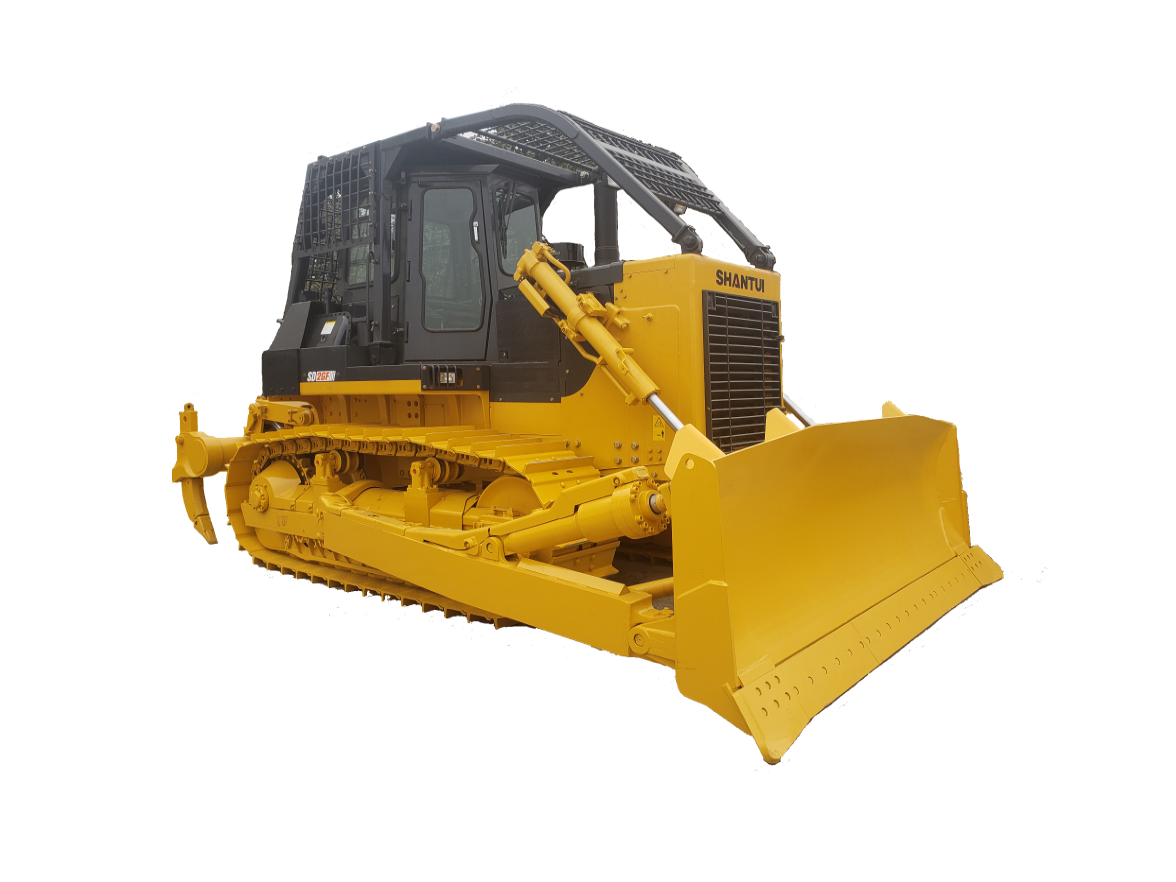

SHANTUI Brand Bulldozer SD26/260hp Dozer specification
| Parameter name | SD26 | SD26E(LONG TRACK) | SD26F(FOREST LOGGING) | SD26S(LGP) |
| Performance parameters | ||||
| Operating weight (Kg) | 23400 | 24600 | 24700 | 25700 |
| Ground pressure (kPa) | 77 | 72 | 66 | 41 |
| Engine | ||||
| Engine model | WEICHAI WP12 | WEICHAI WP12 | WEICHAI WP12 | WEICHAI WP12 |
| Rated power/rated speed (kW/rpm) | 206/1800 | 206/1800 | 206/1800 | 206/1800 |
| Overall dimensions | ||||
| Overall dimensions of machine (mm) | 5495*3725*3402 | 5495*3725*3402 | 5495*3725*3402 | 6225*4365*3402 |
| Driving performance | ||||
| Forward speed (km/h) | F1: 0-3.8 F2:0-6.8 F3:0-11.7 | F1: 0-3.8 F2:0-6.8 F3:0-11.7 | F1: 0-3.8 F2:0-6.8 F3:0-11.7 | F1: 0-3.8 F2:0-6.8 F3:0-11.7 |
| Reversing speed (km/h) | R1:0-4.5 R2:0-8.1 R3:0-13.9 | R1:0-4.5 R2:0-8.1 R3:0-13.9 | R1:0-4.5 R2:0-8.1 R3:0-13.9 | R1:0-4.5 R2:0-8.1 R3:0-13.9 |
| Chassis System | ||||
| Center distance of track (mm) | 2000 | 2000 | 2000 | 2250 |
| Width of track shoes (mm) | 560 | 560 | 560 | 910 |
| Ground length(mm) | 2730 | 3050 | 2730 | 3480 |
| Tank capacity | ||||
| Fuel tank (L) | 450 | 450 | 450 | 450 |
| Working device | ||||
| Blade type | Straight-tilt | Straight-tilt | Straight-tilt | Straight-tilt |
| Ripper type | Single shank/3 shanks | Single shank/3 shanks | Single shank/3 shanks | —— |
| Ripping depth (mm) | 695/666 | 695/666 | 695/666 | —— |
