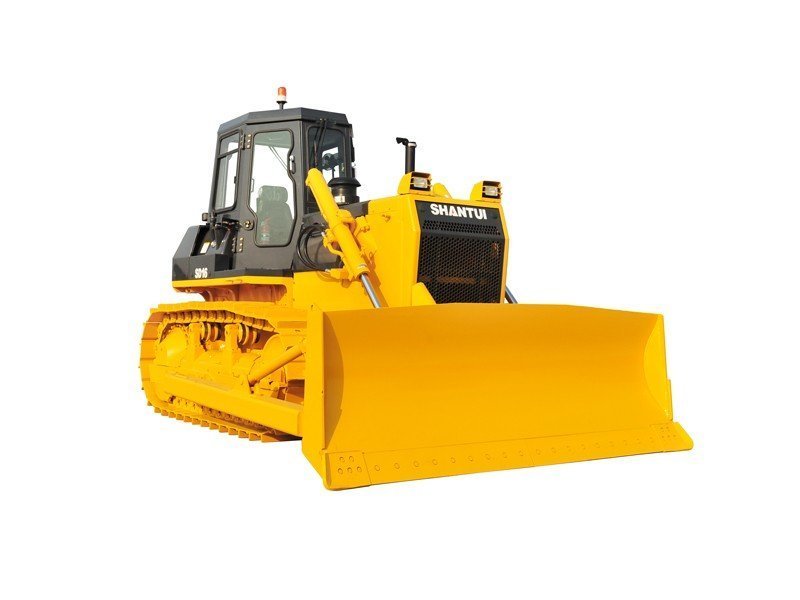

SHANTUI Bulldozer Specification
| Parameter name | SD16 (Standard version) | SD16C (Coal version) | SD16E (Extended version) | SD16L（Super-wetland version） | SD16R (Environmental sanitation version) |
| Performance parameters | |||||
| Operating weight (Kg) | 17000 | 17500 | 17346 | 18400 | 18400 |
| Ground pressure (kPa) | 58 | 50 | 55 | 25 | 25 |
| Engine | |||||
| Engine model | WD10(China-II)/WP10(China-III) | WD10(China-II)/WP10(China-III) | WD10(China-II)/WP10(China-III) | WD10(China-II)/WP10(China-III) | WD10(China-II)/WP10(China-III) |
| Rated power/rated speed (kW/rpm) | 131/1850 | 131/1850 | 131/1850 | 131/1850 | 131/1850 |
| Overall dimensions | |||||
| Overall dimensions of machine (mm) | 5140*3388*3032 | 5427*3900*3032 | 5345*3388*3032 | 5262*4150*3074 | 5262*4150*3074 |
| Driving performance | |||||
| Forward speed (km/h) | F1:0-3.29,F2:0-5.82,F3:0-9.63 | F1:0-3.29,F2:0-5.82,F3:0-9.63 | F1:0-3.29,F2:0-5.82,F3:0-9.63 | F1:0-3.29,F2:0-5.82,F3:0-9.63 | F1:0-3.29,F2:0-5.82,F3:0-9.63 |
| Reversing speed (km/h) | R1:0-4.28,R2:0-7.59,R3:0-12.53 | R1:0-4.28,R2:0-7.59,R3:0-12.53 | R1:0-4.28,R2:0-7.59,R3:0-12.53 | R1:0-4.28,R2:0-7.59,R3:0-12.53 | R1:0-4.28,R2:0-7.59,R3:0-12.53 |
| Chassis System | |||||
| Center distance of track (mm) | 1880 | 1880 | 1880 | 2300 | 2300 |
| Width of track shoes (mm) | 510/560/610 | 610 | 560/510/610 | 1100/950 | 1100/660 |
| Ground length（mm） | 2430 | 2430 | 2635 | 2935 | 2935 |
| Tank capacity | |||||
| Fuel tank (L) | 315 | 315 | 315 | 315 | 315 |
| Working device | |||||
| Blade type | Angle Blade, Straight tilting blade and U-shaped Blade | Coal blade | Angle Blade, Straight tilting blade and U-shaped Blade | Straight tilting blade | Sanitation blade |
| Digging depth (mm) | 540 | 540 | 540 | 485 | 485 |
| Ripper type | Three-tooth ripper | —— | Three-tooth ripper | —— | —— |
| Ripping depth (mm) | 570 | —— | 570 | —— | —— |
SHANTUI bull dozer machine is famous brand in the world,SD16 and SD 22 are best selling model.Contact us get best quotaiton.
