We are suppliers of SHANTUI Construction Machinery,Such as:Bulldozer,Wheel loader,Road roller,Forklift etc.
Driving/Riding Environment
The hexahedral cab provides super-large interior space and broad vision and the ROPS/FOPS can be installed depending on specific needs to ensure high safety and reliability. The electronic control hand and foot accelerators guarantee more accurate and comfortable operations.The intelligent display and control terminal and the A/C and heating system are installed to provide more abundant personalized driving/riding experience and enable you to understand system status at any time, featuring high intelligence and convenience.
Working adaptability
Shantui’s stable and reliable chassis system is applicable to diversified severe working conditions. The product features long ground length, high ground clearance, stable driving, and good trafficability. The straight tilting blade, U-blade, angle blade, coal blade, rock blade, environmental sanitation blade, ripper, and traction frame can be installed depending on specific working condition to achieve higher working adaptability. The optional LED working amps improve the illumination capability during nighttime operations to achieve higher safety and reliability.
Easy maintenances
The structural parts inherit the excellent quality of Shantui’s mature products;The electric harnesses adopt corrugated pipes for protection and deconcentrators for branching, featuring high protection grade.The openable large-space side hoods make the repairs and maintenance easier.The fuel filter element and the air filter are designed on one same side to achieve one-stop;The curves of drive system and engine are perfectly matched to achieve more extensive high-efficiency zone and higher transmission efficiency.Shantui’s self-made drive system features stable performance and reliable quality and has been long proved by the market.

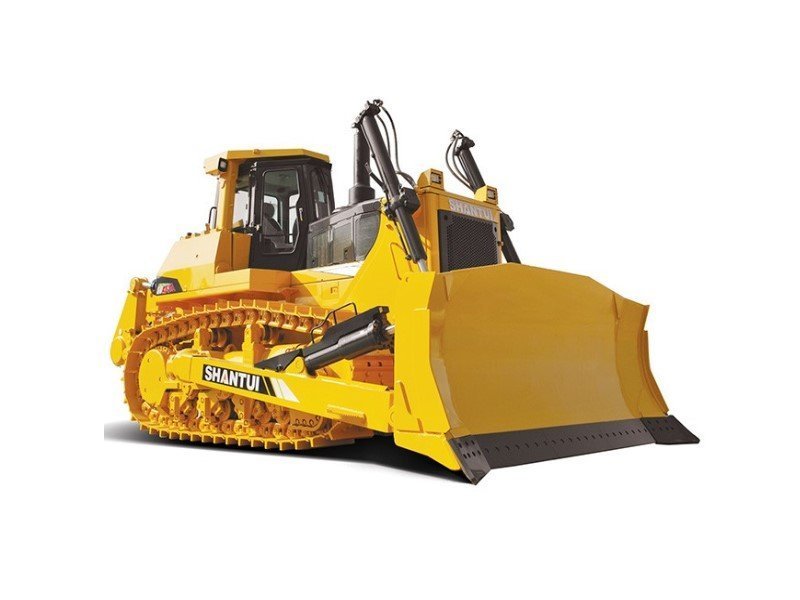

SHANTUI SD42 Specification
|
Engine
|
Model & type
|
A19-C525 , In-line, water-cooled, 4-cycle, turbo charged, intercooled, direct injection
|
||
|
Horsepower
|
Gross power: 340/450/2000 kW/HP/rpm //
Net power: 313/450/2000 kW/HP/rpm |
|||
|
Number of cylinders
|
6—150 x 150 mm (bore x stroke)
|
|||
|
Piston displacement
|
15.9 L
|
|||
|
Operating weight
|
54.5 t (Ripper included)
|
|||
|
Power
transmission system |
Torque converter
|
3-element, 1 stage, 1 phase
|
||
|
Transmission
|
Planetary gear, multi-disc clutch,hydraulically connected, forced lubrication
|
|||
|
Main drive
|
Spiral bevel gear, splash lubrication
|
|||
|
Steering clutch
|
Wet, multi-disc, spring loaded,hydraulically separated, hydraulic control
|
|||
|
Steering brake
|
Wet, floating band, hydraulic control
|
|||
|
Final drive
|
1-stage spur gear,1-stage planetary speed reduction, splash lubrication
|
|||
|
Travel speed
|
Gear
|
1st
|
2nd
|
3rd
|
|
Forward
|
0~3.7 km/h
|
0~6.8 km/h
|
0~12.2 km/h
|
|
|
Reverse
|
0~4.4 km/h
|
0~8.2 km/h
|
0~14.8 km/h
|
|
|
Undercarriage
system |
Type
|
K type elastic suspended structure,connection with frame pivot
|
||
|
Gradeability
|
30°
|
|||
|
Stability
|
35°
|
|||
|
Track gauge
|
2260 mm
|
|||
|
Ground length
|
3560 mm
|
|||
|
Number of carrier rollers
|
2 (each side)
|
|||
|
Number of track rollers
|
7 (each side)
|
|||
|
Number of track shoes
|
41 (each side)
|
|||
|
Track type
|
Link master, seal, lubricated type
|
|||
|
Width of track shoes
|
610 mm
|
|||
|
Pitch
|
260.35 mm
|
|||
|
Hydraulic
System |
Maximum pressure
|
14 MPa
|
||
|
Pump type
|
Gear pump
|
|||
|
Discharge
|
243 L/min
|
|||
|
Bore of working
cylinder × no. |
110 mm × 2
|
|||
|
Blade
|
Blade Type
|
Semi-U blade
|
||
|
Dozing capacity
|
16 m3
|
|||
|
Blade width
|
4314 x 1875 mm
|
|||
|
Max. drop below
ground of blade |
700 mm
|
|||
|
Maximum lift height
|
1545 mm
|
|||
|
Riipper
(Optional) |
Ripper type
|
Single-shank ripper
|
||
|
Ripping depth of ripper
|
1400 mm
|
|||
|
Lifting height of ripper
|
1130 mm
|
|||
