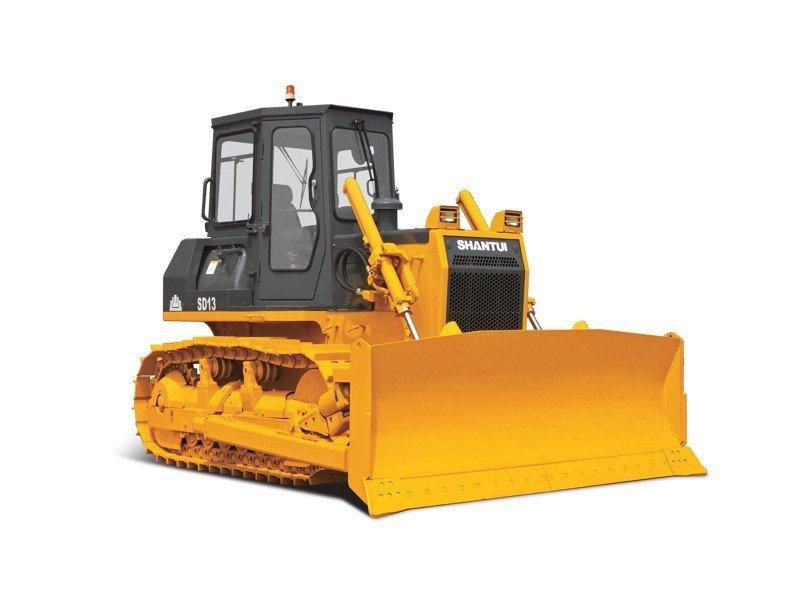

- SHANTUI SD13 bulldozer has a module design for easy and convenient disassembly and repair;
- Adopting Europe III emission standards, the bulldozer is equipped with an air to air inter-cooling electrical control engine, featuring strong power and low oil consumption;
- Equipped with a hydrostatic torque converter with locking function, the bulldozer features excellent driving efficiency, which is beneficial in various working conditions;
- SD13 brake system uses a normally closed type, braking after the engine stops for high safety;
- SD13 working device uses pilot controls for excellent sensitivity and performance, making it easy to operate;
- SHANTUI SD13 dozer is equipped with a low noise cab with ROPS/FOPS, which meets international safety standard, has excellent sealing performance, and indoor noise reaching international advanced levels;
- Large structural key parts are reinforced in design, improving reliability;
- Suspension travel system allows the bulldozer to function on various complicated road conditions, using effective vibration damping to improve overall comfort and reliability of the chassis;
- Equipped with large, colorful display screen; bulldozer can monitor itself.
SHANTUI bulldozer SD13 specification
|
ITEM
|
UNIT
|
SD13
|
|
L×W×H (Ripper not included)
|
mm
|
4492×3185×2950
|
|
Operating weight (Ripper not included)
|
t
|
13.7
|
|
Engine
|
–
|
SC8D143G2B1
6CTA8.3-C145 |
|
Rated power
|
kW/rpm
|
95.5/1900 108/1900
|
|
Gradeability
|
°
|
30
|
|
Blade type
|
–
|
Straight tilt blade Angle blade
|
|
Blade width
|
mm
|
Straight tilt blade 3185×1090 Angle blade 3475×915
|
|
Dozing capacity
|
m3
|
Straight tilt blade 3.7 Angle blade 3.4
|
|
Ma× drop below ground of blade
|
mm
|
590
|
|
Lift height of blade
|
mm
|
930
|
|
Ripper type
|
–
|
Three-shank ripper
|
|
Ripping depth of ripper
|
mm
|
467
|
|
Lifting height of ripper
|
mm
|
559
|
|
Number of carriers (each side)
|
–
|
2
|
|
Number of track rollers (each side)
|
–
|
6
|
|
Number of track shoes (each side)
|
–
|
38
|
|
Width of track shoe
|
mm
|
460
|
|
Track gauge
|
mm
|
1880
|
|
Ground length and ground pressure
|
mm/MPa
|
2365-0.063
|
|
Pitch
|
mm
|
190
|
|
Forward speed
|
km/h
|
0–3.2
|
|
0–5.9
|
||
|
0–9.8
|
||
|
Reverse speed
|
km/h
|
0–3.9
|
|
0–7.1
|
