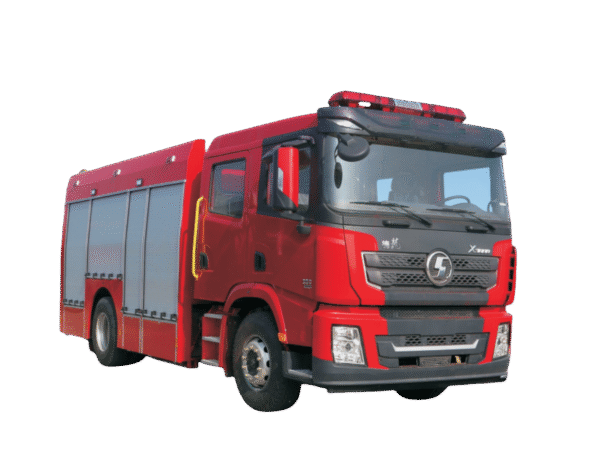

SHACMAN X3000 340HP 4×4 water and foam fire fighting truck

The SHACMAN X3000 340HP 4×4 water and foam fire fighting truck is a high-performance vehicle designed specifically for firefighting missions. It combines powerful performance, a spacious cab, advanced firefighting equipment, and a reliable chassis configuration, enabling it to efficiently carry out fire extinguishing and rescue tasks in various complex environments.

Product Overview

Model: SHACMAN X3000 340HP 4×4 water and foam fire fighting truck

Purpose: Primarily used for fire suppression, capable of simultaneous water and foam firefighting operations. Applicable to a wide range of fire scenarios, including but not limited to building fires, forest fires, and oil fires.

Chassis Configuration

Brand and Model: Utilizes the SHACMAN brand with a chassis model of SX1185, ensuring vehicle stability and reliability. Key words: SHACMAN, chassis stability.

Dimensions and Weight: The overall vehicle dimensions are 9100×2550×3600mm, and the curb weight is 8600kg. The reasonable design provides good maneuverability while maintaining firefighting capabilities. Keywords: vehicle dimensions, curb weight, maneuverability.

Drive Type and Cab: Features a 4×4 drive mode and left-hand drive, suitable for various road conditions. The cab can accommodate 2 + 4 persons and is equipped with air conditioning, offering a comfortable working environment for the occupants. Keywords: 4×4 drive, left-hand drive, cab capacity, air conditioning.

Engine Parameters: Powered by a Weichai power Co.,Ltd WP10.340E22 engine with a power output of 340HP, a displacement of 9726ml, using diesel fuel, and meeting Euro 2 emission standards. It provides strong power while being environmentally friendly and energy-efficient. Keywords: Weichai engine, power output, displacement, emission standards.

Transmission System: Equipped with a Manual Fast brand 10JSD180 manual transmission, with 10 forward gears and 2 reverse gears, offering flexible operation to meet different working conditions. Keywords: Manual Fast transmission, gear ratios.

Wheelbase, Axle Load, and Tires: The wheelbase is 5000mm, with a front axle load capacity of 9 tons and a rear axle load capacity of 16 tons. The tires are 12.00R20 radial tires, with a quantity of 6 + 1, and a maximum speed of 85km/h, ensuring stable driving and load-bearing capacity. Keywords: wheelbase, axle load, tire specifications, maximum speed.

Superstructure Configuration

Tank Capacity and Material: The water tank has a capacity of 5000L, made of Q235 material with a plate thickness of 4mm and a manhole diameter of 450mm. The foam tank has a capacity of 1000L, made of stainless steel with a plate thickness of 4mm, ensuring the tanks are sturdy and durable and can effectively store firefighting media. Keywords: water tank, foam tank, tank capacity, material quality.

Fire Pump and PTO: Comes with a model 6 fire pump, with a flow rate of 40L/s @ 1.0MPa. The power take-off (PTO) is a propeller drive attached to the pump with couplings, and the PTO lever is located in the driver’s cabin for convenient control. Keywords: fire pump, flow rate, PTO, pump control.

Fire Monitor Parameters: The PL48 model fire monitor has a flow rate of 48L/s, a range of ≥50m, a horizontal rotation range of 360 degrees, and a vertical elevation range of +70 degrees to -30 degrees, enabling accurate coverage of the fire area and effective fire extinguishing. Keywords: fire monitor, range, rotation range, elevation range.

Suction Hose and Hose: Equipped with high-quality wire-reinforced suction hoses with copper wire and anti-static properties, ensuring smooth water absorption and safety. The hoses are also of high quality to meet the requirements of firefighting operations. Keywords: suction hose, anti-static, hose quality.
