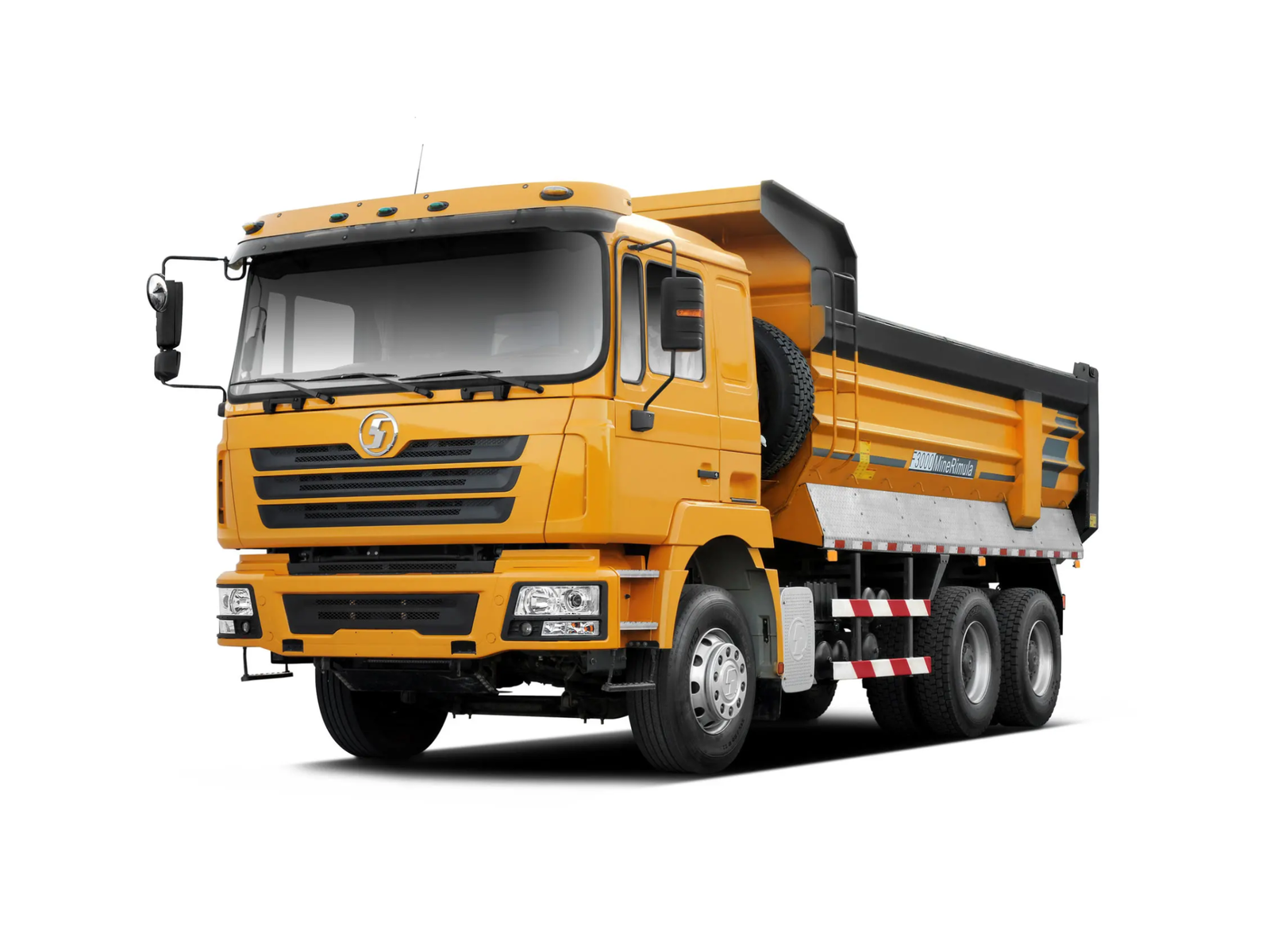

The SHACMAN dump truck is a reliable and sturdy vehicle that boasts exceptional carrying capacity and powerful engine performance. Its robust frame is specifically designed for use in harsh operating environments commonly found in the mining and construction industries. As a result, it is widely utilized for short-distance transportation of earthwork materials for construction and mining projects. The truck has gained worldwide recognition and is highly favored by users in countries across Southeast Asia, the Middle East, Africa, and South America. Undoubtedly, choosing a SHACMAN dump truck would be a wise decision for your project.
Other Dump truck,Click here
| SHACMAN F3000 6×4 DUMP TRUCK | |
| Model | SX3255DR384 |
| Cab | MAN F3000 Cab,Single bed,AC |
| Dimension(Lx W xH)(mm) | 8700×2490×3450mm |
| Total mass(kg) | ≤50000kg |
| Kerb mass(kg) | 14500kg |
| Approach / departure angel | 28/30 |
| Front/rear suspension(mm) | 1525/1629 |
| Max. gradeability (%) | 25 |
| Engine brand | Weichai Engine |
| Engine model | WP10.340E22,340hp |
| Rated output power | 247kw |
| Torque(N.m r. p. m) | 1550N.m/1200-1500rpm |
| Rated speed(rpm) | 1900rpm |
| Emission Standard | E-V |
| Fuel type | Diesel |
| Displacement(L) | 9.726L |
| Driving type | 6×4 |
| Wheel base(mm) | 3775+1400mm |
| Clutch | φ430 diaphragm spring |
| Gearbox | FAST 10JSD180,10 Forward&2 Reverse,Manual |
| Front axle | 9.5T MAN 9500kg |
| Rear axle | 16T MAN 2×16000kg |
| Steering | Z-F technology right-hand drive(RHD) |
| Type | 12.00R20,10+1pc |
| Tank capacity(L) | 380L |
| Braking system | WABCO ABS |
| Max. speed (km/h) | 77km/h |
| Color | Optional |
| Cargo box size(mm) | 5600×2300×1500mm bottom8mm,side6mm |
| Lifting style | φ180 hydraulic front lifting cylinder |
