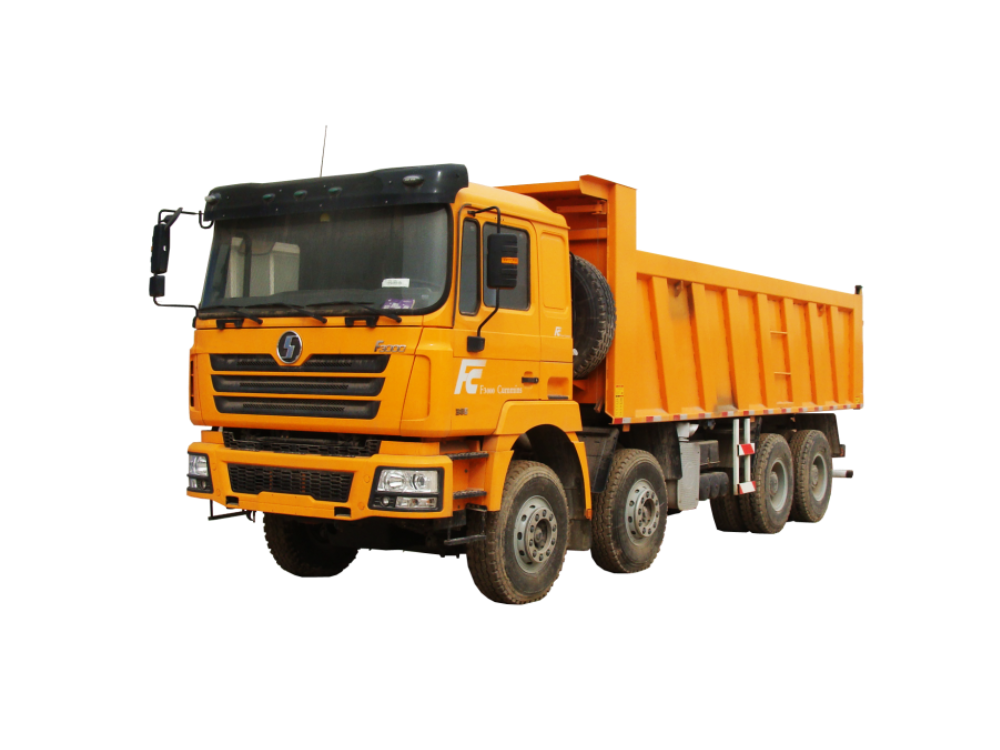

We are China Truck supplier,We provide SHACMAN 8×4 12 wheels Dump Truck,Below is SHACMAN truck Specification.
SHACMAN dump truck specifications
| Model | SX3315DU366 Heavy Duty Type |
| Traction type | 8X4 |
| Driver’s cab | F3000 flat roof, air conditioner, hydraulic driver seat, 4-point hydraulic suspension cabin |
| Dimension | Wheel base(mm): 1800+3575+1400 |
| Overall size(mm): 10250x2490x3450mm | |
| Engine | Brand: Weichai |
| Diesel 4 stroke direct injection diesel engine, 6 cylinder in-line with water cooling, turbo-charging & inter cooling | |
| Engine model: WP12.400E201 Euro II | |
| Maximum output: 400HP | |
| Rated speed: 1900rpm | |
| Max torque: 1920N.m/1000-1400rpm | |
| Number of cylinder:6 | |
| Displacement: 11.596L | |
| Clutch | 430mm |
| Transmission | 10JSD180+QH50 |
| Front axle | MAN 9.5T |
| Rear axle | MAN 16T double reduction driving axle, inter-wheel differential and differential lock) |
| Ratio: 4.769 | |
| Tyre | 12.00R20 Radial tyre (10+1 pcs) |
| Electrics | Operating voltage: 24V, negative grounded |
| Weight | Curb weight: 14600kg |
| Loading capacity: 40000kg | |
| Performance | Maximum driving speed: 80km/h |
| Cargo Box | |
| Box inner size | 7400x2300x1500mm |
| Thickness | Floor plate 8mm and side 6mm |
| Lifting system | Front lifting system |
