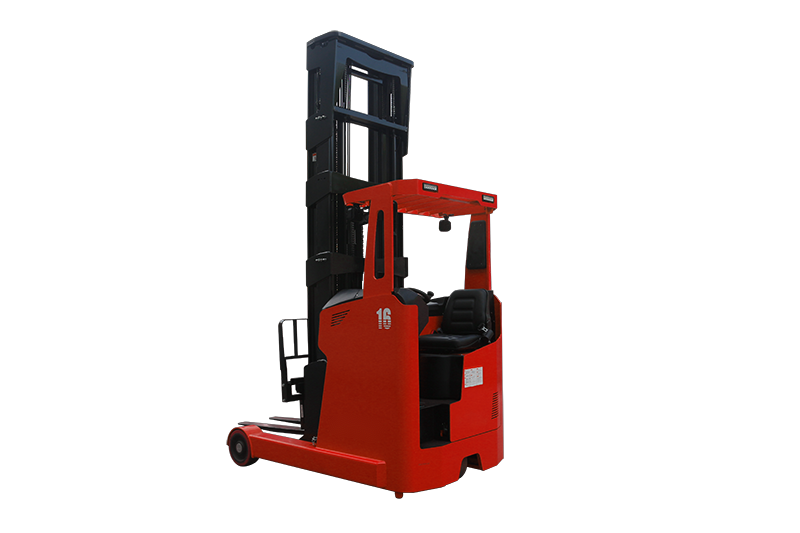

Are you in need of a reliable and efficient solution for material handling in narrow aisles and high stacking applications? Look no further than Our FBRF16, FBRF20, and FBRF25 seated type electric reach forklift. These forklifts are designed to optimize storage space and enhance productivity, making them perfect for warehouses, distribution centers, and industrial environments.
Featuring an ergonomic design and a comfortable seated cabin, the seated type electric reach forklifts prioritize operator comfort and safety. With a rotating seat option available, operators can easily maneuver the forklift and have better visibility in all directions. The electric operation ensures smooth and precise control, reducing operator fatigue and maximizing efficiency.
To ensure safe and efficient operation, it is essential to perform regular inspections and follow a comprehensive electric reach truck checklist. This will help identify any maintenance or safety issues that need to be addressed promptly. We provides reliable and durable electric reach trucks that meet industry standards.
When it comes to electric reach forklifts, the turning radius is an important factor to consider. The seated type electric reach forklifts offer excellent maneuverability with a compact turning radius, allowing operators to navigate through narrow spaces with ease. This feature enables efficient utilization of space within the warehouse.
Whether you are looking for a new electric reach forklift or considering purchasing a used one, make sure to consult the appropriate manuals for detailed instructions and specifications before use it. The manuals provide valuable information on maintenance, operation, and safety guidelines.
In summary, Our FBRF16, FBRF20, and FBRF25 seated type electric reach forklifts are the ideal choice for maximizing storage capacity, enhancing productivity, and ensuring operator comfort and safety. These forklifts offer efficient maneuverability, a comfortable seated cabin, and precise control, making them a valuable asset for your material handling operations.
| Model | FBRF16(Standard mast) | FBRF20(Standard mast) | ||
| Power type | Battery | Battery | ||
| Operation type | Seated | Seated | ||
| Rated capacity | Q(kg) | 1600 | 2000 | |
| Load center | C(mm) | 500 | 500 | |
| Front overhang | x(mm) | 205 | 205 | |
| Wheelbase | y(mm) | 1425 | 1525 | |
| Service weight(incl. battery) | kg | 3710 | 4000 | |
| Wheel type | PU | PU | ||
| Load wheel | mm | φ300×120 | φ300×120 | |
| Drive wheel | mm | φ343×108 | φ350×120 | |
| Auxiliary wheel | mm | / | / | |
| Number of wheels,front/rear(x=drive wheel) | 2/ 1X | 2/ 1X | ||
| Wheel tread,drive side | b10(mm) | / | / | |
| Wheel tread,load side | b11(mm) | 1170 | 1170 | |
| Fork tilt | α/β(°) | 3/5 | 3/5 | |
| Mast closed height | h1(mm) | 3322 | 3322 | |
| Free Lift height | h2(mm) | 2712 | 2712 | |
| Lift height | h3(mm) | 7500 | 7500 | |
| Mast extended height with load-backrest | h4(mm) | 8430 | 8430 | |
| Overhead guard height | h6(mm) | 2200 | 2200 | |
| Pedal height | h7(mm) | 376 | 376 | |
| Overall length | l1(mm) | 2340 | 2421 | |
| Overall width | b1/b2(mm) | 1270/1290 | 1270/1290 | |
| Fork size | l/e/s(mm) | 1070×100×35 | 1070×122×40 | |
| Fork carriage width | b3(mm) | 1090 | 1090 | |
| Fork outside width | b5(mm) | 222-750 | 266-772 | |
| Inner leg width | b4(mm) | 890 | 890 | |
| Reach stroke | l4(mm) | 583 | 617 | |
| Mast ground clearance | m1(mm) | 75 | 75 | |
| Aisle width for pallet 1000*1200mm(C=500mm) | Ast(mm) | 2764 | 2838 | |
| Aisle width for pallet 800*1200mm(C=600mm) | Ast(mm) | 2814 | 2882 | |
| Turning radius | Wa(mm) | 1700 | 1798 | |
| Driving speed(load/unload) | km/h | 14/14 | 14/14 | |
| Lifting speed(load/unload) | mm/s | 280/380 | 340/440 | |
| Lowering speed(load/unload) | mm/s | 380/340 | 420/360 | |
| Max.gradeability(load/unload) | %(tanθ ) | 10 | 10 | |
| Brake type | Mechanical | Mechanical | ||
| Driving Motor(S2-60min) | kw | 5.5 | 6.5 | |
| Lifting Motor(S3-15%) | kw | 8.6 | 12.8 | |
| Battery voltage/capacity | V/Ah | 48/420 | 48/560 | |
| Options: Lithium battery voltage/capacity | V/Ah | |||
| Battery weight | kg | 715 | 920 | |
| Steering system | EPS | EPS | ||
| Battery replacement type | Front pull | Front pull | ||
