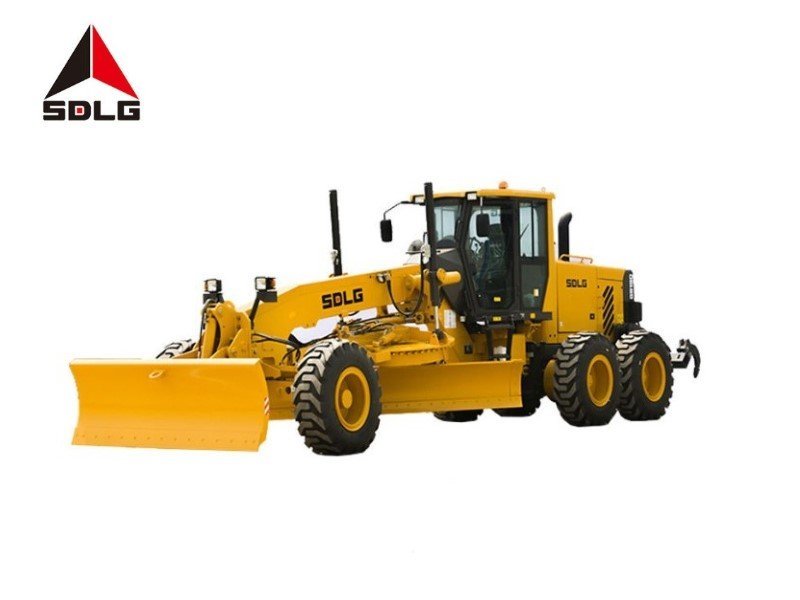

Designed with European advanced technology, the SDLG Motor Grader G9190 is a high-speed, high-efficiency, and high-accuracy motor grader that serves multiple purposes in the construction industry. This versatile machine is widely used in various construction operating conditions such as road construction, airport projects, defense engineering, mine construction, water conservancy projects, and farmland improvement.
The SDLG Motor Grader G9190 is engineered to deliver exceptional performance and meet the demands of the modern construction environment. Equipped with the latest technological advancements, this motor grader ensures precise ground leveling, efficient grooving, seamless slope scraping, effective bulldozing, reliable snow ploughing, thorough soil loosening, efficient material arrangement, and seamless mixing works.
One of the standout features of the G9190 is its remarkable speed and efficiency, allowing for quick completion of tasks and enhanced productivity on the job site. Its high accuracy ensures precise grading and leveling operations, enabling construction professionals to achieve superior results.
SDLG understands the importance of adaptability in construction equipment, and the G9190 lives up to this expectation. This motor grader excels in a wide range of applications, making it an indispensable tool for construction projects. Whether it’s ground leveling, grooving, slope scraping, snow ploughing, soil loosening, compacting, or material arrangement and mixing, the G9190 delivers outstanding performance every time.
When it comes to operator comfort and safety, SDLG Motor Grader G9190 doesn’t disappoint. Its ergonomic cabin design provides a comfortable working environment with excellent visibility, ensuring operators can work efficiently and safely. Additionally, the robust construction of the G9190 is built to withstand challenging operating conditions, ensuring durability and reliability.
At SDLG, we prioritize the ease of maintenance to minimize downtime and maximize operational efficiency. The G9190 is designed for easy maintenance, ensuring that construction professionals can keep their equipment in optimal condition with minimal effort.
In summary, SDLG Motor Grader G9190 offers superior performance, unmatched versatility, and exceptional reliability in construction projects. Whether it’s road construction, airport projects, mine construction, or any other demanding construction application, the G9190 is the ideal choice. Experience the power of SDLG technology and elevate your construction operations with the SDLG Motor Grader G9190. Contact us today to get sdlg motor grader g9190 specs and request a quote.
We also offer SDLG grader parts and other SDLG construction machinery parts . Feel free to inquire for more information and find the perfect fit for your equipment needs.
| Overall dimension | Specification | Item | Specification |
| LxWxH | 8975x2710x3240mm | Rated power/speed | 146kW/2200r/min |
| Min.Ground clearance of front alxe | 610mm | Engine displacement | 7146mL |
| Ground clearance of rear axle | 430mm | Clunder bore/stroke | 108/130mm |
| Wheel tread | 2260mm | Min.fuel-consume ratio | 210g/kW.h |
| Wheelbase(front/rear) | 6480mm | Max.torque | 710Nm |
| Wheelbase of rear axles | 1538mm | Emission standard | EC Stage II & EPA Tier II |
| Overall parameter | Transmission system | ||
| Overall working weight | 15800kg | Transmission type | ZFW320-Fixed shaft power shift |
| Max.inclination angle of front wheel | ±18° | Torque converter | Single-stage single-phase 3-element |
| Max.swinging angle of front axle | ±16° | Gears | Six forward three reverse |
| Max.steering angle of front wheel | ±50° | Speed at forward gear I | 0~4.8km/h |
| Steering angle of articulated frame | ±23° | Speed at forward gear II | 0~8.4km/h |
| Cutter diameter | 1626mm | Speed at forward gear III | 0~11km/h |
| Cutter size(lengthxheightxthickness) | 3962x635x25mm | Speed at forward gear IV | 0~18.6km/h |
| Swing angle of blade | 360° | Speed at forward gear V | 0~23km/h |
| Min.turning radius | 7.6m | Speed at forward gear VI | 0~38km/h |
| Ground clearance of blade | 445mm | Speed at reverse gear I | 0~4.8km/h |
| Cutting depth of blade | 787mm | Speed at reverse gear II | 0~11km/h |
| Inclination angle of blade | Forward 47°/Backward 5° | Speed at reverse gear III | 0~23km/h |
| Sliding range of blade | Left 673mm/Right 673mm | Hydraulic system | |
| Max.tractive force | 82kN | Type | Open system |
| Max.speed(Forward/Reverse) | 38/23km/h | System | 21MPa |
| Engine | Fill capacity | ||
| Model | BF6M1013EC | Fuel | 270L |
| Type | Inline,water-cooled,dry cylinder liner,direct injection | Hydraulic oil | 132L |
