SDLG Loader is famous brand in China.We offer SDLG loader for sale.It is have high quality and Competitive price.
1.SDLG loader is equipped with the low-speed and high-torque China II WEICHAI engine featuring low fuel consumption, strong power and high reliability, for which a horizontally-mounted two-stage air filter of high reliability is installed.
2. The loader is applied with the technologically-sophisticated SDLG planetary transmission with two forward gears and one reverse gear, enabling easy operation, good reliability and high efficiency; the drive axle is reinforced to provide large loading capacity and high reliability.
3. The new steel cab applied offers for drivers a wide vision and a greater operating space, in which the full-coverage interioris configured to give a good sealing performance, and the optional A/C offers a good comfort.
4. The digitalizedstepping instrument panel independently developed by SDLG is applied, offering an effective human-machine interaction.
5. The loader is equipped with the load-sensing mechanically-controlled hydraulic steering system, allowing easy control, and stable and reliableperformance. The hydraulic pipelines are of dual-sealing structure, further enhancing the tightness of hydraulic system.
6. The loader is applied with the reinforced rear/front frames which have gone through 200,000 cycles of fatigue intensifying tests, and the load of complete loader is reasonably distributed, both of which contribute to a high loading capacity and a good stability.

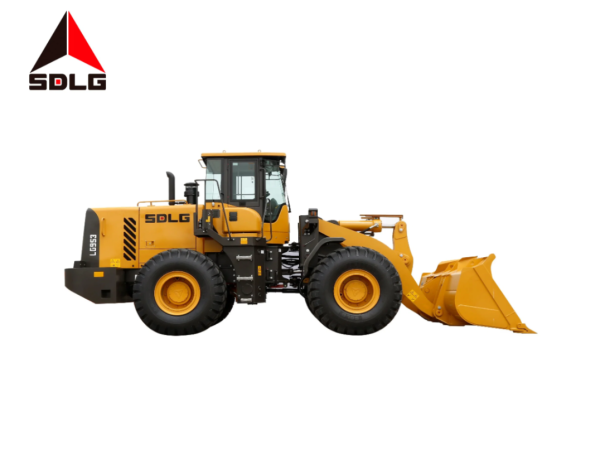

SDLG LG953 Wheel Loader Specification
| Overall dimension | |
| L*W*H | 7794*3024*3423mm |
| Wheel base | 2920mm |
| Min. ground clearance | 534mm |
| Max. dumping height | 3040mm |
| Dumping distance | 1160mm |
| Dumping angle | 45 |
| wheel tread | 2250mm |
| steering angle | 35 |
| horizontal crossing radius | 6879mm |
| Min. turning radius | 5904mm |
| Overall parameters | |
| Backet capacity | 2.8m3 |
| Rated load | 5000kg |
| operating weight | 16600kg |
Max. tractive force
|
150kN |
| Max. breakout force | 190kN |
| Tipping load | 100kN |
| Engine | |
| Model | WD10G220E21 |
| Type | Inline, watercooled, dry cylinder liner, direct injection |
| Rated power | 162kW |
| Rated speed | 2200r/min |
| Engine displacement | 9726ml |
| Max. torque | 860N.m |
| Emission standard | GB 20891-2007(China Phase II) |
| Min. fuel-consume ratio | 215g/kw.h |
| Transmission system | |
| Torgue converter | single-stage four-element double-turbine hydraulic torque converter |
| Transmission type | Planetary power shift |
| Gears | Forward 2 reverse 1 |
| Hydraulic system of working device | |
| Type | Mechanical control |
| total time | 9.3s |
| Brake system | |
| Service brake type | Air over hydraulic disc type |
| Parking brake type | Manual, caliper disc type |
| Steering system | |
| Type | Load sensing full hydraulic articulated steering |
| System pressure | 16 Mpa |
| Fill capacity | |
| Fuel | 260L |
| Hydraulic oil | 240L |
| Engine | 20L |
| Transmission | 44L |
| Drive axle | Forward 26L+ reverse 26L |
| Braking system | 4L |
