We are suppler of truck crane.We have China brand moile cran,Such as:SANY,XCMG,ZOOMLION etc.
We offer a variety of crane specifications, and we can also help you select the right crane based on your budget and requirements. In any case, please contact us for the best quote, and we’ll provide you with the most competitive offer.

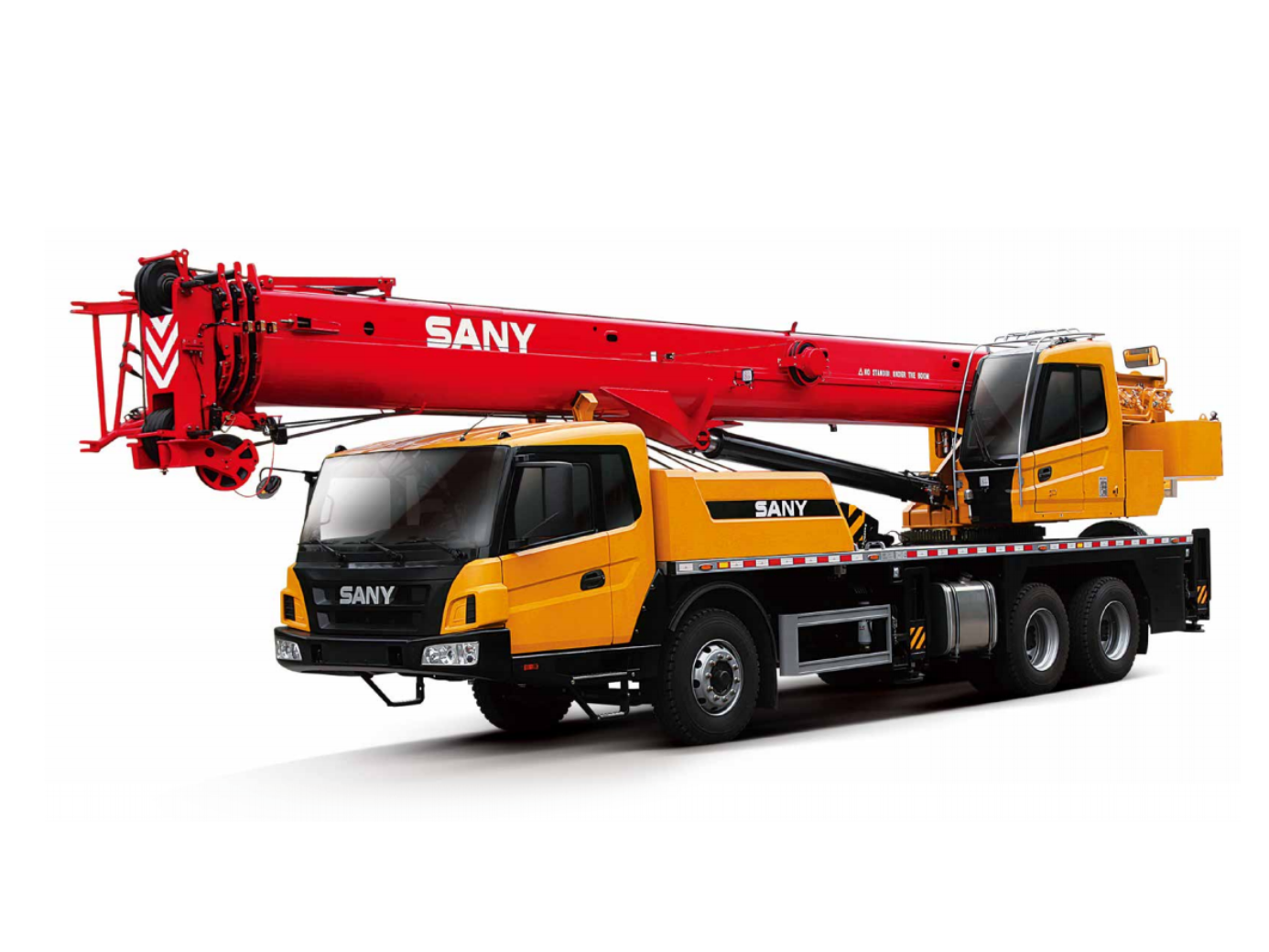

SANY Truck Crane STC250C4 Specification
| tem | Parameter |
| Max. lifting capacity | 25ton |
| Gross weight | 30.8ton |
| Engine model | WEICHAI WP7.300E31 |
| Max. engine power | 220/2100kW/rpm |
| Max. engine torque | 1250/(1200~1600)N·m/rpm |
| Overall length | 12890mm |
| Overall width | 2550mm |
| Overall height | 3560mm |
| Max. travel speed | 85km/h |
| Min.steering radius | 11m |
| Min.steering radius of boom tip | 12.5m |
| Wheel formula | 6×4 |
| Min.ground clearance | 240mm |
| Approach angle | 10° |
| Departure angle | 13° |
| Max.gradeability | 41% |
| Fuel consumption per 100km | 30L |
| Min.rated lifting radius | 3m |
| Tail slewing radius | 3300mm |
| Boom sections | 4 |
| Basic boom | 1078KN*m |
| Full-extension boom | 659kN·m |
| Max Boom Length | 35m |
| Jib Length | 8m |
