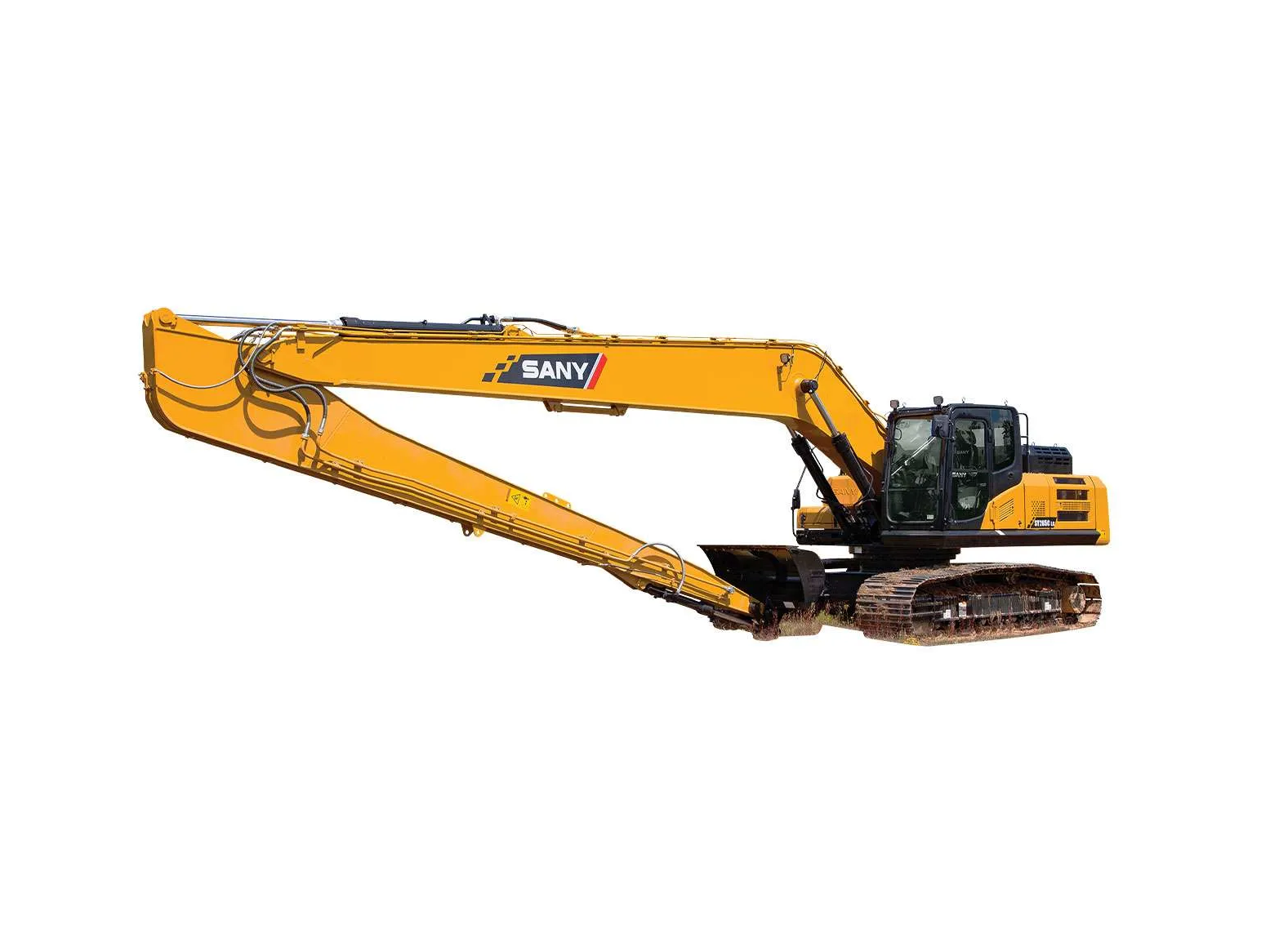

SANY Long Arm Excavator SY215C Long Boom Excavator

Meeting EPA, EU Tier 2 Emission regulations, more power and lower fuel consumption. New high performance engine, more power and less noise. 15m total length of boom and arm, Max.excavating distance nearly reach 15m.

We are supplier of SANY equipment,The below is SANY long arm excavator.

sany long reach excavator SY215C Specification

Length(During Transportation)	12080mm
Width	2980mm
Height(During Transportation)	3240mm
Upper Body Width	2875mm
Blade height	3055mm
Std.Track Width	800mm
Track Gauge	2380mm
Min.Ground Clearance	440mm
Tail Swing Radius	2750mm
Roller Gauge	3640mm
Track Length	4445mm
Max.Digging Height	11265mm
Max.Dumping Height	9274mm
Max. Digging Depth	11970mm
Min.Swing Radius	3730mm
Operating weight	24150Kg
Bucket Capacity	0.35M3
Rated Power	114/2050
Travel Speed	(Highest/Lowest)5.5/3.5km/h
Swing Speed	11rpm
Gradeability	70%/35°
