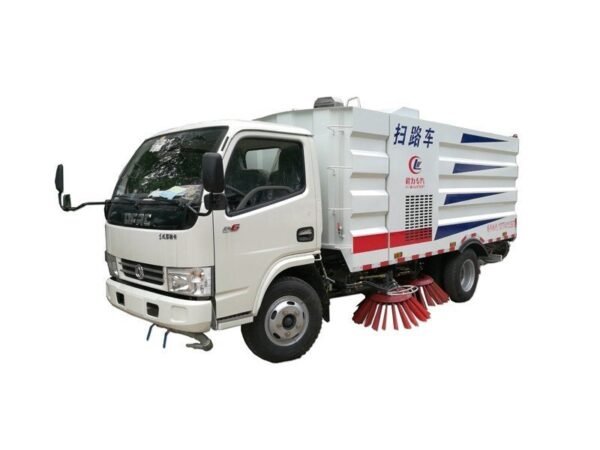

Road sweeper truck for sale
Our leading varieties include more than 100 types of trucks such as Water truck, Fecal suction truck, Garbage truck, Refuse compactor, Sewage suction truck, Fuel tank, High-altitude operation truck, Truck with crane, Dump truck, Instructional truck, Van truck, Semi-trailer, Fire engine, Spares, Refrigerator truck, Water wagon, Tractor, High-altitude water truck, Bulk cement truck, Chemical liquid truck, Concrete mixer truck, ect.
| Basic Information | |
| Chassis Brand | Dongfeng |
| Chassis Model | EQ1090 |
| Overall Dimension | |
| Cab | Right hand drive,Single Row,white, |
| Drive Model | 4X2 |
| Overall Parameter: L×W×H | 7200×2350×2750mm |
| Wheel Base | 3800mm |
| Curb Weight | 5900Kg |
| Max Speed | 90Km/h |
| Engine and Chassis | |
| Engine manufacturer | Dongfeng Cummins Engine Co., Ltd |
| Engine type | B125 33, 4 cylinder,turbo charging and intercooling |
| Power | 125HP |
| Emission Standard | Euro 3 |
| Transmission | Fast brand,6DS60T-D, Manual Transmission,6 forward speed & 1 reverse |
| Axle Loading Front/Rear | 2200/5500kg |
| Steering System | With power-assisted steering |
| Brake System | Air Brake System |
| Suspension System | Leaf spring,8/10+7 |
| Tyre | 215/75R17.5, Tubeless tire,6+1 spare tire |
| Usage Parameter | |
| Stainless steel Dustbin Effective Capacity | 5m3 |
| Water Tank Capacity | 2.5m3 |
| Maximum Sweeping Width | 3m |
| Suction Nozzle Type | Rear Horseshoe Follow-up Suction Nozzle |
| Suction Pipe Diameter | 100mm |
| Discharging Angle | 45° |
| Sweeping Engine | Yes，JMC brand 87HP |
| Mass Sweeping Speed | 5-20km/h |
| Work principle
| Install four rotating brushes, when the vehicle forward the rubbish and sand will be brought by rotating brushes to the in the middle of the vehicle, with the use of the vacuum suction head ,the rubbish and sand pumping into the waste collection tank in the box. Installed a rubbish bin (containing water tank), install an engine as a power source, equipped with twin hydraulic pumps, hydraulic control systems, hydraulic actuator, respectively, to make the driven fans, sweeping brushes, suction cups, pumps, bins and so on to work |
