Reliable Diesel, Electric & LPG Forklifts
CE Certified Material Handling Solutions for Global Logistics & Warehousing
At ARCHER, we provide a versatile range of high-performance forklifts engineered to meet international safety standards. Whether you need the raw power of Diesel for outdoor yards, the zero-emission efficiency of Electric for food-grade warehouses, or the flexibility of LPG, our CE-certified machines deliver consistent reliability and a lower total cost of ownership.
Forklift Series & Technical Overview
| Power Type | Capacity Range | Best Application |
|---|---|---|
| Diesel Forklift | 1.5 Ton – 10 Ton | Heavy-duty outdoor use, construction, ports. |
| Electric Forklift (Li-ion) | 1.0 Ton – 3.5 Ton | Indoor warehouses, cold storage, clean-room env. |
| LPG / Gasoline | 1.5 Ton – 5.0 Ton | Intermittent indoor/outdoor use, 24/7 operations. |
Why Sourcing Forklifts from ARCHER?
CE & ISO Certified
All units comply with European safety directives (CE) and ISO quality management systems, ensuring legal compliance and operational safety.
Global Parts Support
We maintain a dedicated inventory of maintenance parts (filters, tires, forks) to support our global clients and minimize downtime.
Customizable Mast & Attachments
Choose from Triplex full-free masts, side shifters, paper roll clamps, or bale clamps to fit your specific industry needs.
Request Your Forklift Quotation
Bulk Discounts Available for Fleet Managers and Equipment Dealers.
Official Web: www.archerparts.com | www.archermach.com
| Model | CPC20/ CQCD20 | CPC25/ CQCD25 | CPC30/ CQCD30 | CPC35/ CPCD35 | CPC40/ CQCD40 | CQCD50 |
| Rated Loading Capacity(kg) | 2000 | 2500 | 3000 | 3500 | 4000 | 5000 |
| Load Center Distance(mm) | 500 | 500 | 500 | 500 | 500 | 500 |
| Max Lifting Speed (Full load)(mm/s) | 450 | 450 | 400 | 400 | 390 | 375 |
| Max Driving Speed (Full/Empty load)(km/h) | 18/20 | 18/20 | 18/20 | 18/20 | 18/20 | 20/24 |
| Fork Lifting Height(mm) | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 |
| Mast Tilt Angle (Forward and Backward) | 6°/12° | 6°/12° | 6°/12° | 6°/12° | 6°/12° | 6°/12° |
| Min. Turning Radius(mm) | 2340 | 2340 | 2440 | 2440 | 2720 | 3000 |
| Min. Ground Clearance(mm) | 110 | 110 | 135 | 135 | 145 | 170 |
| Length (including Fork)(mm) | 3820 | 3820 | 3930 | 3930 | 4100 | 4350 |
| Width(mm) | 1165 | 1165 | 1230 | 1230 | 1230 | 1400 |
| Height From Ground to Overhead Guard(mm) | 2100 | 2100 | 2145 | 2145 | 2115 | 2330 |
| Wheel Base(mm) | 1650 | 1650 | 1700 | 1700 | 1900 | 2150 |
| Front Wheel Track(mm) | 970 | 970 | 1000 | 1000 | 1060 | 1180 |
| Rear Wheel Track(mm) | 970 | 970 | 970 | 970 | 970 | 1190 |
| Front Wheel Tire | 7.00-12 | 7.00-12 | 28*9-15 | 25*9-15 | 250-15 | 300-15 |
| Rear Wheel Tire | 6.00-9 | 6.00-9 | 6.50-10 | 6.50-10 | 6.50-10 | 7.00-12 |
| Self Weight(kg) | 3550 | 3850 | 4250 | 4600 | 4850 | 6800 |
| Standard Fork Length(mm) | 1220 | 1220 | 1220 | 1220 | 1220 | 1220 |
| Engine Rated Power(kw) | 36.8 | 36.8 | 36.8 | 36.8 | 36.8 | 60 |
| Engine Speed at Rated Power(rpm) | 2500 | 2500 | 2500 | 2500 | 2200 | 2400 |
| Engine Maximum Torque(Nm) | 177 | 177 | 177 | 177 | 200 | 300 |
| Engine Speed at Maximum Torque(rpm) | 1700 | 1700 | 1700 | 1700 | 1600 | 2000 |
| Model | CPCD50 | CPCD60 | CQCD70 | CPCD80 |
| Double front wheels | ||||
| Rated Loading Capacity(kg) | 5000 | 6000 | 7000 | 8000 |
| Load Center Distance(mm) | 600 | 600 | 600 | 600 |
| Max Lifting Speed (Full load)(mm/s) | 500 | 500 | 450 | 350 |
| Max Driving Speed (Full/Empty load)(km/h) | 22/26 | 22/26 | 22/26 | 26/30 |
| Fork Lifting Height(mm) | 3000 | 3000 | 3000 | 3000 |
| Mast Tilt Angle (Forward and Backward) | 6/12 | 6/12 | 6/12 | 6/12 |
| Min. Tuming Radius(mm) | 3250 | 3250 | 3450 | 3700 |
| Min. Ground Clearance(mm) | 230 | 230 | 230 | 250 |
| Length (Including Fork)(mm) | 4760 | 4760 | 4800 | 5160 |
| Width(mm) | 1995 | 1995 | 1995 | 2165 |
| Height From Ground to Overhead Guard(mm) | 2420 | 2420 | 2420 | 2585 |
| Wheel Base(mm) | 2250 | 2250 | 2250 | 2500 |
| Wheel Track Front (mm) | 1470 | 1470 | 1470 | 1600 |
| Wheel Track Rear (mm) | 1700 | 1700 | 1700 | 1700 |
| Tires Front (mm) | 8.25-15-14PR | 8.25-15-14PR | 8.25-15-14PR | 9.00-20-14PR |
| Tires Rear (mm) | 8.25-15-14PR | 8.25-15-14PR | 8.25-15-14PR | 9.00-20-14PR |
| Self Weight(kg) | 8200 | 8640 | 9500 | 10960 |
| Standard Fork Length(mm) | 1220 | 1220 | 1220 | 1220 |
| Engine Rated Power(kw) | 85 | 85 | 85 | 85 |
| Engine Speed At Rated Power (rmp) | 2200 | 2200 | 2200 | 2200 |
| Engine Maximum Torque(Nm) | 500 | 500 | 500 | 500 |
| Engine Speed At Maximum Torque(rpm) | 1650 | 1650 | 1650 | 1650 |

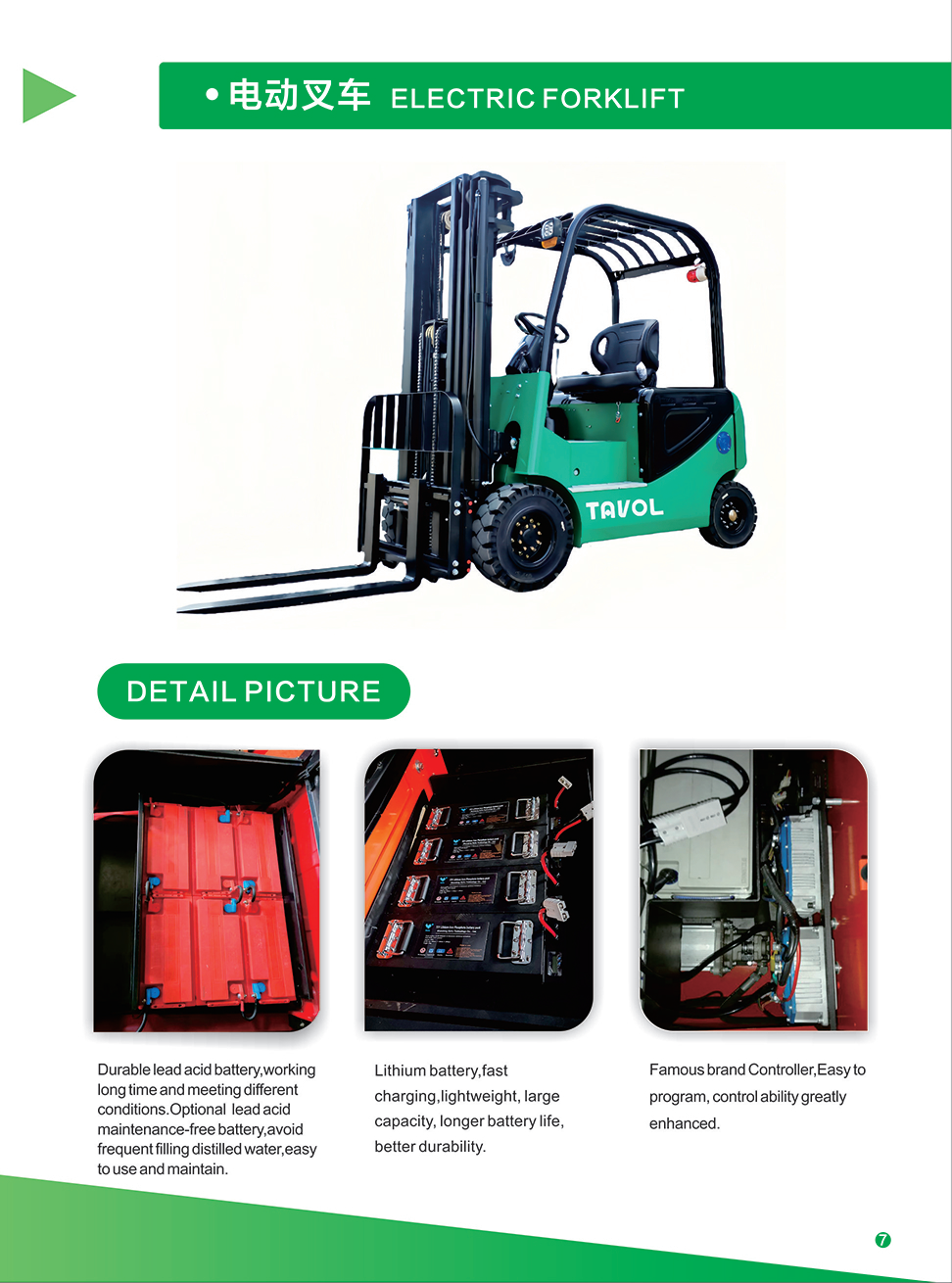

⚡ Electric Forklift Series (FB)
– Load Capacity: 1–3.5 tons (FB10 to FB35)
– Battery Options:
– Durable lead-acid battery, suitable for long shifts
– Lithium battery option**: Fast charging, lightweight, longer lifespan
– Ergonomic Design:
– Large LED display for intuitive operation
– Adjustable steering wheel and comfortable seat
– Wide-view mast for enhanced safety
– Eco-Friendly: Zero emissions, low noise – ideal for indoor use
| Model | FB10 | FB15 | FB20 | FB25 | FB30 | FB35 |
| Rated Loading Capacity(kg) | 1000 | 1500 | 2000 | 2500 | 3000 | 3500 |
| Load Center Distance(mm) | 500 | 500 | 500 | 500 | 500 | 500 |
| Wheel Base(mm) | 1330 | 1550 | 1550 | 1550 | 1700 | 1700 |
| Wheel Track(front/rear) (mm) | 910/865 | 945/880 | 945/880 | 945/880 | 1000/970 | 1000/970 |
| Mast Tilt Angle (Forward and Backward) | 5/10 | 5/10 | 5/10 | 5/10 | 6/12 | 6/12 |
| Fork Lifting Height(mm) | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 |
| Height From Ground to Overhead Guard(mm) | 1847 | 2110 | 2110 | 2110 | 2105 | 2105 |
| Length (Including Fork)(mm) | 3050 | 3150 | 3300 | 3400 | 4120 | 4120 |
| Width(mm) | 1020 | 1096 | 1096 | 1096 | 1230 | 1230 |
| Min. Ground Clearance(mm) | 77 | 88 | 88 | 88 | 135 | 135 |
| Min. Tuming Radius(mm) | 2050 | 2280 | 2280 | 2280 | 2530 | 2530 |
| Standard Fork Length(mm) | 1070 | 1070 | 1070 | 1070 | 1220 | 1220 |
| Max Driving Speed (Empty/Full load)(km/h) | 14/12 | 14/12 | 14/12 | 14/12 | 16/15 | 16/15 |
| Weight(kg) | 1800 | 2650 | 2850 | 3200 | 4400 | 4650 |
| Tires(front/rear) | 15*4 1/2-8 | 18&7-10 15*4 2/1-8 | 18&7-10 15*4 2/1-8 | 18&7-10 15*4 2/1-8 | 28*9-15-14 /6.50-10-10 | 28*9-15-14 /6.50-10-10 |
| Drive motor power (kw) | 4 | 4 | 5 | 6 | 15 | 15 |
| Lifting motor power (kw) | 4.5 | 5 | 5 | 7.5 | 16 | 16 |

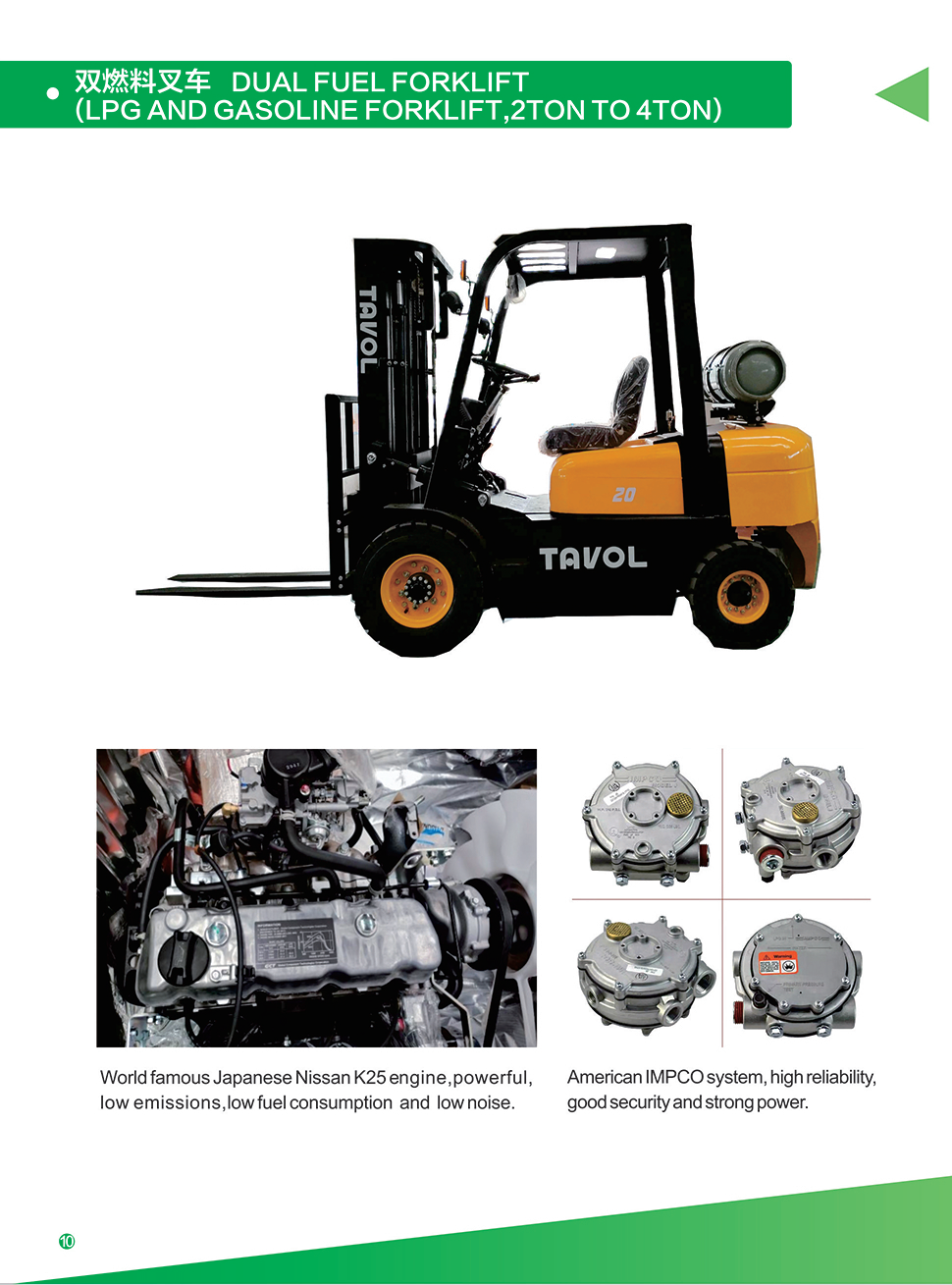

🌿 LPG Forklift Series (CPQY)
Load Capacity: 2–4 tons (CPQYD20 to CPQYD40)
Engine: Equipped with Japanese Nissan K25 engine – powerful, fuel-efficient, low emission
Versatile Use: Suitable for both indoor and outdoor applications
| Model | CPQYD20 | CPQYD25 | CPQYD30 | CPQYD35 | CPQYD40 |
| Rated Loading Capacity(kg) | 2000 | 2500 | 3000 | 3500 | 4000 |
| Load Center Distance(mm) | 500 | 500 | 500 | 500 | 500 |
| Max Lifting Speed (Full load)(mm/sec) | 400 | 400 | 470 | 470 | 390 |
| Max Driving Speed (Full/Empty load)(km/h) | 17/19 | 17/19 | 18/20 | 18/20 | 18/20 |
| Fork Lifting Height(mm) | 3000 | 3000 | 3000 | 3000 | 3000 |
| Mast Tilt Angle (Forward and Backward) | 6°/12° | 6°/12° | 6°/12° | 6°/12° | 6°/12° |
| Min. Turning Radius(mm) | 2450 | 2450 | 2530 | 2530 | 2720 |
| Min. Ground Clearance(mm) | 110 | 110 | 135 | 135 | 145 |
| Length (including Fork)(mm) | 3720 | 3720 | 3970 | 3970 | 4100 |
| Width(mm) | 1160 | 1160 | 1230 | 1230 | 1230 |
| Height From Ground to Overhead Guard(mm) | 2095 | 2095 | 2110 | 2110 | 2115 |
| Wheel Base(mm) | 1640 | 1640 | 1775 | 1775 | 1900 |
| Front Wheel Track(mm) | 970 | 970 | 1000 | 1000 | 1060 |
| Rear Wheel Track(mm) | 970 | 970 | 970 | 970 | 970 |
| Front Wheel Tire | 7.00-12 | 7.00-12 | 28*9-15 | 25*9-15 | 250-15 |
| Rear Wheel Tire | 6.00-9 | 6.00-9 | 6.50-10 | 6.50-10 | 6.50-10 |
| Self Weight(kg) | 3470 | 3750 | 4120 | 4490 | 4850 |
| Standard Fork Length(mm) | 1220 | 1220 | 1220 | 1220 | 1220 |
| Engine Rated Power(kw) | 37.4 | 37.4 | 37.4 | 37.4 | 37.4 |
| Engine Speed at Rated Power(rpm) | 2300 | 2300 | 2300 | 2300 | 2300 |
| Engine Maximum Torque(Nm) | 176.5 | 176.5 | 176.5 | 176.5 | 176.5 |
| Engine Speed at Maximum Torque(rpm) | 1600 | 1600 | 1600 | 1600 | 1600 |

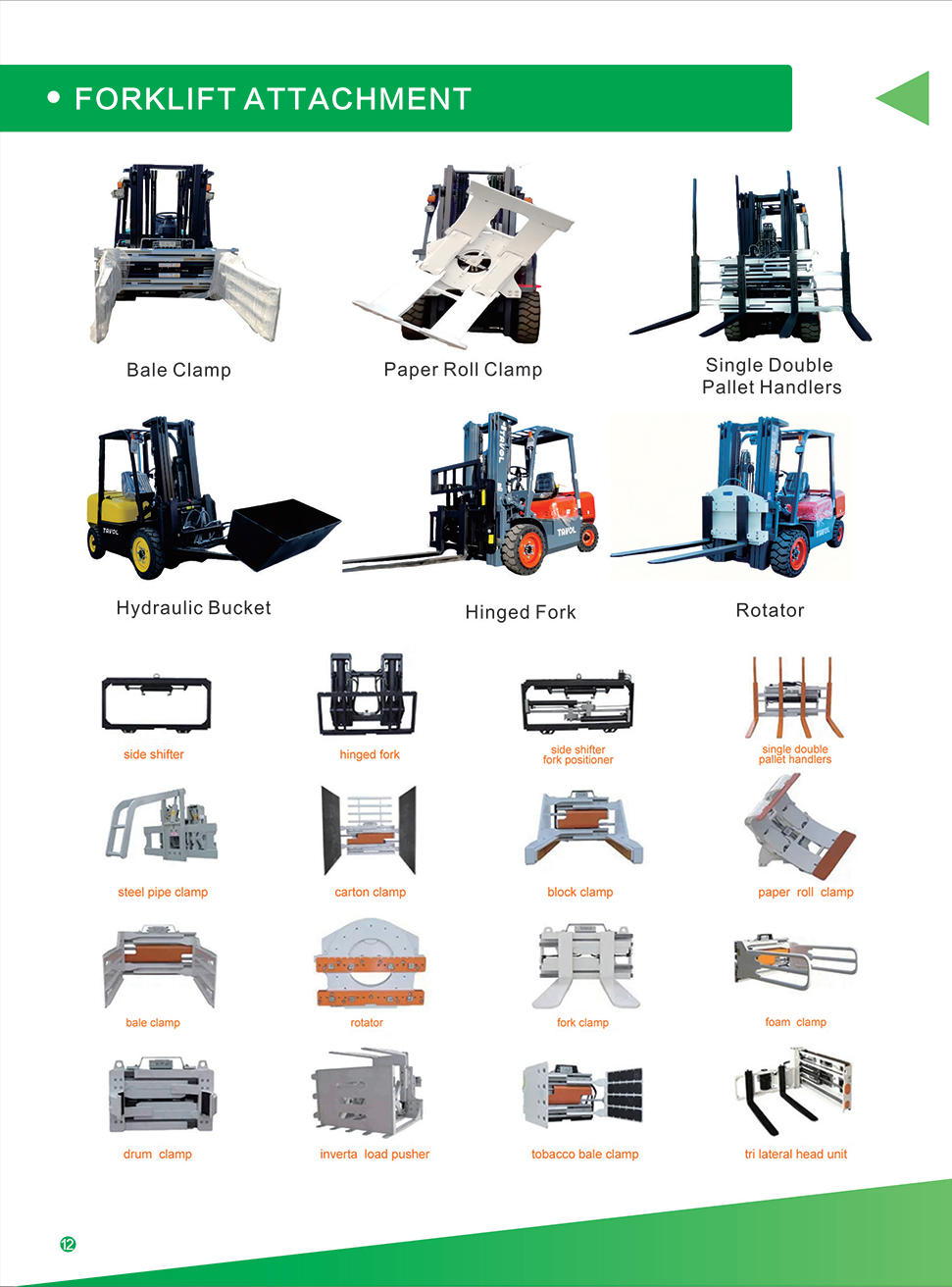

🛠 Wide Range of Forklift Attachments
We offer various attachments to handle different materials:
– Bale clamps, paper roll clamps, single/double pallet handlers
– Hydraulic buckets, rotators, side shifters, fork positioners, and more
