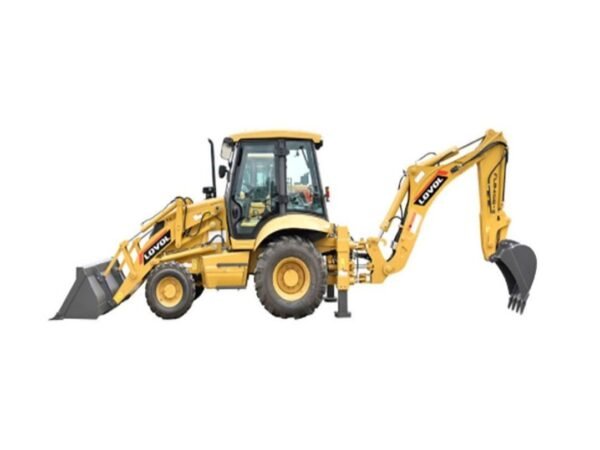

The is LOVOL Brand Chinese Backhoe loader for sale,The modle is FLB468-Ⅱ,It has the following advantages:
1.The highly reliable 1004C-P4T engine is powerful.
2.equipped with certified Italian original CARRARO axles and drivetrain. They have power shuttle between forward and reverse, as well as synchronized shifting in all ratios.
3.The American HUSCO hydraulic system operates flawlessly. Full hydraulic load-sensing steering from EATON is technologically and functionally sophisticated.
4.A 360-degree view cab with a sleek appearance provides superb visibility. For ultimate operator comfort, in-cab noise levers are the lowest in the industry thanks to injection-molded interior components.
5.Hood with a single-piece construction and DCPD material is more reliable.
6.A/C system is tuned, and cooling performance has substantially enhanced. Radiation performance is improved with perfectly matched power, drivetrain, and hydraulic systems.
7.Improved electrical reliability comes from water-proof plug connectors.
8.For low effort braking, servo assisted brakes are standard equipment on all machines.
9.For loading, an eight-bar mechanism is employed. High reliability is ensured by box-type lift arms.
10.The H-type stand is used in more varied working situations and reduces the distance needed to dig up a wall.
| Item | Unit | Parameter |
| Operating Weight | kg | 7730 |
| Engine Rated Power | kw | 70 |
| Diamentions （H*W*H） | mm | 7600*2320*3670 |
| Engine | Type | WP4G95E221 |
| Engine Rated Speed | RPM | 2200 |
| Max. Travel Speed | Km/H | 36 |
| Traction Force | kN | ≥67 |
| Wheel Base | mm | 2170 |
| Wheel Tread（Front） | mm | 1880 |
| Wheel Tread（Rear） | mm | 1805 |
| Gradeability | degree | ≦28 |
| Tire（Front） | – | 14-17.5-14PR |
| Tire（Rear） | – | 19.5L-24-12PR |
| Loading Specifications | ||
| Loading Bucket Capacity | cbm | 1 |
| Bucket Max. Breakout Force | kN | ≥28 |
| Boom Max. Breakout Force | kN | ≥37 |
| Total Cycle Time | s | ≤9.2 |
| Dumping Height | mm | 2780 |
| Dumping Clearance | mm | 1030 |
| Digging Specifications | ||
| Digging Bucket Capacity | cbm | 0.3 |
| Bucket Max. Breakout Force | kN | ≥45 |
| Bucket Arm Breakout Force | kN | ≥44 |
| Max. Dumping Height | mm | 3800 |
| Max. Digging Depth | mm | 4080 |
| Max. Digging Radius | mm | 5420 |
