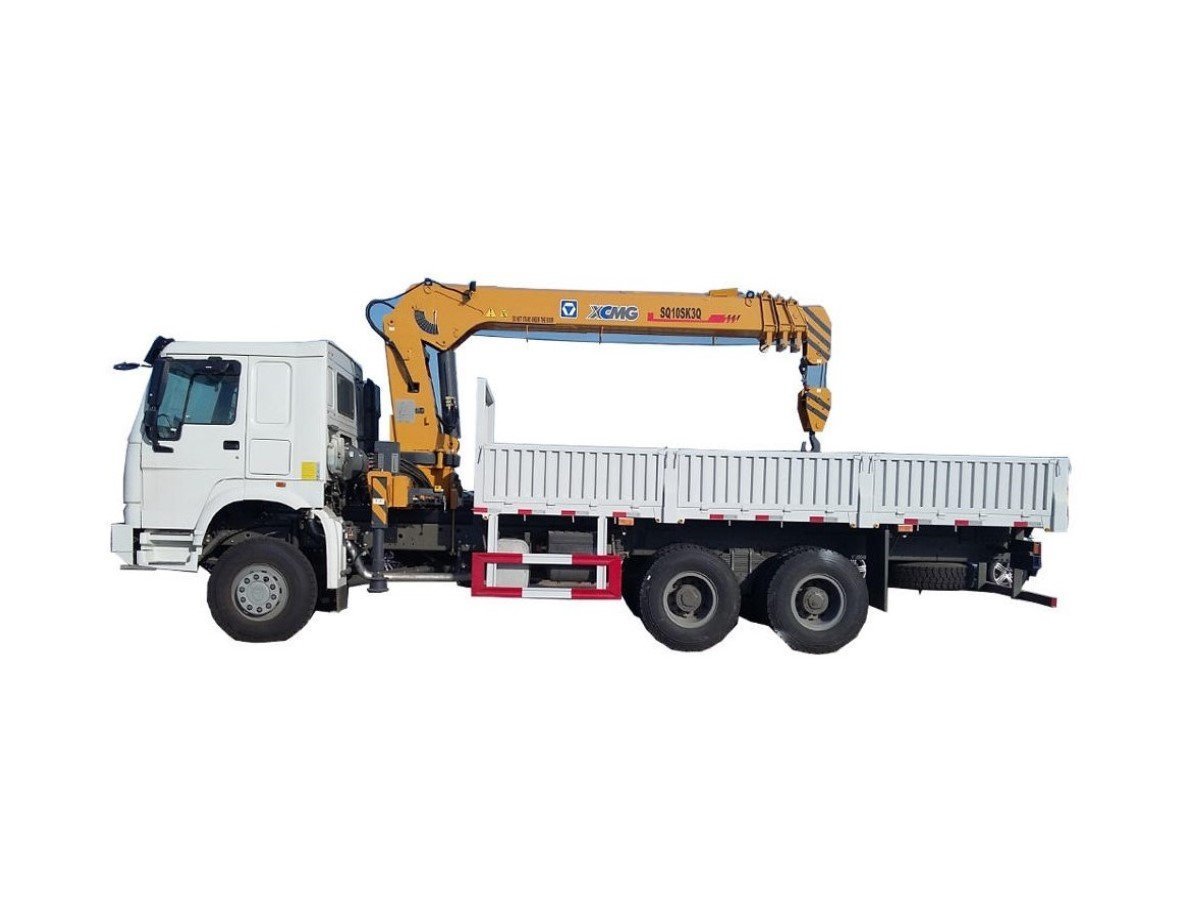

Find HOWO Truck Mounted Crane For Sale,Contact us,get best quotation
HOWO brand Chasiss Specification:
| Cabin | Driving type 6×4 | |
| HOWO 76 cab, with air condition and one bed, 70°hydraulically tillable to the front as attached photo for ref. | ||
| Vehicle Main Dimensions | Overall dimensions (L x W x H) mm | 10000×2500×3710 |
| Carriage Size (L x W x H) mm | 5600×2300×1100 | |
| Wheel base (mm) | 3225+1350 | |
| Wheel track (front/rear) (mm) | 2022/1800 | |
| Approach/Departure angle(°) | 10/16. | |
| Weight in KGS | Tare Weight | 13200 |
| payload | 25000 | |
| Front axles loading capacity | 1×7000 | |
| Rear axles loading capacity | 2×16000 | |
| Engine | Brand | Sinotruck |
| Model | WD615.69 | |
| Type | 4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling | |
| Horse Power(HP) | 290 HP | |
| Emission standard | Euro II | |
| Gearbox | HW15710,10 Forwards gear & 1 reverse gear | |
| Steering | ZF8098, from Germany | |
| Tire | 12.00R20 all radial steel tires | |
| Clutch | Reinforced diaphragm clutch, diameter 430 mm | |
| Crane specifications | Brand : XCMG | |
| Type: Knuckle | ||
| Max lift capacity: 8000 kg | ||
| Max working radius 10 m, Max lifting height :12.5 m | ||
XCMG Crane Specification: 5ton,6.3ton,8ton
| item | Unit | SQ8ZK3Q | SQ6.3ZK2Q | SQ5ZK3Q |
| Max. Lifting capacity | Kg | 8000 | 6300 | 5000 |
| Max. Lifting height | m | 12.5 | 10.8 | 12.5 |
| working radius | m/kg | 10 | 8.3 | 10 |
| Max.Lifting Moment | T.m | 16 | 13.23 | 10.5 |
| Recommend Power | Kw | 28 | 18 | 18 |
| Max. oil flow of hydraulic system | L/min | 40 | 25 | 25 |
| Max.pressure of hydraulic system | Mpa | 28 | 28 | 28 |
| oil tank capacity | L | 160 | 90 | 90 |
| crane weight | kg | 2970 | 2115 | 2117 |
| installation space | Mm | 1150 | 1050 | 1050 |
| rotation angle | ° | 360,all rotation. | 360,all rotation. | 360,all rotation. |
