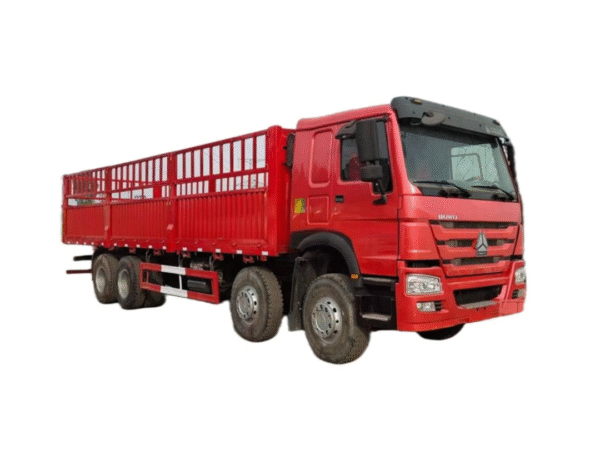

Sinotruk Howo 8×4 12 wheeler heavy Cargo Truck stainless steel fence transport truck with 40 ton capacity
| Typical truck model | ZZ1317N3867A | ZZ1317N4667A | |
| Cab | Model | HW76 | |
| Type | HW76 extend cab, one berth, with A/C all steel forward control, 55°hydraulically tiltable to the front,2-arm windscreen wiper system with 3 speeds, laminate windscreen, with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, heating & ventilation system, adjustable roof flap, with stereo radio/cassette recorder, sun visor, and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorber with transverse stabilizer, safety belt. | ||
| Engine | Model | WD615.69 | WD615.47 |
| Rated power | 336HP（247Kw/rpm） | 371HP（273Kw/rpm） | |
| Displacement | 9.726L | ||
| Type | 6 cylinder in-line with water cooling, turbo-charging & intercooling | ||
| Wheelbase | 1800+3800+1400mm | 1800+4600+1400mm | |
| Cargo body size | 8650x2300x2200mm | 9500x2300x2200mm | |
| Clutch | Single- plate dry diaphragm spring clutch, diameter 430(C) mm, hydraulically operating with air assistance | ||
| Transmission | SINOTRUK HW series 10/12/16 speed transmission, 10 forward and 2 reverse | ||
| Front axle | Steering axle with double T-cross section HF7/HF9 | ||
| Drive axle | Pressed axle housing, central single reduction ST16/MCY（Q）/HC16/AC16 Ratio:3.93 4.42 4.8 5.73 | ||
| Chassis | Frame: U-profile parallel ladder type with section of 320×90×8 mm, all cold riveted cross members and reinforced subframe Front suspension: 9 semi-elliptic leaf springs with hydraulic telescopic double-action shock absorbers and stabilizer Rear suspension: 9+6 semi-elliptic leaf springs with hydraulic telescopic double-action shock absorbers and stabilizer Spare wheel carrier: with one spare wheel Aluminum fuel tank: with 400 L fuel tank with locking fuel cap | ||
| Steering | Germany ZF, hydraulic steering with power assistance | ||
| Brakes | Service brake: dual circuit compressed air brake Parking Brake(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust brake Option: ABS | ||
| Wheel & Types | Rims: 8.0-20, 10 hole-steel Types 11.00-20 tube; Option: 12.00-20 tube, 12.00R20 tube | ||
| Electrics | Operating voltage:24V, negative grounded; Starter: 24V, 5.4KW Alternator: 28V, 1540W; Batteries: 2×12, 165Ah Cigar-lighter, horn, headlamp, fog light, brake lights, indicators and reverse lamp | ||
