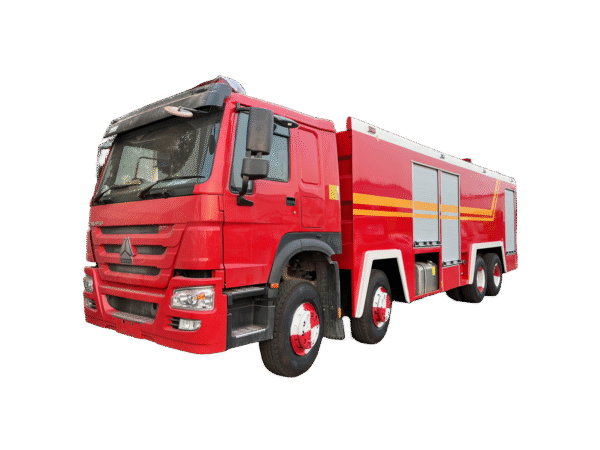

We are supplier of fire truck,include Water Foam Fire Truck,The chassis is HOWO brand.
Water Foam Fire Truck Specification
| Water tank | 15000L,Q235 carbon steel ,Sheet thickness 4mm, Man hole Diameter 450mm, | |||
| Foam tank
| 5000L,Q235 carbon steel ,Sheet thickness 4mm, Man hole Diameter 450mm, Equipment: Centrifugal pump:CB10/60 Flow speed:60L/s @ 1.0MPa. Fire monitor:PL48 48L/s | |||
| Typical truck model | ZZ1317N4667W | |||
| Overhang(front/rear)(mm) | 1500/2734 | |||
| Wheel base(mm) | 1800+4600+1350 | |||
| Max speed(km/h) | 90 | |||
| Curb weight(Kg) | 13420 | |||
| Gross Vehicle Weight(Kg) | 31000 | |||
| Overall dimensions(mm) | 12000*2500*3215 | |||
| Engine | Model | WD615.47 | ||
| Rated power | 371HP（273Kw/rpm） | |||
| Displacement | 9.726L | |||
| Type | 6 cylinder in-line with water cooling, turbo-charging & intercooling | |||
| Transmission | HW19710, 10 forward and 2 reverse | |||
| Fuel tanker capacity(L) | 400L | |||
| Clutch | Single- plate dry diaphragm spring clutch, diameter 430(C) mm, hydraulically operating with air assistance | |||
| Brake system | Service brake | Dual circuit compressed air brake | ||
| Parking Brake | Spring energy,compressed air operating on rear wheel | |||
| Parking Brake | Engine exhaust brake | |||
| Steering system | ZF8118,Hydraulic steering with power assistance | |||
| Front axle | HF9 x2 | |||
| rear axle | HC16 x 2 | |||
| Clutch | Φ430 diaphragm spring clutch | |||
| Color | As per customer’s requests | |||
| Tyre | 12.00R20(one spare Tyre) 13 units | |||
| Electrical system | Battery | 2x12V/165Ah | ||
| Alternator | 28V-1500kw | |||
| Starter | 7.5kw/24V | |||
| Cab | HW76 cab, one berth, with A/C. | |||
