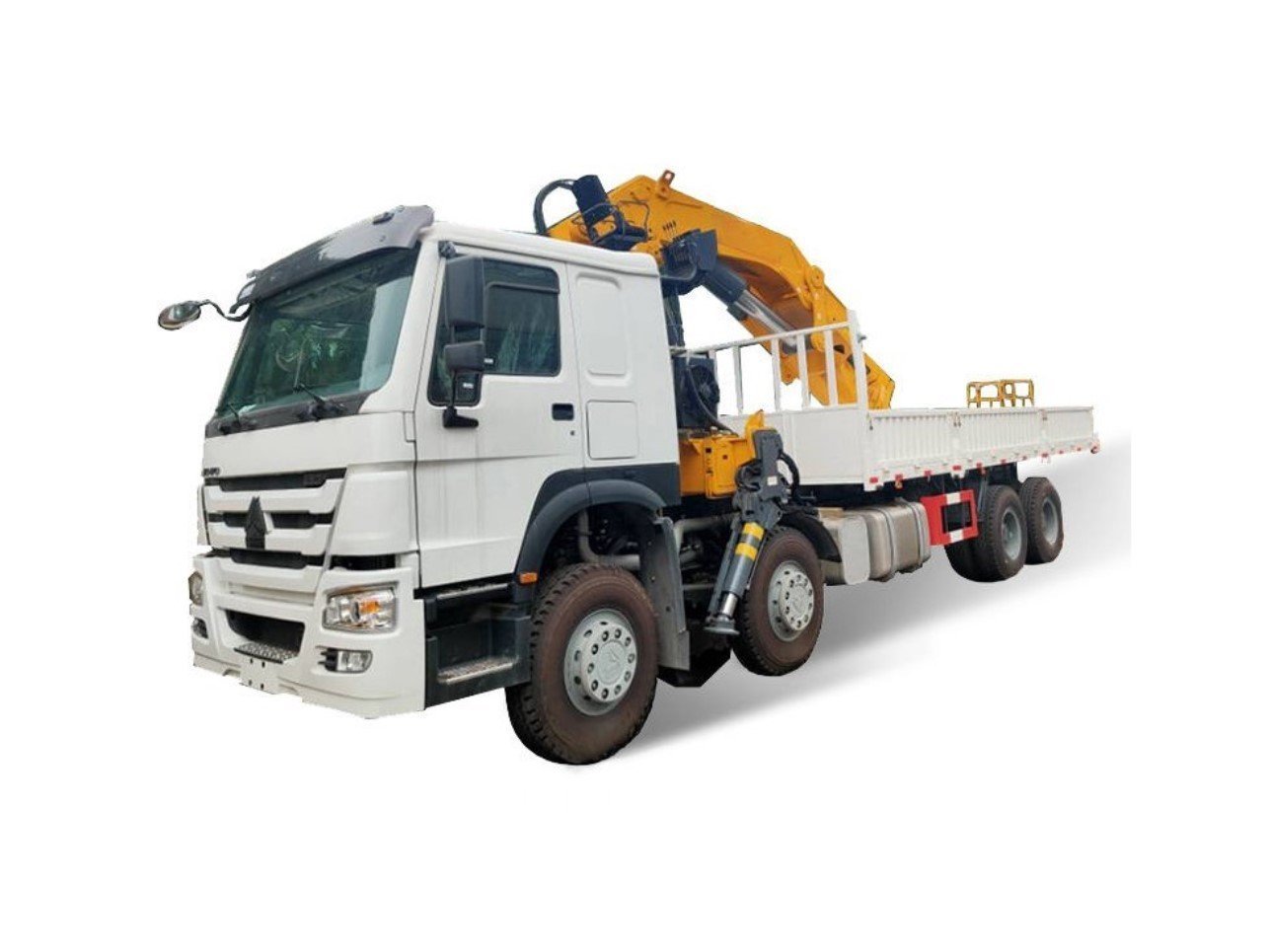

We provide the HOWO chassis Truck mounted crane for sale,The Crane is XCMG brand.This is an optimal combination in the field of truck mounted cranes.
|
HOWO 16 Tons Truck mounted Crane Specification
|
||
|
Cabin
|
Chassis model: ZZ1317N4667W
HW76 Cab with sleeper, Air conditioner, stereo radio, adjustable steering column, driver’s seat with hydraulic shock absorption, with fairing and side air deflector |
|
|
Vehicle Main Dimensions
|
(L x W x H)mm
|
12200x2550x3988
|
|
Wheel base (mm)
|
1800+4600+1350
|
|
|
Approach/Departure angle(°)
|
19/14
|
|
|
Weight in KGS
|
Gross Weight
|
31000
|
|
Curb Weight
|
18800
|
|
|
Steering
|
ZF8118,hydraulic steering with power assistance
|
|
|
Front axles loading capacity
|
HF9,drum
|
|
|
Rear axles loading capacity
|
HC16
|
|
|
Engine
|
Brand
|
WEICHAI
|
|
Model
|
WP12.400e210
|
|
|
Type
|
4-stroke direct injection, 6-cylinder,water cooling, turbo-charging and inter-cooling
|
|
|
Horse Power（HP)
|
400
|
|
|
Emission standard
|
Euro II
|
|
|
Gearbox
|
HW19710,10 forwards & 2 reverse
|
|
|
Tire
|
12.00R22.5,12 pieces including one spare tire
|
|
|
Brakes
|
Service brake: air brake
Parking brake: compressed air operating on rear wheels Auxiliary brake: engine exhaust brake |
|
|
Steering Wheel
|
LHD/rhd
|
|
|
Superstructure
|
||
|
Crane
|
XCMG SQ16ZK4Q with lift capacity 16tons
|
|
|
Cargo body size
|
8100*2450*600mm
|
|
|
Max Lifting capacity
|
KGS
|
16000
|
|
Max lifting moment
|
T.M
|
40
|
|
Max Hydraulic outreach
|
m
|
11.52
|
|
Slewing angle
|
°
|
360
|
|
Slewing torque
|
T.M
|
3.45
|
|
Stabilizer spread
|
mm
|
5610
|
|
Fitting space required
|
mm
|
1500
|
|
Width folded
|
mm
|
2458
|
|
Max. operating pressure
|
Mpa
|
31.5
|
|
Recommended pump capacity
|
l/min
|
63
|
|
Dead weight
|
kg
|
4780
|
