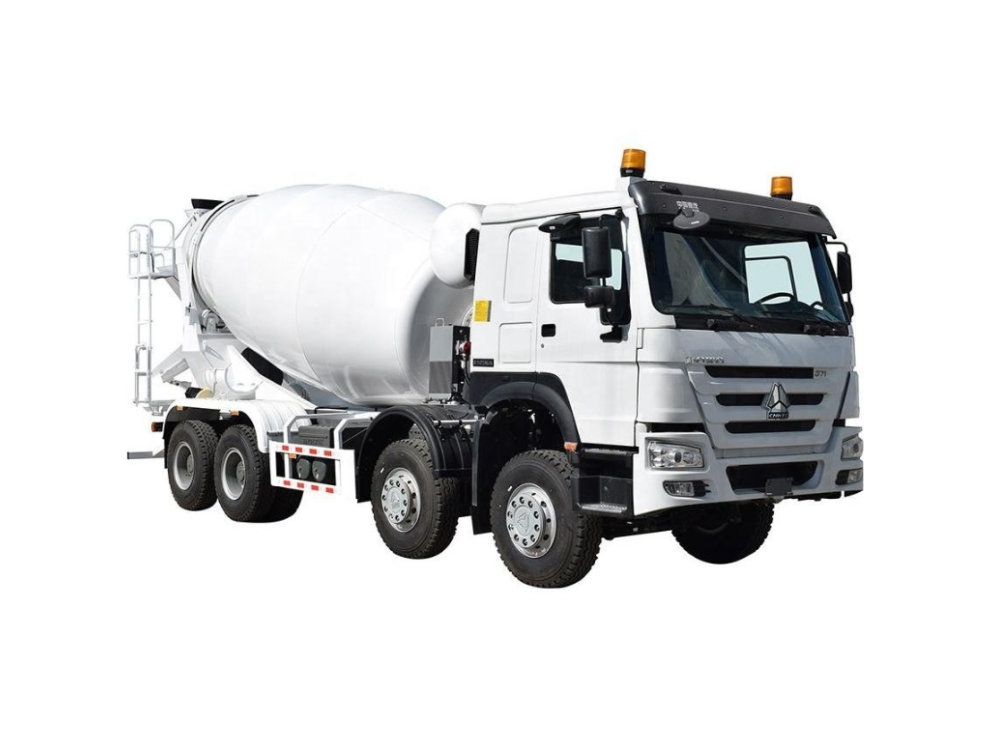

HOWO 12m3 Concrete Mixer Truck is a heavy-duty vehicle used for mixing and transporting concrete. It typically consists of a chassis, mixing drum, feeding and discharging systems, water system, control system, and other components.
With a capacity of 12 cubic meters, this concrete mixer truck usually employs hydraulic drive to rotate the mixing drum and ensure the uniform mixing of the concrete. The feeding system typically comprises a conveyor and a hopper for adding the raw materials to the mixing drum, while the discharging system usually consists of a discharge hopper and a chute for unloading the concrete. The water system is used for adding and controlling the water content of the concrete. The control system can regulate all the functions of the concrete mixer truck, such as starting, stopping, accelerating, and decelerating.
12m3 Concrete Mixer Trucks are commonly used on construction sites and large-scale engineering projects, such as bridges, tunnels, and highways. They can improve the efficiency of concrete production and transportation and ensure the quality and consistency of the concrete.
concrete mixer truck specifications
| Concrete Mixer Truck Capacity | 12m³ | |
| Dimension(Lx W xH)（unloaded）（mm） | 10820×2496×3900 | |
| Approaching angle/Departure angle（°） | 19/23 | |
| Overhang(front/rear) (mm) | 1500/1870 | |
| Wheel base (mm) | 1800+3800+1350 | |
| Max speed（km/h） | 75 | |
| Curb weight（kg） | 17320 | |
| Engine (Steyr technology, made in China) |
Model | WD615.69，water-cooled，four strokes，6 cylinders in line with water cooling，turbocharged and intercooling, directly injection |
| Fuel type | Diesel | |
| Power, max（kw/rpm） | 247/2200 | |
| Emission | EURO Ⅱ | |
| Fuel tanker capacity （L） | 300 | |
| Transmission | Model | HW15710，10 forward&2 reverse |
| Brake system | Service brake | Dual circuit compressed air brake |
| Parking brake | spring energy, compressed air operating on rear wheels | |
| Steering system | Model | ZF8098 |
| Front axle | HF9 | |
| Rear axle | HC16 | |
| Tyre | 12.00R20 | |
| Electrical system | Battery | 2X12V/165Ah |
| Alternator | 28V-1500kw | |
| Starter | 7.5Kw/24V | |
| Cab | HOWO70 cab(no sleeping beds,A/C),all-steel forward control,55º hydraulically tillable to the front,2- arm windscreen wiper system with three speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers. | |
