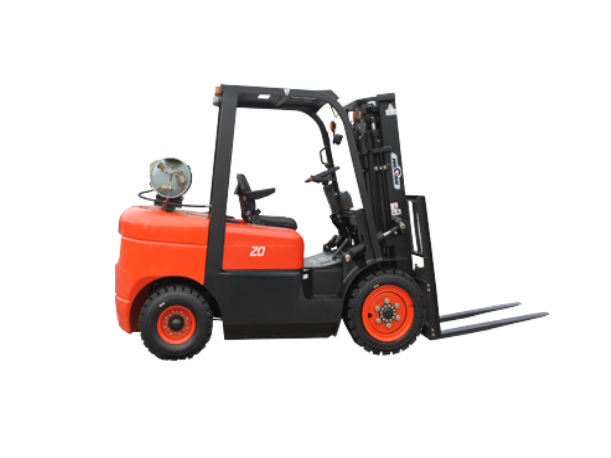

We offer gas forklift for sale,Gas forklift price is best in China with high quality.
Forklift Range we offer:
We supply full range Forklift Trucks
Diesel Forklift: 1.0ton 1.5ton, 2 ton, 2.5 ton, 3 ton, 3.5 ton, 4 ton, 4.5 ton, 5 ton, 6 ton, 7 ton, 8 ton, 10 ton
Gasoline/Lpg Forklift: 2 ton, 2.5 ton, 3 ton, 3.5 ton,
Electric Forklift: 1.5 ton, 2 ton, 2.5 ton, 3 ton, 3.5 ton,
Rough Terrain Forklift: 2.0-4 ton for both 2WD and 4WD
Electric Stacker, Electric Pallet Truck
Full-electric Stacker: Loading Capacity 1000kg, 1200kg, 1400kg, 1600kg, 2000kg
Electric Pallet Truck: Loading Capacity 1500kg, 2000kg, 2800kg, 3000kg, 3500kg.
Semi Electric Stacker:
Hand Pallet Truck
| General | 1 | Model | CPQYD20FR | |
| 2 | Rated capacity | kg | 2000 | |
| 3 | Load center | mm | 500 | |
| 4 | Power type | Gasoline/LPG | ||
| 5 | Transmission | Hydraulic | ||
| Dimensions | 6 | Lifting height | mm | 3000 |
| 7 | Free lifting height | mm | 60 | |
| 8 | Turning radius | mm | 2450 | |
| 9 | Overall length | mm | 3605 | |
| 10 | Overall width | mm | 1160 | |
| 11 | Overall height (mast lowered) |
mm | 2095 | |
| 12 | Overall height (mast raised) |
mm | 4080 | |
| 13 | Overall height (overhead guard) |
mm | 2095 | |
| 14 | Fork length | mm | 1070 | |
| 15 | Fork width | mm | 100 | |
| 16 | Fork thickness | mm | 40 | |
| Performance | 17 | Max. driving speed (with/without load) |
km/h | 17/19 |
| 18 | Max. lifting speed (with load) |
mm/s | 400 | |
| 19 | Max. traction (with/without load) |
kn | 14/9 | |
| 20 | Gradeability (with/without load) |
% | 15/20 | |
| 21 | Tilting angles (forward/backward) |
° | 6/12 | |
| 22 | Service weight | kg | 3320 | |
| Engine | 23 | Engine model | BY491GP engine |
|
| 24 | Power | kw | 41 | |
| 25 | Rated speed | rpm | 2800 | |
| 26 | Displacement | L | 2.237 | |
| 27 | No. of cylinder | 4 | ||
| Wheel | 28 | Front overhang | mm | 451 |
| 29 | Wheel base | mm | 1640 | |
| 30 | Front tread | mm | 970 | |
| 31 | Rear tread | mm | 970 | |
| 32 | Front tire | 7.00-12 | ||
| 33 | Rear tire | 6.00-9 |
