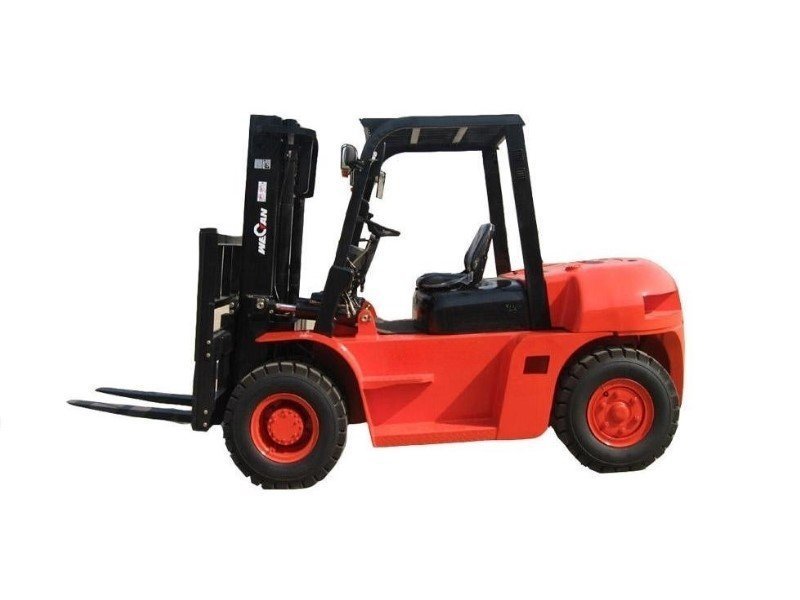

China Forklift Price is best and have best quality.6 Ton Diesel Forklift Truck is widely used for loading, unloading and transporting the packaged goods in the construction site, factories, warehouses, stations, wharves, ports and so on. With other attachments of forklift trucks, it can be used for the handling of the bulk goods and unpackaged goods.
| General | 1 | Model | CPCD60 | |
| 2 | Rated capacity | kg | 6000 | |
| 3 | Load center | mm | 600 | |
| 4 | Power type | Diesel | ||
| 5 | Transmission | Hydraulic | ||
| Dimensions | 6 | Lifting height | mm | 3000 |
| 7 | Free lifting height | mm | 150 | |
| 8 | Turning radius | mm | 3430 | |
| 9 | Overall length | mm | 4760 | |
| 10 | Overall width | mm | 1995 | |
| 11 | Overall height (mast lowered) |
mm | 2500 | |
| 12 | Overall height (mast raised) |
mm | 4420 | |
| 13 | Overall height (overhead guard) |
mm | 2420 | |
| 14 | Fork length | mm | 1220 | |
| 15 | Fork width | mm | 150 | |
| 16 | Fork thickness | mm | 60 | |
| Performance | 17 | Max. driving speed (with/without load) |
km/h | 21/23 |
| 18 | Max. lifting speed (with load) |
mm/s | 470 | |
| 19 | Max. traction | kn | 53 | |
| 20 | Gradeability (with/without load) |
% | 20/25 | |
| 21 | Tilting angles (forward/backward) |
° | 6/12 | |
| 22 | Service weight | kg | 8640 | |
| Engine | 23 | Engine model | China III | |
| 24 | Power | kw | 66 | |
| 25 | Rated speed | rpm | 2200 | |
| 26 | Displacement | L | 4.3 | |
| 27 | No. of cylinder | 4 | ||
| Wheel | 28 | Front overhang | mm | 635 |
| 29 | Wheel base | mm | 2250 | |
| 30 | Front tread | mm | 1470 | |
| 31 | Rear tread | mm | 1700 | |
| 32 | Front tire | 8.25-15-14 | ||
| 33 | Rear tire | 8.25-15.14 |
