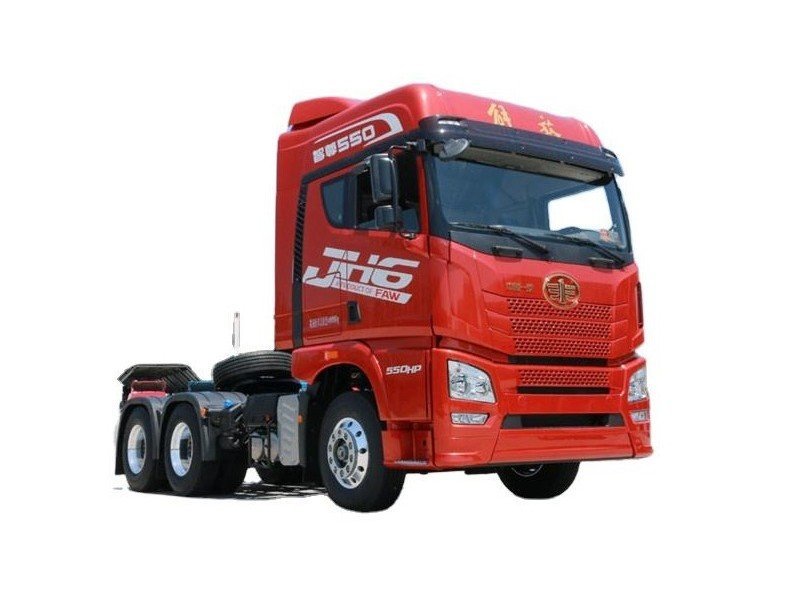

FAW JH6 Tractor Head Truck 4*2 & 6*4 Model
Specification of FAW JH6 Tractor Head Truck:
Drive line: 6×4
Cab:
Cab Control: Forward Tilt Cab
Seating: Driver + 1 Passenger
Type/Extras: Sleeper Cab with Aircon, Radio with USB, Suspension seat
Engine:
Model: CA6DM3-50E5
Capacity: 12520 cm3
Power@r/min (kW): 370 @ 1800rpm
Torque@r/min (Nm): 2300 from 1000 to 1400rpm
Dimensions:
Wheelbase (WB): 3300+1350mm
Overall Length (OL): 6895mm
Cab Length (A): 2646mm
Overall Width (OW): 2495mm
Overall Height (OH): 3910mm
Cab to Rear Axle (CA): 4152mm
Minimum Turning Radius: 7500mm
Minimum Turning Diameter: 15000mm
Ground Clearance: 295mm
Transmission: ZF12TX2421TD
Clutch:
Diameter: 430 mm
Type: Dry Type Single Plate
Operation: Air Assisted
Steering:
Gear Ratio: 23:1
Type: Recirculating Ball
Operation: Hydraulic Power Steering
Brakes:
System Type: Full Air – Dual Circuit with ABS
Park/Emergency System: Spring Brake/Rear Booster
Auxiliary Braking: Engine Brake, Intarder
Fuel Tank:
Number: Two
Total Capacity: 500+500 Litre
Wheels:
Tyre Size: 315/80R22.5-20
Rim Size: 9.00 X 22.5
Type: Tubeless Radial
