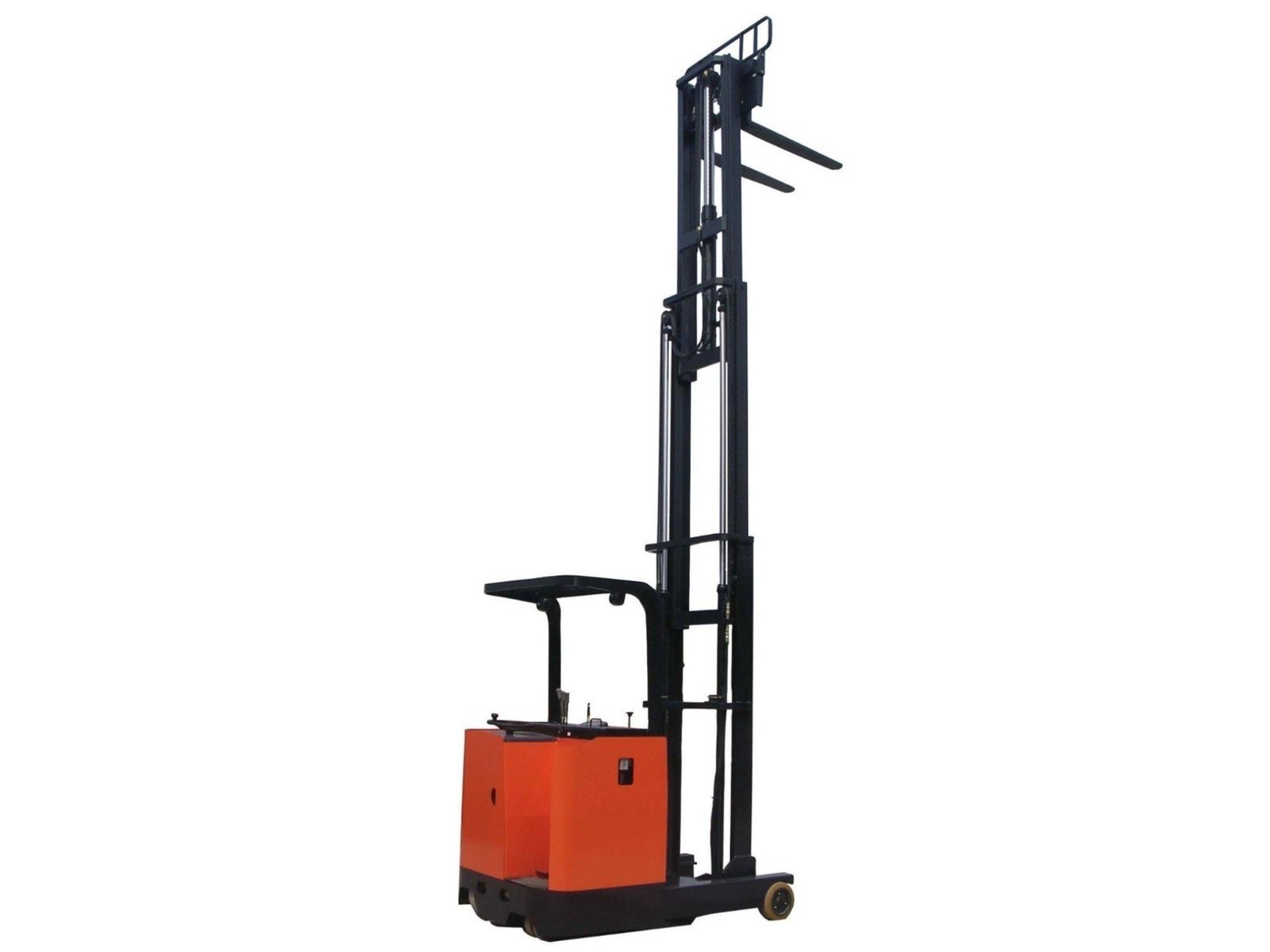

The cost-effective electric reach truck is a versatile and efficient solution for your warehouse needs. With its compact design and excellent maneuverability, this reach truck can easily navigate narrow aisles and tight spaces.
Equipped with a powerful electric motor, this reach truck can lift loads of up to 2.5 tons to a height of 3 meters, making it ideal for stacking and retrieving goods in high-rack warehouses. The reach function allows the operator to extend the forks to reach deeper into the racks, while the tilt function allows for easy adjustment of the load angle.
The reach truck also features a user-friendly control system that allows for smooth and precise operation, ensuring maximum safety and efficiency. With its durable construction and low maintenance requirements, this reach truck is a reliable and cost-effective investment for any warehouse operation.
Overall, the cost-effective electric reach truck from our Factory is a great choice for businesses looking for a reliable and efficient material handling solution.
| Model No. | TF15-30 | TF20-30 | TF25-30 | |
| Rated Capacity (KG) | 1500 | 2000 | 2500 | |
| Operate Type | Stand-on | Stand-on | Stand-on | |
| Max. Lifting Height (MM) | 3000 | 3000 | 3000 | |
| Min. Turning Radius (MM) | 1625 | 1965 | 1965 | |
| Min. Stacking Aisle—mm (1000*1000 Pallet) | 2622 | 2895 | 2895 | |
| Max Travel Speed km/h-laden/un laden | 7.5/8.5 | 7.0/8.0 | 7.0/8.0 | |
| Load center MM | 500 | 500 | 500 | |
| Fork Dimensions-L/W/T—mm—8. | 1070*100*35 | 1070*100*45 | 1070*100*45 | |
| Max. Grade ability —% | 10 | 10 | 10 | |
| Lifting Speed (MM/S)-laden/un laden | 117/243 | 110/243 | 110/243 | |
| Overall Length (MM) | 2266 | 2468 | 2468 | |
| Overall Width (MM) | 1098 | 1258 | 1258 | |
| Height-Overhead guard–mm | 2320 | 2320 | 2320 | |
| Height—Mast Lowered(MM) | 2080 | 2084 | 2084 | |
| Height-Mast Extended w/ Load-Backrest -mm | 3885 | 3875 | 3875 | |
| Height–Free Lift –mm | 100 | 100 | 100 | |
| Tilt Angle—-Upward/Downward–deg. | 3/5 | 3/5 | 3/5 | |
| Fork Spread Range (MM) | 220-662 | 247-780 | 247-780 | |
| Reach Stroke | 560 | 685 | 685 | |
| Min Ground Clearance–mm | 80 | 80 | 80 | |
| Wheel Type | Polyurethane Solid Tire | |||
| Driving Wheel (MM) | Φ343×108 | Φ343×108 | Φ343×108 | |
| Balance Wheel (MM) | Φ180×76 | Φ180×76 | Φ180×76 | |
| Front Wheel (MM) | Φ267×114 | Φ267×114 | Φ267×114 | |
| Battery V/AH- “TONGBA”BRAND | 48V /300 AH | 48V/400 AH | 48V/400 AH | |
| Service Brake | MECH. | |||
| Parking Brake | MECH. | |||
| Charger-Intelligent | 48V/40A | 48V/50A | 48V/50A | |
| Driving Motor (KW) | 5.5 (AC) | 5.5 (AC) | 5.5(AC) | |
| Lifting Motor (KW) | 6.3 | 7.5 | 7.5 | |
