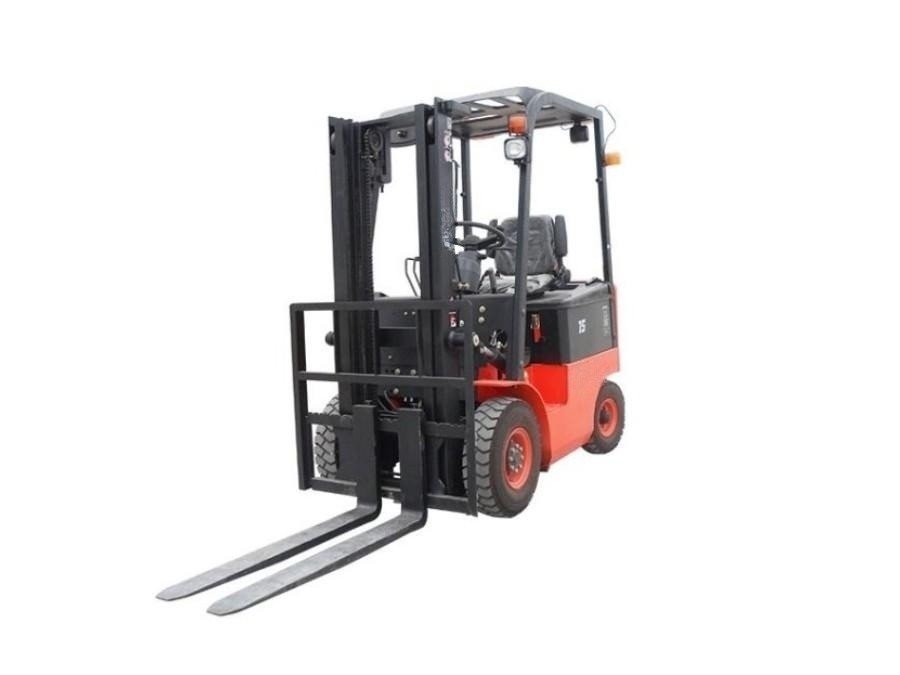

High Quality Electric Forklift For Sale Application Area:
Warehouse,Port,Factory,Distribution Center,Logistics
Buy electric forklift with best price.
| General | 1 | Model | CPD15J | |
| 2 | Rated capacity | kg | 1500 | |
| 3 | Load center | mm | 500 | |
| 4 | Power type | Battery | ||
| Dimensions | 5 | Lifting height | mm | 3000 |
| 6 | Free lifting height | mm | 60 | |
| 7 | Turning radius | mm | 1820 | |
| 8 | Overall length | mm | 2960 | |
| 9 | Overall width | mm | 1086 | |
| 10 | Overall height (mast lowered) |
mm | 2115 | |
| 11 | Overall height (mast raised) |
mm | 4015 | |
| 12 | Overall height (overhead guard) |
mm | 2115 | |
| 13 | Fork length | mm | 1070 | |
| 14 | Fork width | mm | 100 | |
| 15 | Fork thickness | mm | 35 | |
| Performance | 16 | Max. driving speed (with/without load) |
km/h | 12.5/14 |
| 17 | Max. lifting speed (with load) |
mm/s | 285 | |
| 18 | Max. traction (with load) |
kn | 6.5 | |
| 19 | Gradeability (with load) |
% | 15 | |
| 20 | Tilting angles (forward/backward) |
° | 6/12 | |
| 21 | Service weight | kg | 3050 | |
| Motor | 22 | Traction motor | XQ-5-4A3 | |
| 23 | Lifting motor | XQD-7.5-3C | ||
| Battery | 24 | Battery type | D-440 | |
| 25 | Battery voltage/capacity | V/Ah | 48/440 | |
| Wheel | 26 | Front overhang | mm | 436 |
| 27 | Wheel base | mm | 1250 | |
| 28 | Front tread | mm | 900 | |
| 29 | Rear tread | mm | 920 | |
| 30 | Front tire | 6.50-10 | ||
| 31 | Rear tire | 5.00-8 |
