FIND CRAWLER TRACTOR FOR SALE!HIGH QUALITY TRACTOR WITH COMPETIVE PRICE.
1. For optimal trafficability and steering performance, this range of agricultural vehicle can be designed with rubber track.
2. The utilization of hydraulic power steering gear greatly reduces driver’s labor intensity.
3. To obtain good reliability, our rubber tracked crawler adopts simple beam structure for the final gear.
4. The new seal structure for the rear gear of our 70-90HP crawler tractor can reduce the steering oil intake.
5. The crawler tractor with cab adopts (4F+2R) sliding-gear transmission. The reasonable gear range makes it suitable for farmland and bulldozing.
6. Equipped with the diesel engine produced on the basis of British technology, our diesel crawler tractor is quite popular due to the large torque, powerful overload capacity, low fuel consumption, and environmental protection.

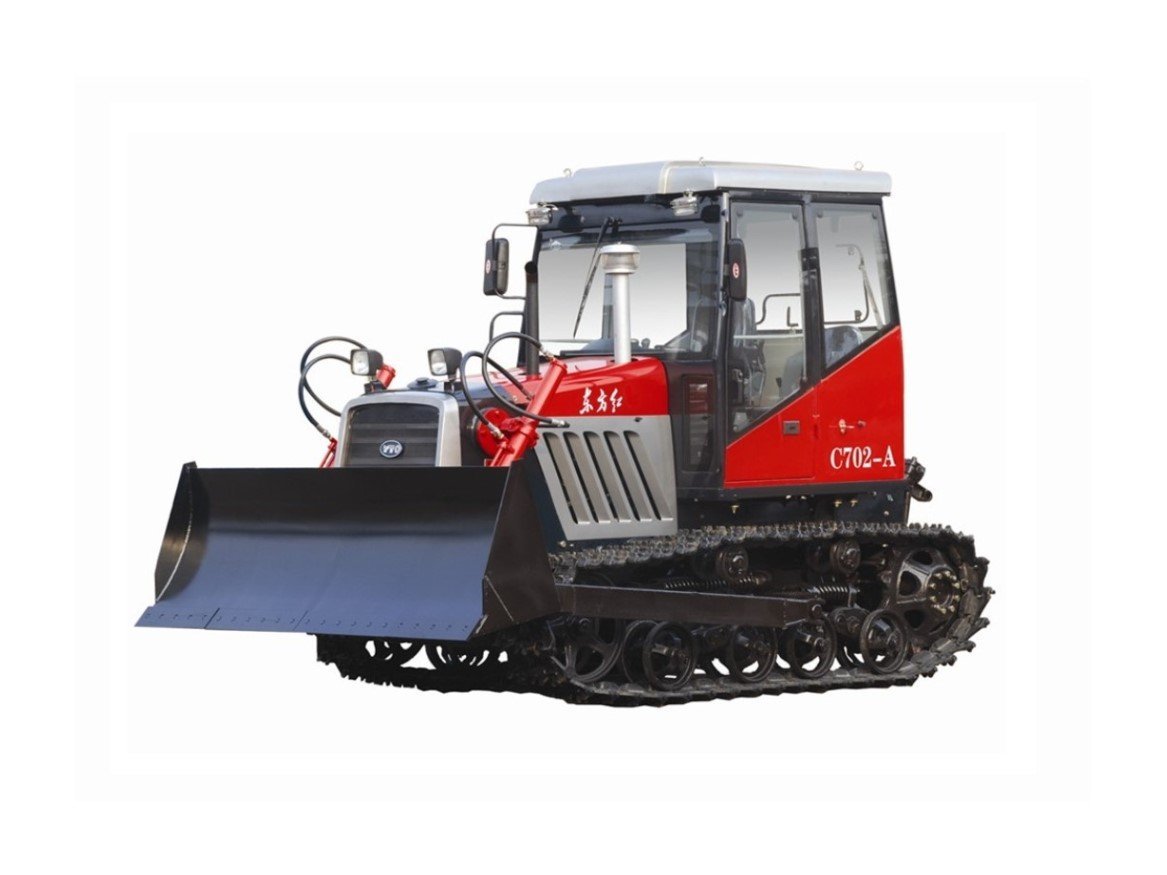

| Model | C702-A | C802 | C902 |
| 70-90HP crawler tractor | |||
| Overall dimension (L×W×H) (mm)(with dozer blade) | 4870×2462×2766 | ||
| Overall dimension (L×W×H) (mm)(without dozer blade) | 4466×1835×2766 | ||
| Min. operating mass (kg) | 6630 (with dozer blade) | 6890 (without dozer blade) | |
| Track gauge (mm) | 1435 | ||
| Wheelbase (mm) | 1622 | ||
| Track shoe width (mm) | 390 | ||
| Ground pressure (kPa) | 47.4 (with dozer blade) | 49.2 (without dozer blade) | |
| Diesel engine | |||
| Model | LR4B3-22 | LR4A3Z-22 | LR6B5-22 |
| Type | In-line, water cooled, four stroke, supercharged | In-line, water cooled, four stroke | In-line, water cooled, four stroke |
| Rated power and rotating (kW/rpm) | 51.5/2200 | 58.8/2200 | 66.2/2200 |
| Gearbox | |||
| Gear shift (F/R) | 4/2 | ||
| Speed range (km/h)(F/R) | 3.67-9.03/3.51-5.59 | ||
| Power of PTO shaft (kW) | 44 | 49 | 56 |
| PTO rotating speed (rpm) | 750 | ||
| Clutch | Double disc, single acting | ||
| Working device | |||
| Suspension type | Rear-mounted two-point or three-point suspension (type II) | ||
| Plowing depth control method | Height adjustable | ||
| Lifting force (KN) | 14 | ||
| Size of dozer blade (W×H)(mm) | 2462×850 | ||
| Embedded depth of dozer blade (mm) | 290 | ||
