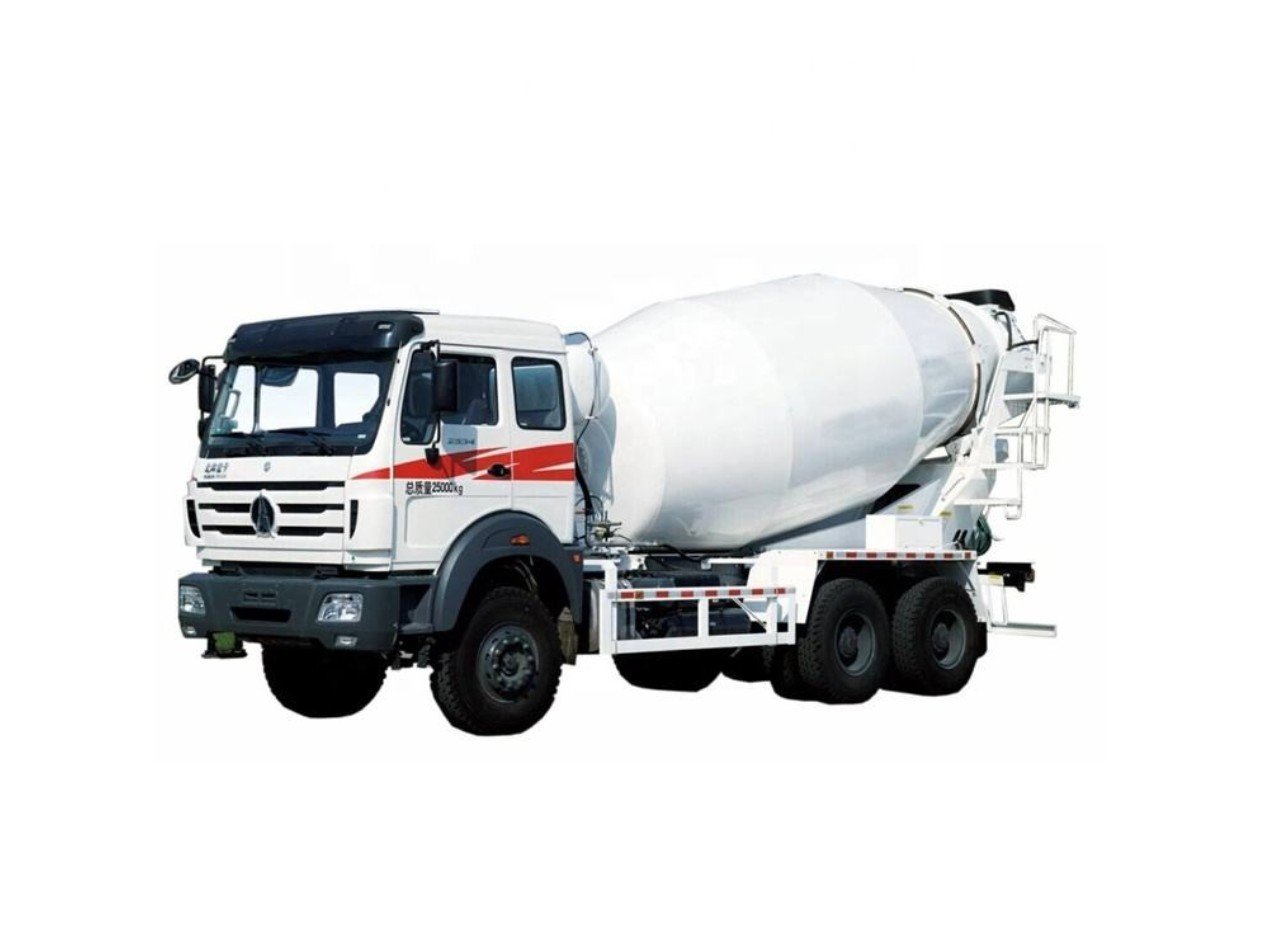

We are a supplier of concrete mixer truck, dedicated to serving customers with the most competitive prices and high-quality products. We offer a variety of specifications for concrete pump trucks, and the chassis can be selected according to customer requirements, including Chinese brands like BEIBEN, HOWO, SHACM, and FAW.
Our comprehensive after-sales service for concrete mixing trucks ensures that you have access to replacement parts, guaranteeing long-term usability of the product. We are committed to addressing your spare parts supply concerns and ensuring your sustained satisfaction.
| 2529BY /6×4/3450+1450/Short Cab/LHD or RHD | ||||
| Dimension | 9300*2500*3900mm | |||
| Approaching angle/Departure angle | 26/20° | |||
| Overhang(front/rear) | 1410/2640mm | |||
| Wheel base | 3800+1450mm | |||
| Max speed | 80km/h | |||
| Curb weight | 13650kg | |||
| Loading capacity | 11220kg | |||
| Slope climbing capability | Max.40% | |||
| Engine | Model | WP10.340E32,water-cooled,four strokes,6 cylinders in line,turbocharged, directly injection | ||
| Displacement | 9.726L/Diesel | |||
| Stroke | 126/130mm | |||
| Max. power | 250/2200 (kw/rpm) | |||
| Max.torque | 1350/1200-1600(Nm/rpm) | |||
| Emission stantard | EuroⅢ | |||
| Fuel tanker capacity | 300L | |||
| Clutch | 430, Single dry frictional disc,Hydraulic boosting | |||
| Gearbox | 9T-160, mechanism,9 forward gears,1 reverse gear, manual operated, with synchronizer | |||
| Gear ratio of gear box | 12.60/8.39/6.31/4.64/3.43/2.45/1.84/1.35/1.00 R: 11.02 | |||
| Suspension system | Front | Non-free standing leaf spring,telescopic shock absorber with stablizer bar suspension , 10pcs | ||
| Rear | Non-free standing stablization spring, balance suspension system, 13pcs | |||
| Brake system | Service brake | Brake gap can be adjusted automatically, double circulation air brake system | ||
| Assistant brake | Engine exhaust brake | |||
| Park brake | Potential springs pressing on middle and rear wheels | |||
| Steering system | TAS85,whole circulation in ball, hydraulic booster | |||
| Frame | Fish belly shape, variable width, variable sections | |||
| Front axle (Mercedes Technology) | Double-shoe pneumatic brake, non-driving steering axle | |||
| Middle and Rear axle (Mercedes Technology) | Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle | |||
| Tyre | 12.00R20 Radial | |||
| Electrical system | Battery | 2X12V/135Ah | ||
| Generator | 28V-35A | |||
| Starter | 5.4Kw/24V | |||
| Cabin | NG80B Long cabin with single sleeper; | |||
| Full steel skeleton structure, covered with double layer steel plate; | ||||
| Can be tipped forwardly; | ||||
| High back with arm seat for driver, high back seat for co-driver; With inner A/C | ||||
| Main technical parameters of concrete mixer | ||||
| Drum performance parameter | Geometric Volume m3 | 15.5 m3 | ||
| Effective Volume m3 | 10 m3 | |||
| Filling Ratio % | 64.50% | |||
| Gradient of the Drum ° | 15° | |||
| Filling speed m3/min | ≥3 | |||
| Discharging Speed m3/min | ≥2 | |||
| Surplus Ration % | <1% | |||
| Range of Slump mm | 20~300 | |||
| Hydraulic System | Pump | Eaton 54 (ACA542337R) | ||
| Motor | Eaton 54 (HHD542337R) | |||
| Gear Box | PMB6sp | |||
| Water supply system | Volume of water tank | 400L | ||
| Water supply type | Air pressure Type | |||
