We are a water tanker truck supplier and can provide water tanker trucks with BEIBEN, HOWO, and SHACMAN chassis.
1.Tanker volume series
3000L, 4000L, 6000L, 8000L, 10000L, 12000L,15000L,16000L,18000L, 20000L, 22000L, 24000L,26000L,28000L,30000L, 32000L, 35000L, 38000L,40000L, 42000L, 45000L, 50000L, 55000L, 60000L,etc.
2.Tanker material
carbon steel, stainless steel, aluminum alloy, pure aluminum,lined rubber, rotational molding, plastic, FRP, etc..
3.Drive system of water tank truck
4*2, 4*4, 6*4, 6*6, 8*4,etc
We offer water tankers crafted from steel, stainless steel, or aluminum, tailored for transporting both potable and non-potable water. Each type comes with its unique pumping system designed to meet specific requirements.

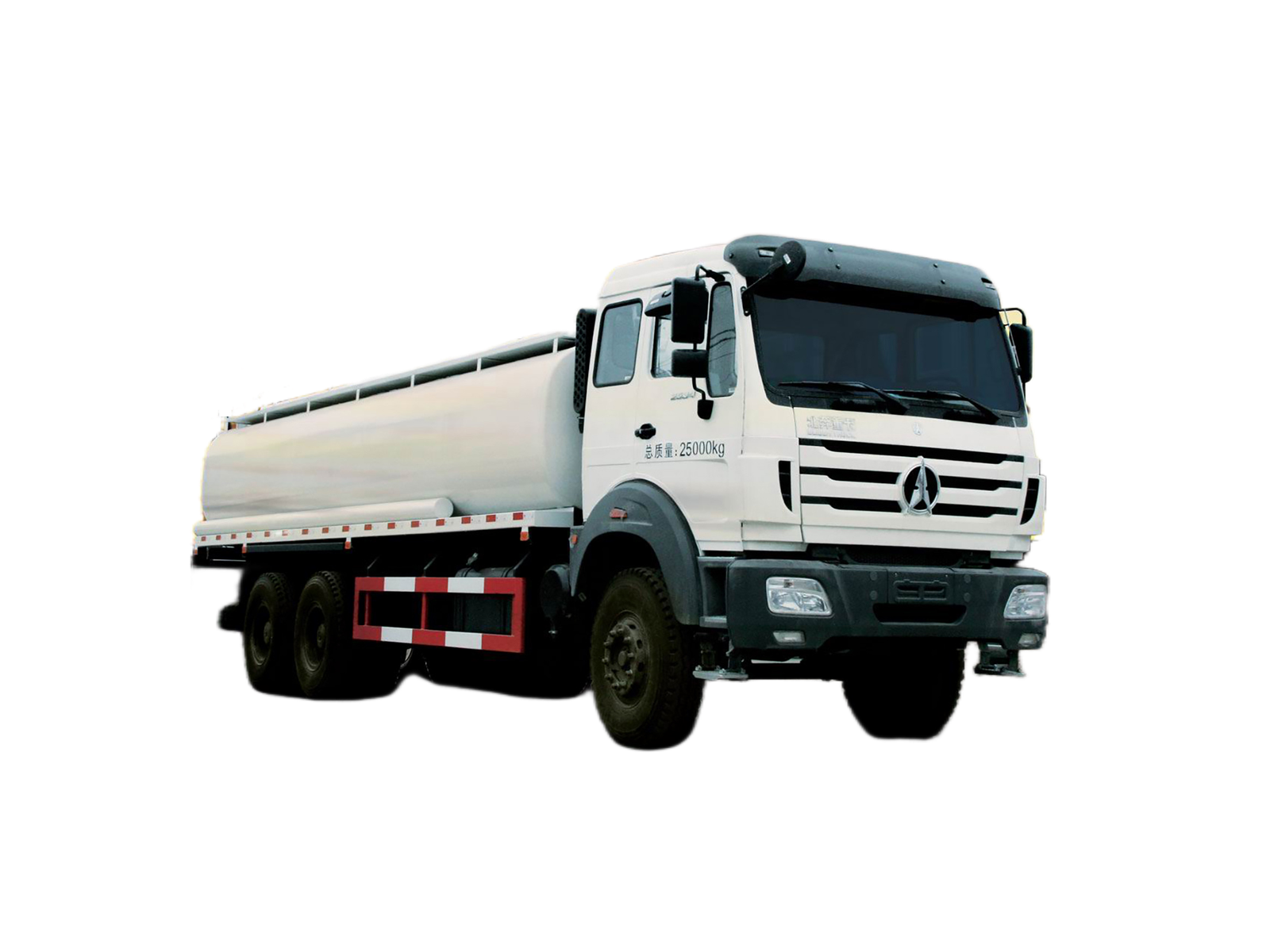

BEIBEN 20000L Water tanker truck Specification
| Traction type | 6X4 | |
| Driving type | LHD/RHD | |
| Dimension(Lx W xH)（unloaded） | 10576×2500×3430 | |
| Wheel base(mm) | 5050+1450 | |
| Max speed（km/h） | 90 | |
| Curb weight（kg） | 12000 | |
| Loading Weight（kg） | 25,000 | |
| Engine Steyr technology, made in China | Model:WD615.340 | water-cooled，four strokes，6 cylinders in line，turbocharged, directly injection With the exhaust valve brake, EGR (gas exhausted recycling), deisel engine |
| Displacement（L） | 9.726/Diesel | |
| Bore X stroke(mm) | 126/130 | |
| Max power（kw/rpm） | 247/2200 (340hp) | |
| Max torque（Nm/rpm） | 1350/1300-1600 | |
| Emission | EURO II | |
| Fuel tanker（L） | 400L steel fuel tanker | |
| Clutch | Model | 430 Diaphragm type |
| Gearbox | Model | 9JS150 (Fuller) mechanism, 9gears, 1reverse gear |
| Brake system | Service brake | Brake gap can be adjusted automatically, double circulation air brake system |
| Assistant brake | Engine exhaust brake | |
| Park brake | Potential springs pressing on middle and rear wheels | |
| Steering system | Model | ZF8098 |
| Frame | Fish belly, shape, variable width, variable sections, side beam structure | |
| Front axle (Mercedes Benz Technology) | 7.5T Double-shoe pneumatic brake, non-driving steering axle
| |
| Middle and Rear axle (Mercedes Benz Technology) | 13T Double-shoe pneumatic brake, casting, double reduction driving axles with inter-wheel & inter-axles differential locks
| |
| Tyre | 12.00R20 Radial tyre Number of tyre:10+1 spare | |
| Electrical system | Battery | 2X12V/135Ah |
| Generator | 28V-35A | |
| Starter | 5.4Kw/24V | |
| Cab | Mercedes-Benz technology NG80B long Cabin, single sleeper with air-conditioner Full steel skeleton structure, covered with double layer steel plate; Can be tipped forwardly; | |
| Water tank | ||
| Tank capacity | 20,000 liters | |
| Thickness of the tanker body | the thickness of the shell is 5mm approx; | |
| Dish ends | the thickness of the shell is 6mm approx; | |

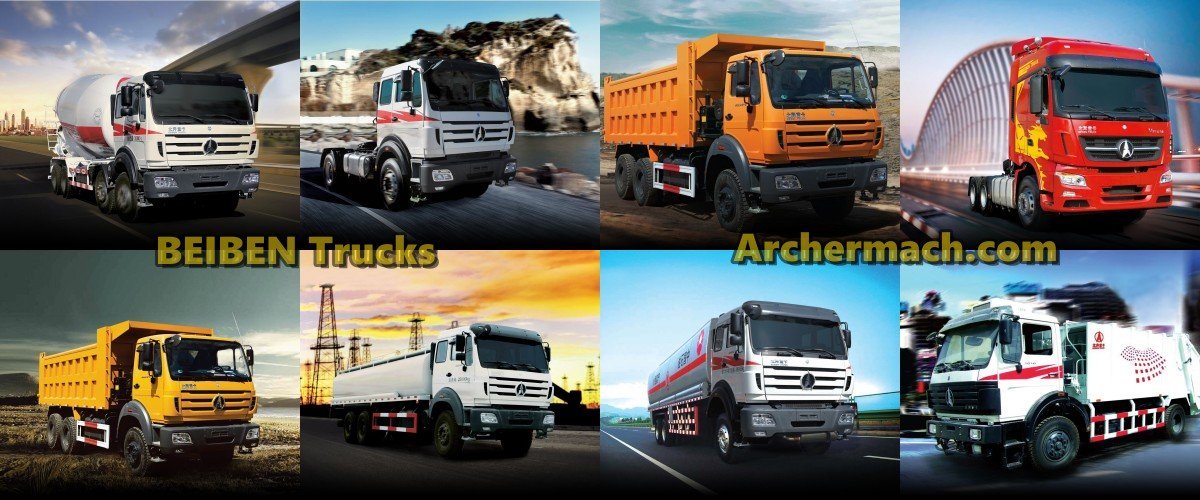

ALL KINDS OF BEIBEN TRUCKS Dump Truck,Tractor,Water tanker truck
