We are BEIBEN Truck Supplier,We provide BEIBEN tractor head and dump truck.Below is the Specification.

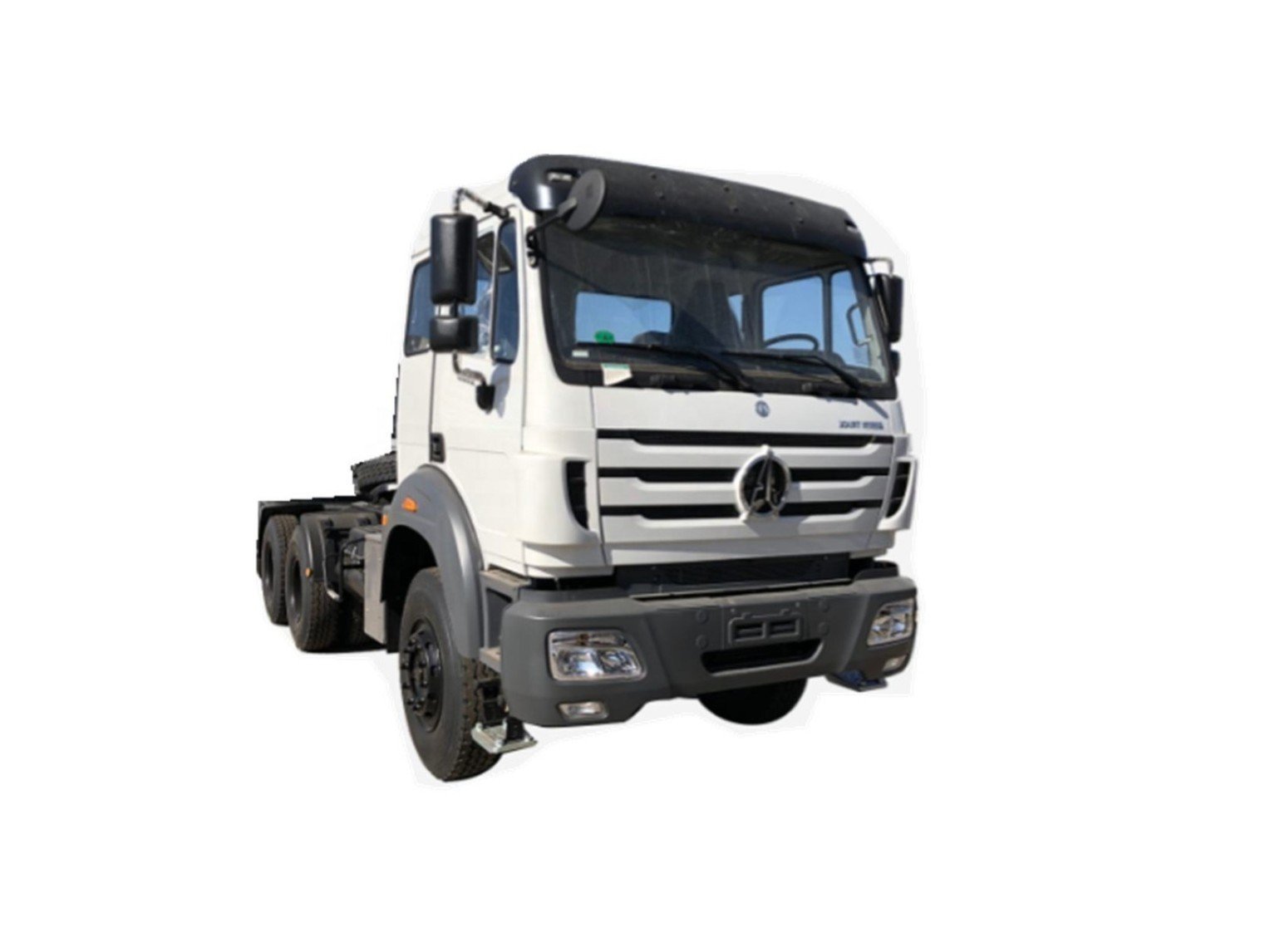

| NORTH BENZ | BEIBEN NG80B 6X4 Tractor Head Specification | |
| Model | ND42501B34J7 |
| Driver’s cab | Long High cabin, two sleepers with A/C |
| Engine | Maker: WEICHAI |
| Diesel 4 stroke direct injection diesel engine, 6 cylinder in-line with water cooling,turbo-charging & inter cooling | |
| Engine model: WP12.420E32 | |
| EURO II/EUROIII emission standard | |
| Maximum output:420hp@2200rpm | |
| Number of cylinder:6 | |
| Displacement: 11.926L | |
| Clutch | Single-plate dry coil-spring clutch,diameter 420mm,hydraulically operating with air assistance |
| Transmission | Fuller 12JS200T transmission. |
| Front Axle | Benz 7.5tons drum brake |
| Rear Axle | Benz type double reduction drive axle, ratio=5.2 |
| Steering | TAS85 |
| Wheel & Types | Rims:8.5-20 |
| Tyre:12.00R20 | |
| Optional: 12R22.5//315/80R22.5 | |
| Radial tire is optional | |
| Electrics | Operating voltage: 24V,negative grounded |
| Dimensions in mm | Wheel base : 3450+1450 |
| Overall size: 7050x2500x3840 | |
| Weight in kg | Kerb. mass: 8800 kg |
| Total mass: 40000kg | |
| Performance | Maximum driving speed(km/h) 90 |
| Fifth wheel | 16070kg |
