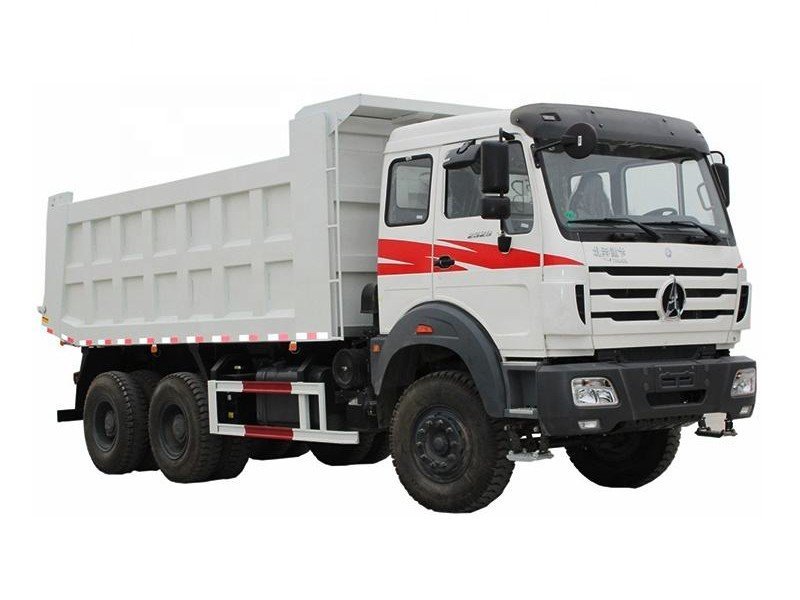

BEIBEN 2638 6×4 Dump Truck Specification
|
Engine Brand/Power
|
WEICHAI brand engine/340hp 360hp 380hp
|
|
The total mass
|
25t
|
|
Cab
|
NG80B short cab without sleeper, Full steel skeleton structure, covered with double layer steel plate;
Can be tipped forwardly; |
|
Engine
|
WP10.340E32，water-cooled，four strokes，6 cylinders straight inline，turbocharged, Euro2
Emission,250Kw/2200rpm(340HP) |
|
Clutch
|
Φ430,Diaphragm Spring，Hydraulic boosting
|
|
Loading Weight (kg)
|
30000kg
|
|
Loading Capacity Front Axle(Kg.)
|
Middle axle: HD7/016DGS-13/5.263
|
|
Loading Capacity Rear Axle(Kg.)
|
Rear axle: HL7/015DS-13/5.263
|
|
Tyre stype/Sizes
|
12.00R20（10+1sparetire)
|
|
Wheelbase(mm)
|
3800+1450
|
|
Front overhang/rear overhang(mm)
|
1410/1687
|
|
BEIBEN dump truck Dimension
|
8825×2550×3430mm
|
|
TIPPER BODY
|
|
|
Material
|
Q345 High carbon steel
|
|
Thickness of Dumper Box
|
Bottom:8mm, Side:6mm
|
|
Dumper box dimension
|
5800x2350x1500mm
|
|
Drive model
|
6×4, 6×6,8×4
|
|
Color
|
yellow, white, green…
|
|
Condition
|
New model
|
