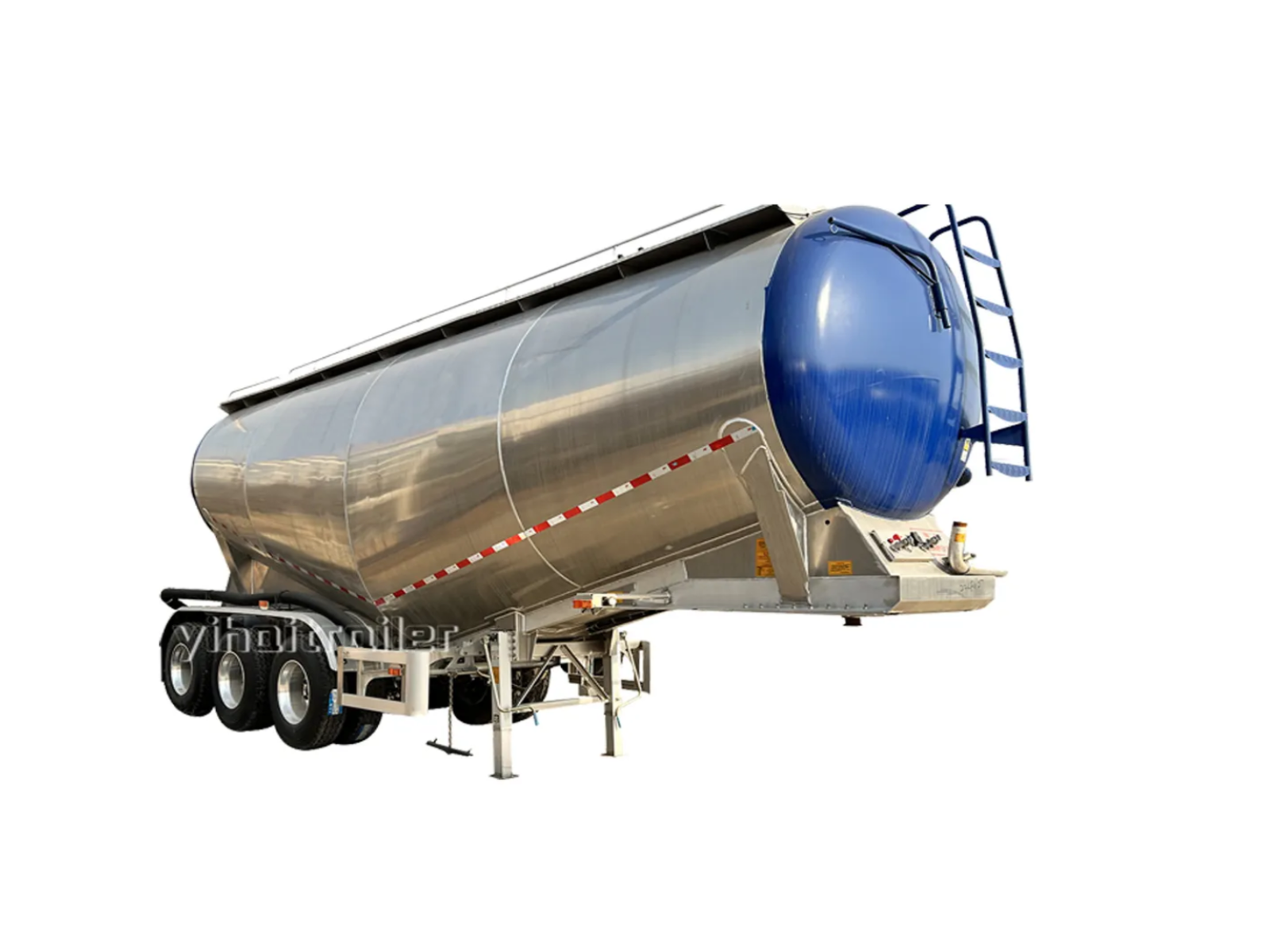

Aluminum Bulk Cement Tank Trailer

3 Axle Aluminum Bulk Cement Tank Trailer choose high-tensile carbon steel material, welded by automatic Submerged-Arc processes.

The shape is round, V or M tanks, the material can choose carbon steel, stainless steel, aluminum alloy.

The main volumes of cement tanker trailer are 25/30/35/39/40/55/65 cubic meters.

Powder tank trailers are V-shaped and W-shaped, and the materials are carbon steel, stainless steel, and aluminum alloy.

Feature:

1. Loading rate >98%  fully filling

2. Residual rate <0.2%

3. Delivery height >25m  suitable most silo

4. Faster unloading >1.5ton/min  save fuel

3 Axle Bulk Cement Tank Trailer Tank Body

Shape :Optional(One silo with V type or Two, Three silos design

Dimension :12000mm*2490mm*3990mm(Exact design depend on the final design)

Tare weight :About 7500KG-15000KG

Total Volume(m3): 30-68m3

Tank Body Material :5mm or 6mm/Q235 carbon steel

End Plate: 5mm or 6mm/Q235 carbon steel

Diesel Engine: WEICHAI, Tianhe 4100/4102 or other brand

Compressor :BOHAI 10m3/12m3 or other brands

Manhole Cover: Carbon steel,500mm

Discharging Valve :Diameter is 3 or 4 inch

Discharging Pipe :Discharging Pipe

CatWalk :With(Common model or special design)

Chassis

Main Beams :Welding Design, Q345 carbon steel

Axle: 2/3axles,12T/13T/16T, BPW/FUWA/HUA JING brand

Landing Gear: JostD200T or China brand 28T

King pin :Jost2.00 or 3.5-inch bolt-in kingpin

Suspension: Mechanical suspension/Germany or America type/Air Suspension

Leaf Spring: 90(W)mm*13(Thickness)mm*10 Layer or 100mm*12mm*12

Pneumatic Braking System: WABCO RE 6 relay valve;T30/30+30 Spring brake chamber;45L air tanks

Rim: 9.00-22.5/8.00-20/8.5-20 China brand

Tire :12R22.5/315 80R22.5/11.00R20/12.00R20,Brand can be chosen

ABS: Optional

Painting :Complete Chassis sandblasting to clean rust,1 coat of anticorrosive :prime,2 coats of final paint

Accessories: One standard toolbox
