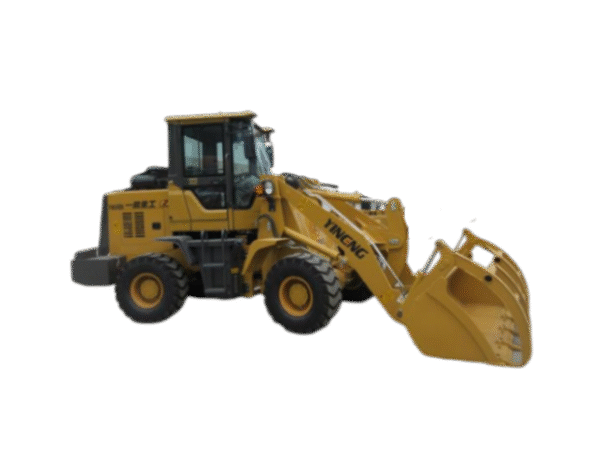

Agricultural Machinery Wheel Loader Log Grapple Wood Grass Fork Grass Fork Loader

Adopt Yunnei cylinder diesel engine, higher power. Single stage three-element torque converter, power shift transmission, simple structure and reliable performance. Load sensing fully hydraulic steering system, easy and flexible operation. Double sealed taper hydraulic pipeline joints, avoiding oil leakage; Air over hydraulic disks on four wheel brakes;

Category:
Tags: ,

Agricultural Machinery Wheel Loader Log Grapple Wood Grass Fork Grass Fork Loader

We supply Grasping Grass Machine,Grain Piler,Grain Loader,wood grapple loader.

1.Grasping Grass Machine Adopt Yunnei cylinder diesel engine, higher power.
2.Single stage three-element torque converter, power shift transmission, simple structure and reliable performance
3.Load sensing fully hydraulic steering system, easy and flexible operation.
4.Double sealed taper hydraulic pipeline joints, avoiding oil leakage;
5.Air over hydraulic disks on four wheel brakes;
6.Bucket articulated points take sealed, lubricated, dust-proof layers, which owns good durability.
7.The engine and cabin are connected with chassis by shock absorbers, greatly reducing the noise of the loader.

FORKLIFT

Item Specification
Rated load 1000Kg
Dumping height 3000mm
Dumping reach 1300mm
Wheel base 2370mm
Wheel tread 1520mm
Min. turning radius
(outside of the tyre)
4870mm
Max. speed 24Km/h
Rated power 55KW/2400rpm
Tyre 20.5/70-16
Max opening diameter 1650mm
Min close diameter 600mm
Gripper width 1400mm
Overall dimensions 6120*1860*2700mm
Operating weight 4100Kg
