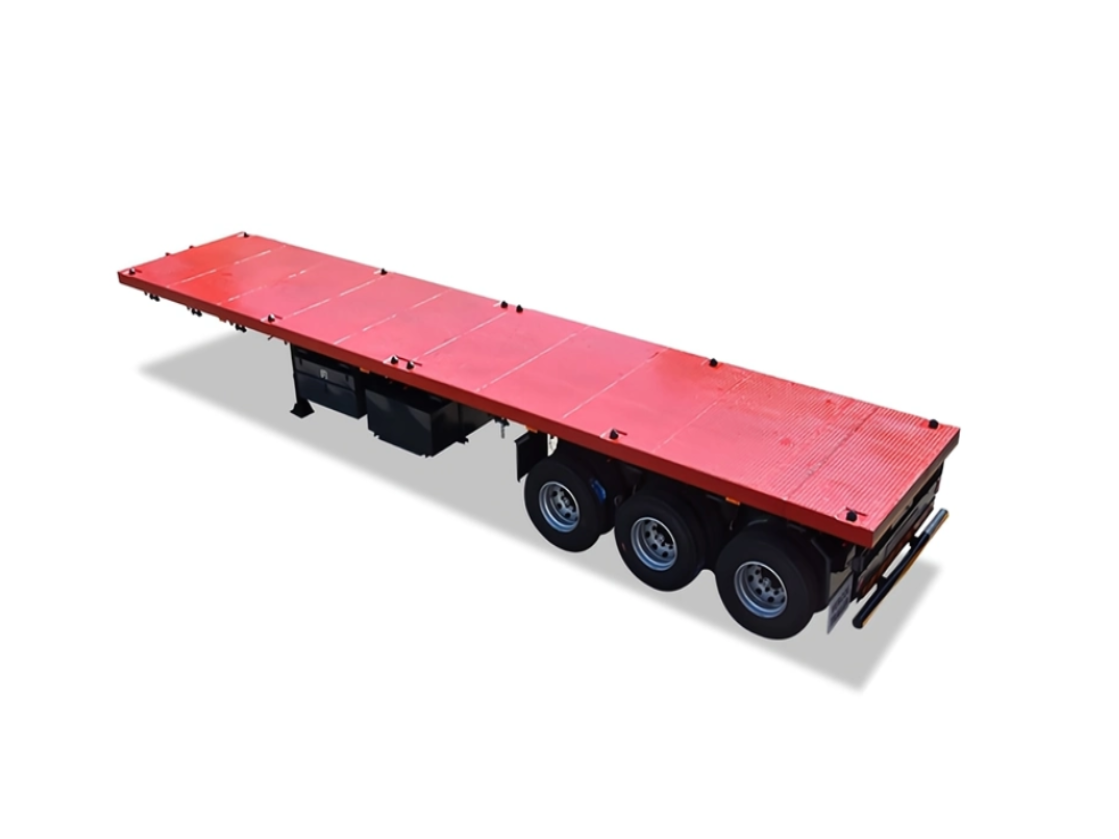

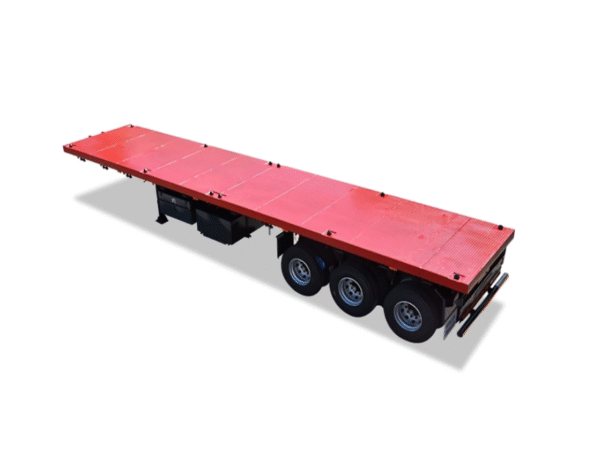

40ft Container Flatbed Semi Trailer

Container Flatbed Semi Trailer, also known as a Flatbed Trailer or a Container Trailer, is an unenclosed semi-trailer commonly used for transporting large and heavy cargo. The trailer consists of a tractor unit, a flat platform, and a chassis. The platform has no sides or roof, making it easy to load and unload cargo.

The main advantage of a Flatbed Trailer is its flexibility and convenience for loading and unloading cargo. Without any sides or roof restrictions, cargo can be loaded onto and unloaded from the trailer from any direction, making it an ideal choice for transporting large and irregularly shaped goods such as steel plates, pipes, timber, and more.

Additionally, a Flatbed Trailer can be equipped with multiple container holders, making it suitable for transporting standard 20 and 40-foot containers, which makes it a common transport tool for international shipping.

However, due to the lack of sides or roof protection, cargo on a Flatbed Trailer requires higher standards for securing and fastening to ensure that the goods are not damaged or involved in an accident during transportation.

Model: 40 ft flatbed trailer for sale

Dimension(mm): 12500x2500x1550mm

Loading capacity(ton): ≤60T

Axles: Tri axle flatbed trailer

Tire: 12 units, 12.00R22.5 or 315/80R22.5

Rim: 9.00-22.5 or 9.75-22.5

Suspension: Air suspension(China brand or BPW brand)

King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)

Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)

Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel

Side Beam: 16mm or 18mm steel channel (material: Q235 steel)

Platform: 3mm-thick checkered plate

Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank

Twist Locks: 4,8,12 sets (lifting or screw type)

Valve: WABCO valve (specially intended for oversea market)

ABS: Optional

Light: LED light (specially intended for oversea market)

Voltage: 24V

Socket(Receptacle): 7-pin Socket (for 7 wire harness)

Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)

Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats
