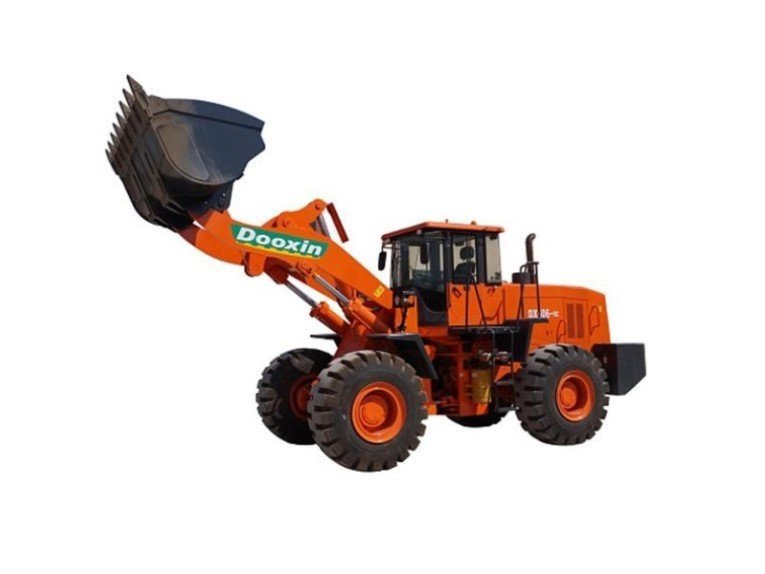

This Chinese loaders bucket capacity is 4 Cubic Meter.The 4 Cubic Meter Bucket Wheel Loader is a heavy equipment machine designed for efficient loading and unloading operations in construction, mining, and industrial sites. The machine is equipped with a powerful engine and hydraulic system, providing excellent performance and high loading capacity. The wheel loader also has a comfortable cabin with excellent visibility, ergonomic controls, and safety features to ensure the operator’s comfort and safety.
Extremely dependable
Use of a detachable sealing ring with a wheel loader patent that is water- and dust-proof, requires no maintenance, and has great durability Adoption of a cold-pressed steel pipe joint with an IOS 6162 O-ring and groove that reduces dribbling by 80%;Electrical wiring harness uses AVSS thin skin wire, which has a watertight connector that boosts reliability by 100% and extends service life;
Substantial bearing
front and back frames with fork structures that have good structural strength and stability;Design for the H-type bucket is improved, preventing bucket cracking, extending service life by 50%, and increasing loading capacity by 20%;
High level of safety
Flame-retardant materials and EU-standard glass are used inside, making the design safer.
| perating mass | 20400kg |
| Engine | WEICHAI Brand |
| Rated power | 175kw |
| Bucket capacity | 4-5m3 |
| Rated loading capacity | 6T |
| Forward/reverse gear 1 | 6.1km/h |
| Forward/reverse gear 2 | 10.9km/h |
| Forward/reverse gear 3 | 22km/h |
| Forward gear 4 | 38km/h |
| Tractive capacity | 173KN |
| Turning angle | 35o |
| Turning radius | 7470mm |
| Maximum breakout force | 175KN |
| Total length | 8820mm |
| Total width | 3128mm |
| Total height | 3465mm |
| Dumping height | 3330mm |
| Dumping distance | 1330mm |
| Gearbox | ZF |
| Gears | Front 3 rear 4 |
| Fuel tank capacity | 340L |
| Hydraulic tank capacity | 305L |
| Ascending time | 6.5s |
| Total time of bucket movement | 10.5s |
| Tyre | 23.5-25-20PR |
