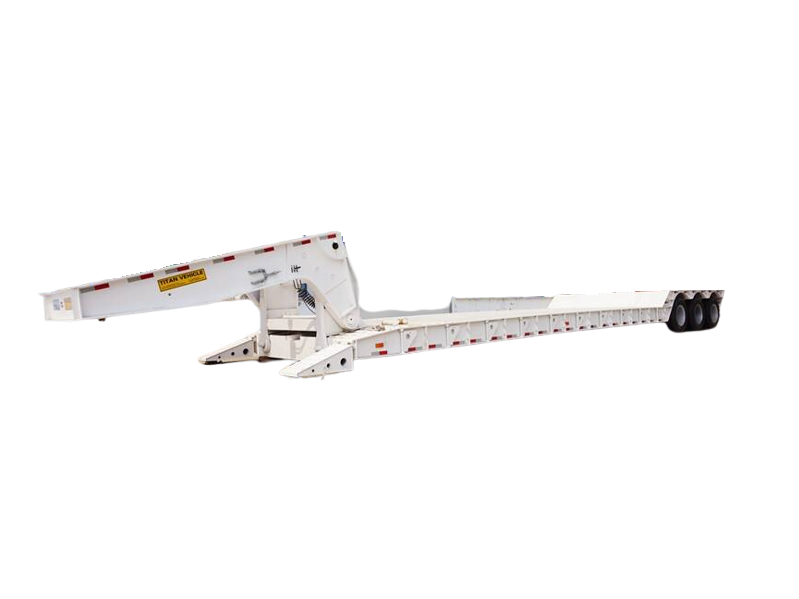

A 4 Axle 160 ton Low Bed Trailer/4 axle low bed trailer is a heavy-duty trailer designed for transporting extremely large and heavy equipment, such as construction machinery, industrial equipment, and vehicles. What sets this trailer apart from other low bed trailers on the internet is its high weight capacity of 160 tons and its four axles.
The trailer features a lowbed design, allowing for taller loads to be transported without exceeding the maximum height limit. The lowbed design also helps to reduce the center of gravity of the load, providing better stability during transportation.
The 4 Axle 160 ton Low Bed Trailer has a robust and durable construction with a reinforced steel frame, designed to withstand the weight and impact of heavy loads. It also features four axles, providing more support for the weight of the cargo and improving overall stability during transportation.
The trailer also features air suspension and hydraulic ramps, making it easier to load and unload heavy equipment. The hydraulic system provides a smooth and controlled lifting and lowering of the ramps, minimizing the risk of damage to the equipment being transported.
Overall, the 4 Axle 160 ton Low Bed Trailer is a heavy-duty trailer with a high weight capacity and four axles for improved support and stability. Its lowbed design and hydraulic ramps make it ideal for transporting large and heavy equipment, providing a safe and reliable transportation solution for businesses in need of heavy hauling services.
SPECIFICATIONS
Loading Capacity: 160-200 ton
Axles: 4 axles
Suspension: Mechanical, Airbag suspension (China brand or BPW brand)
Spring Leaf: 90 (W) mmx13 (Thickness) mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)
King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)
Landing Gear: JOST brand D200T or Chinese brand 28tons (double-speed)
Platform: 3mm-5mm checkered plate
Trailer Sides: 600-2000mm, or box type sides
Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank
Twist Locks: 4,8,12 sets (lifting or screw type)
Valve: WABCO valve (specially intended for oversea market)
ABS: Optional
Light: LED light (specially intended for oversea market)
Voltage: 24V
Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats
