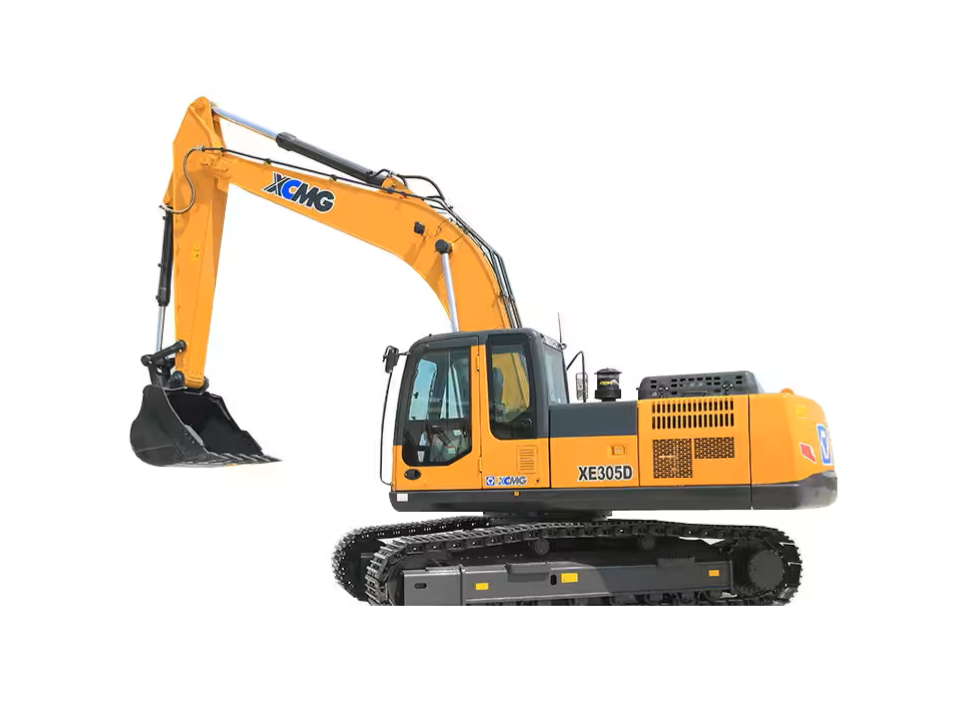

30 ton XCMG Crawler Hydraulic Excavator XE305D
Cummins three stage 169kW high-power engine is more fuel savin.
New Japan Kawasaki main pump can ensure high efficiency and reduced leakage.
Efficiency main valve increases overflow pressure and reduces pressure loss.
Smart matching technology ensures higher operating efficiency and lower fuel consumption.
1. Multiple applications
Variety of boom, stick and bucket matching to maximize utilization in different conditions.
Multi-functional intelligent work tool control system, can meet different operating requirements such as digging, breaking and dismanting.
The plateau mode can easily cope with the high-altitude operating environment.
2.Comfortable operating experience
Air Conditioner and Heator ensure the appropriate temperature.
Silicone rubber shock absorber is adopted in the cab.
Air-suspending seat equipped with electric heating function.
Integrated control panel and large display screen provide multiple information.
ROPS and FOPS Cab can improve cab safety.
Also Privide XCMG Spare Parts
| Model | Unit | XE305D | |
| Operating weight | Kg | 32500 | |
| Bucket capacity | m³ | 1.27-1.6 | |
| Engine | Model engine | / | QSB7 |
| Injection | / | √ | |
| Four strokes | / | √ | |
| Water cooling | / | √ | |
| Turbo-charging | / | √ | |
| No. of cylinders | / | 6 | |
| Rated power/speed | kw/rpm | 169/2050 | |
| Maximum torque/speed | N.m/rpm | 895/1250 | |
| Displacement | L | 6.7 | |
| Main performance | Travel speed | km/h | 5.2/3.1 |
| Swing speed | r/min | 9.8 | |
| Gradeability | ° | 35 | |
| Ground pressure | kPa | 56.4 | |
| Bucket digging force | kN | 198 | |
| Arm digging force | kN | 138 | |
| Maximum tractive force | kN | 252 | |
| Hydraulic system | Rated flow of main pump | L/min | 2×259 |
| Travel system pressure | MPa | 34.3 | |
| Swing system pressure | MPa | 30 | |
| Pilot system pressure | MPa | 3.9 | |
| Oil Capacity | Fuel tank capacity | L | 520 |
| Hydraulic tank capacity | L | 270 | |
| Engine oil capacity | L | 20 | |
| Appearance size | Overall length | mm | 10645 |
| Overall width | mm | 3190 | |
| Overall height | mm | 3410 | |
| Width of platform | mm | 3050 | |
| Total width of chassis | mm | 3190 | |
| Track shoe width | mm | 600 | |
| Wheel base of crawler | mm | 4028 | |
| Track gauge | mm | 2590 | |
| Counterweight clearance | mm | 1198 | |
| Min. ground clearance | mm | 538 | |
| Working range | Max. digging height | mm | 10146 |
| Max. dumping height | mm | 7180 | |
| Max. digging depth | mm | 7200 | |
| Max. vertical wall digging depth | mm | 5190 | |
| Max. digging radius | mm | 10665 | |
| Min. swing radius | mm | 3076 | |
| Standard | Length of boom | mm | 6200 |
| Length of arm | mm | 3110 | |
| Bucket capacity | m³ | 1.4 | |
