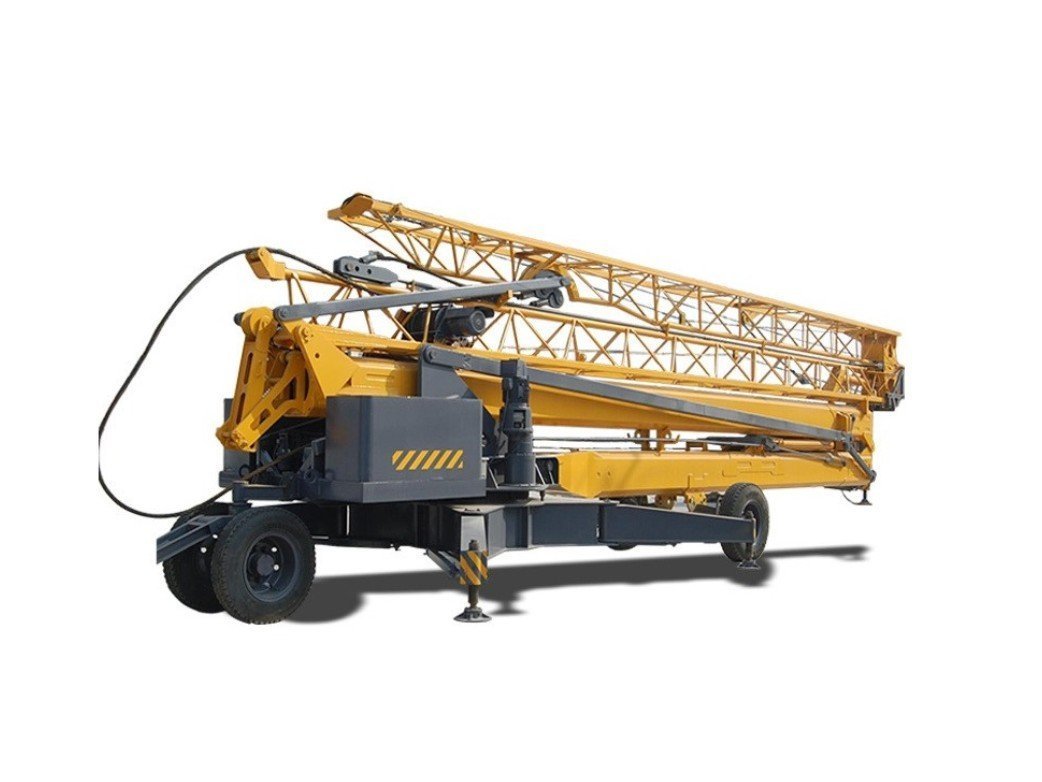

The 3 ton Construction Mini Tower Crane for sale is a compact and versatile crane designed for small to medium-sized construction projects. With a maximum lifting capacity of 3 tons and a maximum jib length of 27 meters, this crane can easily handle a variety of loads. Its compact size and easy maneuverability make it ideal for use in urban areas or on job sites with limited access. The crane can be easily assembled and disassembled, and its simple operation and maintenance make it a popular choice for contractors and construction companies.
JFYT2527-30 Main technical parameters table
| Category | Item | Units | Parameters | |
| Outline Dimensions
Parameters |
Overall length | mm | 15500 | |
| Overall width | mm | 2300 | ||
| Overall height | mm | 3700 | ||
| Axle base | mm | 6850 | ||
| Front tread | mm | 800 | ||
| Rear axle | mm | 1950 | ||
| Weight
Parameters |
Dead weight in travel state | Kg | About 20000 | |
| Axle load | Front axle | Kg | 11000 | |
| Rear axle | Kg | 9000 | ||
| Travel parameters | Travel speed | Max. travel speed | Km/h | 15 |
| Turning radius | Min. Turning radius | m | 18 | |
| Min. ground clearance | mm | 300 | ||
| Outrigger span in working state | m | 4.2X4.2 | ||
| Turning radius at swing table tail | m | 2.7 | ||
| Performance parameter | Max. lifting height | m | 25 | |
| Max. lifting capacity | t | 3 | ||
| Max. working radius | m | 27 | ||
| Min. working radius | m | 6 | ||
| Lifting speed | m/min. | 8.5-1.7 | ||
| Lifting motor power | kw | 7.5 | ||
| Swing speed | rpm | 0.6 | ||
| Swing motor power | kw | 2.2 | ||
| Luffing speed | m/min. | 14-28 | ||
| Luffing motor power | kw | 3 | ||
| Erecting time | min. | 10 | ||
| Folding time | min. | 8 | ||
| Hydraulic system working pressure | MPa | 28 | ||
| Oil tank capacity | L | 240 | ||
| Hydraulic station electric power | KW | 5 | ||
JFYT2527-30 Total rated lifting load
| Radius (m) | 10 | 12 | 15 | 27 |
| Hoisting weight(Kg) | 3000 | 2000 | 1500 | 1200 |
