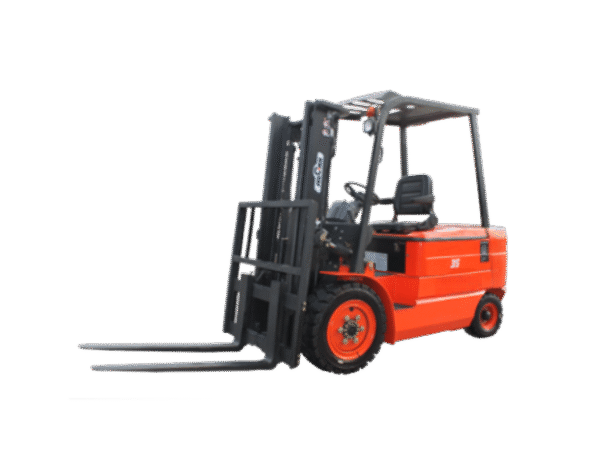

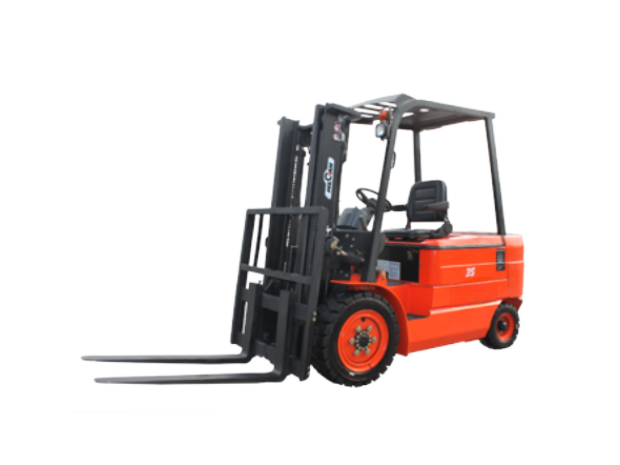

3.5 tonne electric forklift Model is CPD35J.
3.5 ton forklift weight is 5160Kg.Electric forklift truck have High safety and stability.
The cab of forklift truck is designed to meet the comfort of operators to the greatest extent.According to the SIP requirements of European standard ensip EN-ISO 5353.
Multi function LCD digital control instrument has running time display, fault code display, battery display, battery power display, low voltage warning flashing;
Hand brake display and running state display can quickly and accurately locate the vehicle condition and find the bad condition of the vehicle at any time;
Intelligent buffer system for lowering of gantry oil cylinder.
| General | 1 | Model | CPD35J |
| 2 | Rated capacity | 3500kg | |
| 3 | Load center | 500mm | |
| 4 | Power type | Battery | |
| Dimensions | 5 | Lifting height | 3000mm |
| 6 | Free lifting height | 110mm | |
| 7 | Min. turning radius | 2500mm | |
| 8 | Overall length (including fork) | 4040mm | |
| 9 | Overall width | 1240mm | |
| 10 | Overall height (mast lowered) | 2200mm | |
| 11 | Overall height (mast raised) | 4260mm | |
| 12 | Overall height (overhead guard) | 2300mm | |
| 13 | Fork length | 1220mm | |
| 14 | Fork width | 125mm | |
| 15 | Fork thickness | 45mm | |
| Performance | 16 | Max driving speed (with/without load) | 12.4/13.8km/h |
| 17 | Max lifting speed (with load) | 275mm/s | |
| 18 | Max traction (with load) | 17kn | |
| 19 | Gradeability (with load) | 12% | |
| 20 | Tilting angles (forward/backward) | 6/12° | |
| 21 | Total weight | 5160kg | |
| Motor | 22 | Traction Motor | JXQ-16.6 |
| 23 | Lifting Motor | XQD-13-3S | |
| Battery | 24 | Battery Type | 40-DA-500 |
| 25 | Battery Voltage/capacity | 80/500v/ah | |
| Wheel | 26 | Front overhang | 465mm |
| 27 | Wheel base | 1685mm | |
| 28 | Front tread | 1010mm | |
| 29 | Rear tread | 975mm | |
| 30 | Front tire | 28*9-15 | |
| 31 | Rear tire | 5.00-8 |
