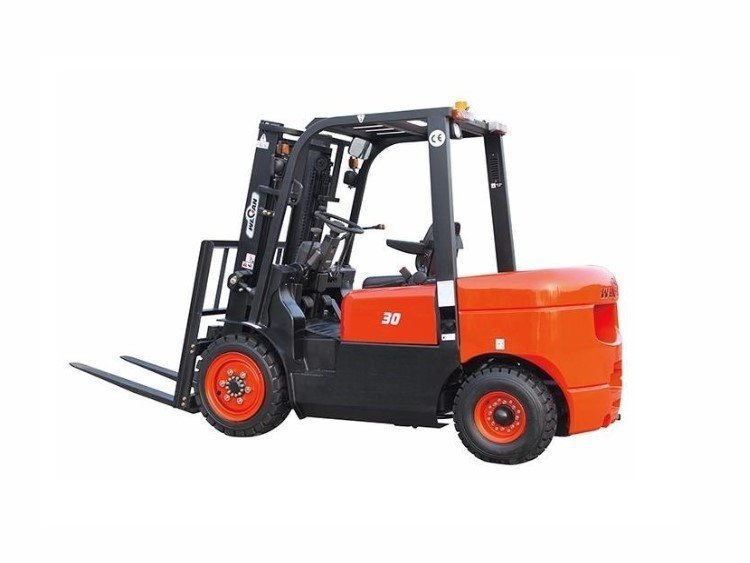

3.0Ton Diesel Forklift Truck For Sale/small forklift truck Specifications
| General | 1 | Model | CPCD30FR | |
| 2 | Rated capacity | kg | 3000 | |
| 3 | Load center | mm | 500 | |
| 4 | Power type | Diesel | ||
| 5 | Transmission | Hydraulic/Mechanical | ||
| Dimensions | 6 | Lifting height | mm | 3000 |
| 7 | Free lifting height | mm | 80 | |
| 8 | Turning radius | mm | 2500 | |
| 9 | Overall length | mm | 3800 | |
| 10 | Overall width | mm | 1230 | |
| 11 | Overall height (mast lowered) |
mm | 2095 | |
| 12 | Overall height (mast raised) |
mm | 4080 | |
| 13 | Overall height (overhead guard) |
mm | 2110 | |
| 14 | Fork length | mm | 1220 | |
| 15 | Fork width | mm | 125 | |
| 16 | Fork thickness | mm | 45 | |
| Performance | 17 | Max. driving speed (with/without load) |
km/h | 18/20 |
| 18 | Max. lifting speed (with load) |
mm/s | 400 | |
| 19 | Max. traction (with/without load) |
kn | 15.5/10.5 | |
| 20 | Gradeability (with/without load) |
% | 15/20 | |
| 21 | Tilting angles (forward/backward) |
° | 6/12 | |
| 22 | Service weight | kg | 4320 | |
| Engine | 23 | Engine model | 490BPG engine | |
| 24 | Power | kw | 39 | |
| 25 | Rated speed | rpm | 2650 | |
| 26 | Displacement | L | 2.67 | |
| 27 | No. of cylinder | 4 | ||
| Wheel | 28 | Front overhang | mm | 465 |
| 29 | Wheel base | mm | 1700 | |
| 30 | Front tread | mm | 1000 | |
| 31 | Rear tread | mm | 970 | |
| 32 | Front tire | 28×9-15 | ||
| 33 | Rear tire | 6.50-10 |
Product Features:
1, Standard lifting height: 3000mm with wide view mast
2, Optional 2-stage 3300mm mast, 2-stage 3500mm mast, 2-stage 4000mm mast, 2-stage 4500mm mast, 2-stage 5000mm mast, 3-stage 4500mm mast, 3-stage 4800mmm mast, 3-stage 5000mm mast, 3-stage 5500mm mast, 3-stage 6000mm mast, 3-stage 7300mm mast, 3-stage 8000mm mast.
3, Load center: 500mm
4, Equipped with Xinchai/Quanchai engine or imported Isuzu/Yanmar/Mitsubishi/engine
5, The optimized design of the intake and exhaust system, low intake window and closed foot plate, which reduce the driver’s ear noise by 3dB.
6, Comfortable driving space. Large operating space, superior ergonomic design, comfortable operation, convenient and efficient.
7, More open reversing view. The forklift equiped with exhaust flame arrestor and mars eliminator system, which ensures the safety operation in dangerous environment.
