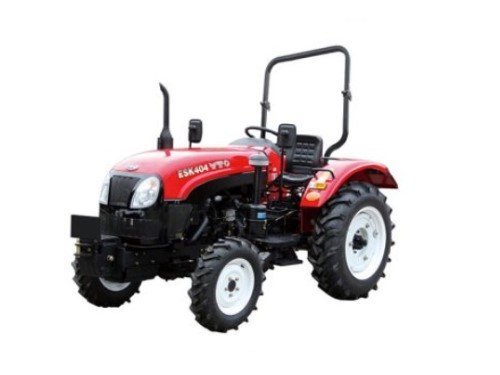

YTO 24-35HP Wheeled Tractor
Versatile Compact Power for Orchards, Greenhouses, and Small Farms
As a trusted exporter of high-performance agricultural equipment, ARCHER offers the YTO 24-35HP series wheeled tractors. Known for their compact structure and powerful torque, these tractors are specifically designed for high-maneuverability tasks. Whether for narrow vineyard rows or general multi-purpose farming, YTO’s engineering ensures low fuel consumption and exceptional reliability in the field.
Technical Highlights
Engineered for durability, our 24-35HP range features the following core specifications:
| Feature | Specifications | Benefit |
|---|---|---|
| Power Range | 24HP / 30HP / 35HP | High torque reserve |
| Drive Type | 4×2 (2WD) / 4×4 (4WD) Optional | Superior traction on all terrain |
| Transmission | (4+1)×2 Gearbox | Smooth shifting & precise speed |
| PTO Speed | 540 / 720 rpm | Compatible with various implements |
| Hydraulics | Semi-independent Lifter | High lifting capacity for plows |
Frequently Asked Questions
Does ARCHER provide spare parts for YTO tractors?
Yes. Through our dedicated platform www.archerparts.com, we provide 100% genuine YTO spare parts, including engine components, filters, and transmission gears, ensuring long-term maintenance support.
Is the 24-35HP model suitable for narrow spaces?
Absolutely. This compact series is specifically engineered for greenhouses, orchards, and gardens where large machinery cannot operate. It features a small turning radius for maximum efficiency.
How is the tractor delivered?
For the 24-35HP range, we usually ship via Container (FCL) or LCL with professional iron frame packing to ensure the machine arrives in perfect condition at your destination.
Get Your YTO Tractor Quote Today
Reliable Power. Professional Support. Global Shipping.
Portals: www.archermach.com | www.archerparts.com
24-35HP Wheeled YTO Tractor Specifications
| Model | YTO-240P | YTO-300P | YTO-350P | YTO-SK244 |
| Diesel engine | ||||
| Model | ZH1125E2 | ZH1130E2 | ZH1135E2 | YD385T |
| Type | Single cylinder, horizontal, water cooled, four stroke | Double cylinder, vertical, water cooled, four stroke | ||
| Displacement (L) | 1.47 | 1.59 | 1.93 | 1.53 |
| Rated power/speed(Kw)/(r/min) | 17.7/2200 | 22.1/2200 | 25.7/2300 | 17.7/2350 |
| Max. torque (N.m)/speed (r/min) | 78.61/1760 | 98.3/1760 | 116/1760 | 83/1700 |
| Bore x stroke (mm) | 125 X 120 | 130 X 120 | 135 X 135 | 85×90 |
| Transmission | ||||
| Gear shift, forward/backward | 8/2 | 8/2 | 8/2 | 8/2 |
| Speed range (Km/h), forward/backward | 3.17-32.7/4.2-11.8 | 3.17-32.7/4.2-11.8 | 3.17-32.7/4.2-11.8 | 2.07-31.54/2.72-12.59 |
| PTO power (Kw) | 15.05 | 18.79 | 21.85 | 15.05 |
| PTO rotation speed(r/min) | 540 | 540 | 540 | 540/1000 |
| Clutch | Single disc | Single disc | Single disc | Single action (Double action optional) |
| Implement | ||||
| Three-point linkage category | Rear three-point linkage 0 | Rear three-point linkage 0 | Rear three-point linkage 0 | Rear three-point suspension I |
| Tilling depth control mode | Floating adjustment | Floating adjustment | Floating adjustment | Height adjustment, position adjustment |
| Lifting force(KN) | 4 | 4 | 4 | 4 |
| Dimensions, mass, drive | ||||
| Drive type | 4×2 | 4×2 | 4×2 | 4×4 |
| Overall dimensions (LxWxH)(mm) | 2700*1250*1335 | 2700*1250*1335 | 2700*1250*1335 | 3453×1465×1835 |
| Wheelbase(mm) | 1400 | 1400 | 1400 | 1698 |
| Min. ground clearance(mm) | 320 | 320 | 320 | 260 |
| Min. operating mass(with safety stand)(Kg) | 1100 | 1120 | 1150 | 1450 |
| Tyre spec., front /rear | 5.0-16/9.5-24 | 5.0-16/9.5-24 | 5.0-16/9.5-24 | 6.0-16/9.5-24 |
| Wheel tread, front/rear | 900/1020 | 900/1020 | 900/1020 | 1190/1100-1300 |
| Steering | Mechanical | Hydraulic steering | ||
| Brake | Shoe, mechanical | – | ||
※ Specifications are subject to change without notice; the information in this brochure is for reference only, please refer to the actual product when purchasing.
