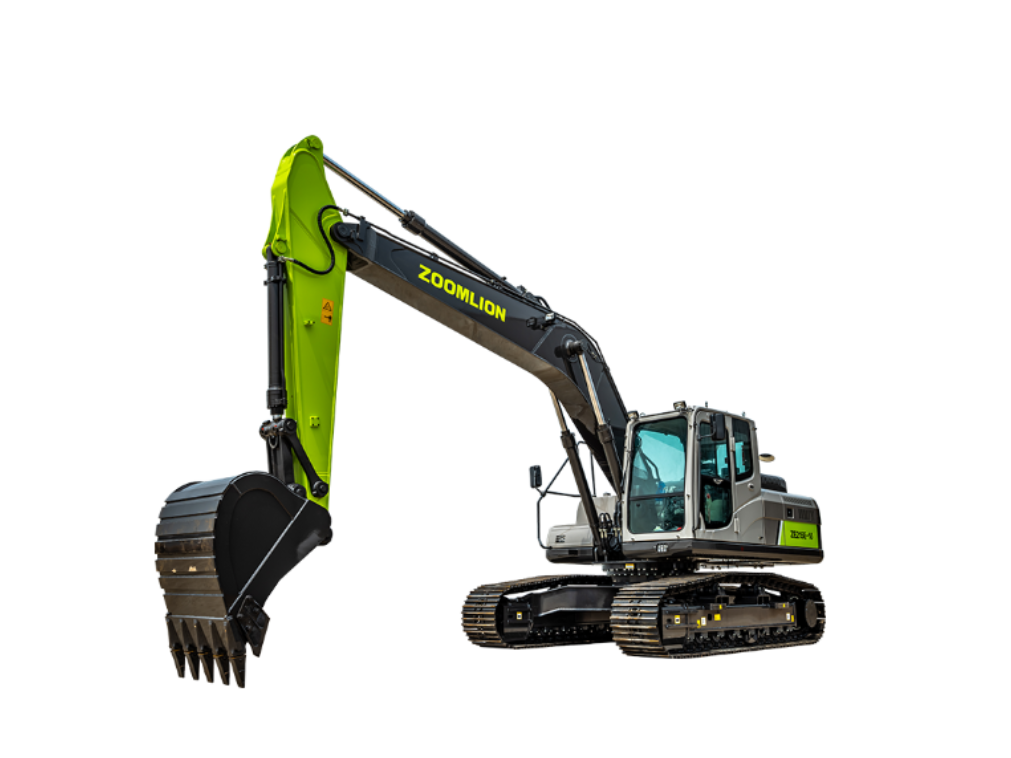

We are suppliers of zoomlion heavy industry,Experience unmatched engineering prowess with the 22-ton ZOOMLION Excavator ZE215E-10. This medium-sized excavator is designed to conquer diverse construction challenges. Its robust build and powerful hydraulic system make it the ultimate solution for all your earthmoving needs. Whether your project is large or small, rest assured in the reliability and exceptional performance of the ZOOMLION ZE215E. Elevate your construction endeavors with ZOOMLION’s trusted machinery today.
ZOOMLION ZE215E-10 Medium Excavator Specification
| Items | ZE215E-10 | ZE215E-10Pro | |
| Operating Weight | 21500 kg | 22100 kg | |
| Standard Capacity | 1.0 m3 | 1.1 m3 | |
| Slewing Speed | 10.5r/min | 11.5r/min | |
| Technical Data | Traveling Speed(high/low) | 5.1/3.3 km/h | 5.5/33 km/h |
| Max. Drawbar Pull | 210 kIM | 192 kN | |
| Digging Force of Bucket | 155 kN | 155 kN | |
| Digging Force of Stick | 115kll | 115kN | |
| Engine Manufacturer | CUMMINS | CUMMINS | |
| Engine Model | QSB7 | QSB7 | |
| Engine | Rated Power | 124 kW/2050 rpm | 124 kW/2050 rpm |
| Displacement | 6.7 L | 6.7 L | |
| Emission Standard | EU Stage IIIA | EU Stage IIIA | |
| Length | 9675 mm | 9675 mm | |
| Width | 2990 mm | 2990 mm | |
| Dimensions | Height | 3085 mm | 3085 mm |
| “fail Slewing Radius | 2940 mm | 2940 mm | |
| Track Gauge | 2200 mm | 2390 mm | |
| Length of frack On Ground | 3380 mm | 3460 mm | |
| Max. Digging Radius | 9870 mm | 9870 mm | |
| Max. Digging Reach | 9690 mm | 9690 mm | |
| Operating Range | Max. Digging Depth | 6580 mm | 6580 mm |
| Max. Digging Height | 9720 mm | 9720 mm | |
| Max. Dumping Height | 6895 mm | 6895 mm |
