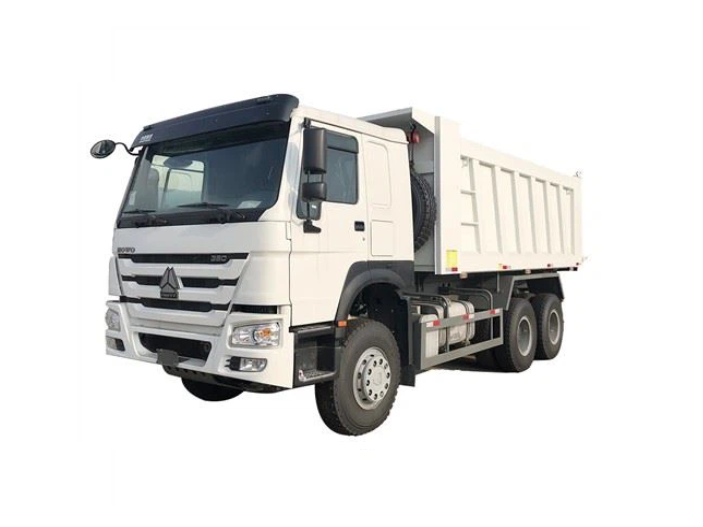

20 Cubic Meters SINOTRUK HOWO 10 Wheeler Dump truck Specification
Driving type | 6×4 (10 wheelers) | |||
Steering type | Left hand driving or right hand driving as customer’s need | |||
Engine Brand | SINOTRUK | |||
Engine Model | WD615.62/WD615.87/WD615.69/WD615.47/D12.420-20 | |||
Engine Emission | Euro II | |||
Engine Horse Power | 266hp/290hp/33hp/371hp/420hp | |||
Front axles | HF9, drum brakes, strong type for heavy loading using | |||
Rear axles | HC16, ratio:5.73, | |||
Tire | 12.00R20, 10+1 tires | |||
Carriage body | 15cube to 20cube as customer request | |||
Thickness of the body | Floor 8mm / Side 6mm | |||
Loading capacity | 20ton-30ton | |||
Lifting type | Middle lifting / Front lifting | |||
Maximum driving speed (km/h) | 75 | |||
Overall dimension | 8645*2550*3450mm | |||
Fuel tank | 300L/400L | |||
Brake system | Service brake:dual circuit compressed air brake Parking brake (emergency brake):spring energy,compressed air operating on rear wheels | |||
Clutch | SINOTRUK Φ430 diaphragm-spring clutch, hydraulically operating with air assistance | |||
Color | white, red, yellow, green, orange, as customer’s needed logo can be customized | |||
