Find 20 CBM Water Trucks For Sale,Contact Us
|

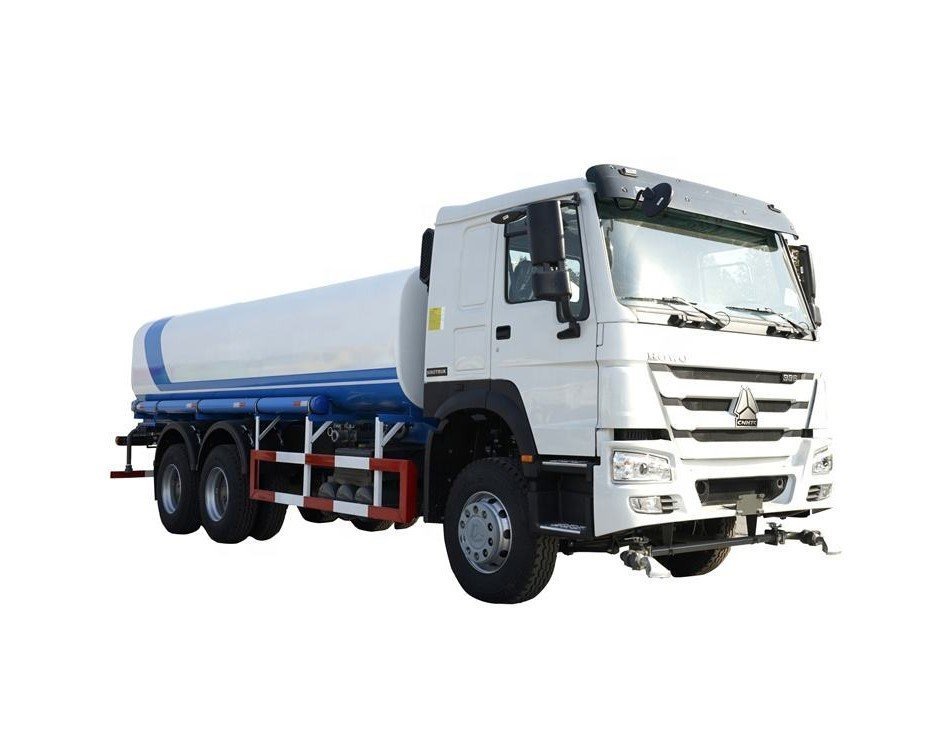

SINOTRUK 6X4 20CBM WATER SPRINKLER TRUCK
|
|||
|
Truck Brand
|
SINOTRUK—HOWO
|
||
|
Chassis No
|
ZZ1257N4647D1
|
||
|
Driving Type
|
Left Hand Driving
|
||
|
Dimension(Lx W xH)(unloaded)(mm)
|
9970×2550×3300
|
||
|
Tank Volume (mm)(Liter)
|
20000
|
||
|
Tanker body material
|
Q235B
|
||
|
Thickness of tanker end/body
|
6mm
|
||
|
Front Spray water
|
Duckbill type
|
||
|
Rear sprinkling
|
Cylinder type
|
||
|
Water cannon
|
with
|
||
|
Water absorption pipe(Inner steel )
|
3” 3 meters
|
||
|
Approaching angle/Departure angle(°)
|
20/10
|
||
|
Overhang(front/rear) (mm)
|
1375/2520
|
||
|
Wheel base (mm)
|
4575+1400
|
||
|
Max speed(km/h)
|
75
|
||
|
Curb weight(kg)
|
11605
|
||
|
Engine
|
Model
|
WD615.69
|
|
|
Fuel type
|
Diesel
|
||
|
Power, max(kw/rpm)
|
371HP
|
||
|
Emission
|
EURO II
|
||
|
Transmission
|
Model
|
HW19710
10 forward&2 reverse |
|
|
Brake system
|
Service brake
|
Dual circuit compressed air brake
|
|
|
Parking brake
|
spring energy, compressed air operating on rear wheels
|
||
|
Steering system
|
Model
|
8198 hydraulic steering with power assistance |
|
|
Front axle
|
HF9, 1* 9000kg, drum brake
|
||
|
Rear axle
|
HC16, 2*16000kg, drum brake
|
||
|
Tyre
|
315/80R22.5, 11 pcs (with one spare tire)
|
||
|
Electrical system
|
Battery
|
2X12V/165Ah
|
|
|
Alternator
|
28V-1500w
|
||
|
Starter
|
7.5Kw/24V
|
||
|
Cab
|
HOWO76 one sleeper, air conditioner, all-steel forward control,55ºhydraulically tiltable to the front,2- arm windscreen wiper
system with three speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers |
||
